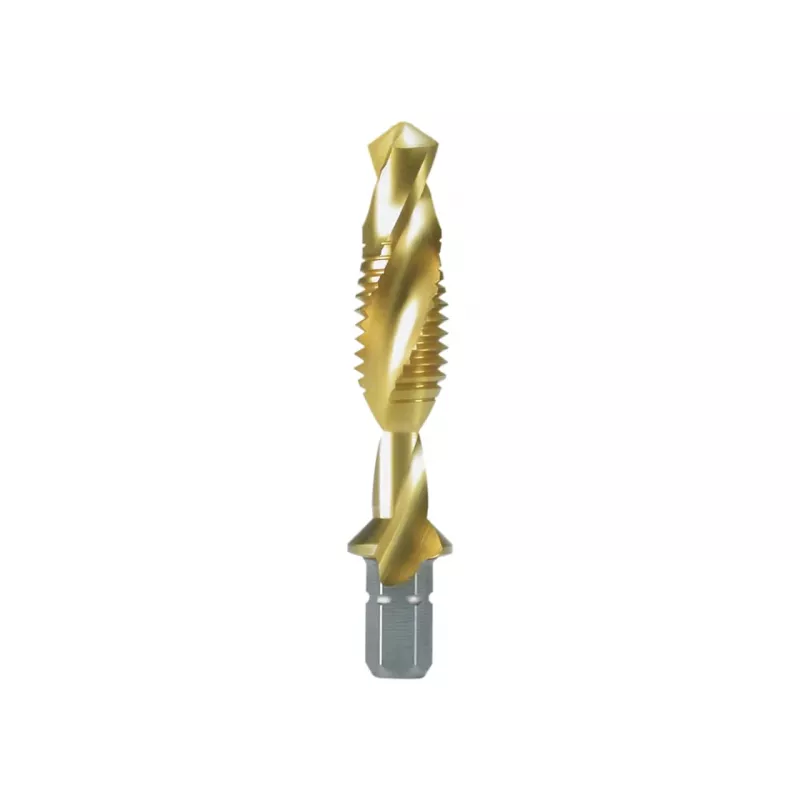

RUKO KGB-Bit-HSS-TiN-60°-M3x0,50mm-S

The RUKO KGB-Bit-HSS-TiN-60°-M3x0,50mm-S is a precision machine tap engineered for reliable threading in through holes. Its TiN coating and reinforced shank set it apart from standard taps, delivering enhanced durability and accuracy in demanding applications.

Highlights

• Metric ISO thread M3 with 0.50 mm pitch
• High-speed steel with titanium nitride coating for extended life
• Form B with 4-5 thread lead for through-hole threading
• Reinforced shank for stability in CNC and manual operations

In daily use

This tap is designed for efficient chip evacuation and consistent thread quality. The 60° cutting angle and right-hand direction ensure smooth operation, while the recommended core hole diameter of 2.5 mm simplifies preparation.

Full specifications

• Tool Type: Machine Tap
• Thread Type: Metric ISO Thread
• Nominal Diameter: M3
• Thread Pitch: 0.50 mm
• Material: High-Speed Steel (HSS)
• Coating: Titanium Nitride (TiN)
• Standard: DIN 371
• Form: B (4-5 thread lead)
• Application: Through Holes
• Thread Direction: Right-Hand
• Tolerance Class: ISO 2 (6H)
• Total Length (L1): 56 mm
• Thread Length (L2): 11 mm
• Shank Diameter (d2): 3.5 mm
• Square Drive (k): 2.7 mm
• Recommended Core Hole Diameter: 2.5 mm
• Number of Flutes: 3
• Shank Type: Reinforced Shank

Final note

Built for precision and longevity, the RUKO KGB-Bit-HSS-TiN-60°-M3x0,50mm-S is a dependable choice for professional threading tasks.
