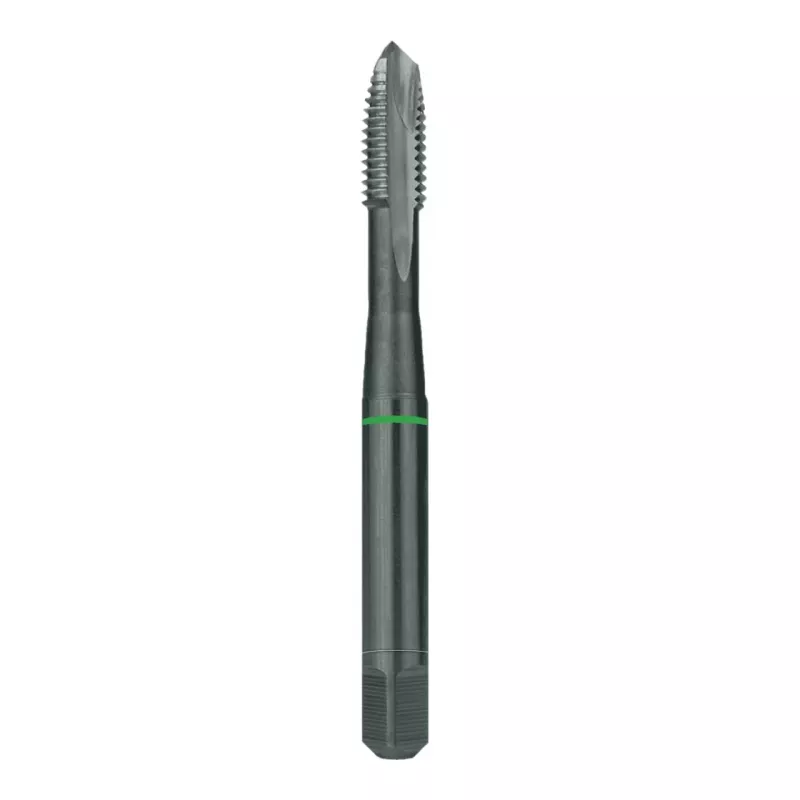

RUKO MGB-DIN371-HSSCo-vap.-M10x1,50mm maschio a macchina

RUKO's MGB-DIN371-HSSCo-vap.-M10x1,50mm machine tap is built for through-hole threading in tough materials. The HSSCo (cobalt high-speed steel) body with vaporized surface treatment holds its edge longer and reduces friction, making it a reliable choice for production runs in steel, stainless steel, cast iron, and non-ferrous metals.

Highlights

• DIN 371 machine tap with M10 x 1.50 mm metric coarse thread
• HSSCo (cobalt high-speed steel) for high wear resistance
• Vaporized (VAP) surface treatment for reduced friction and improved chip flow
• Form C point geometry with 2–3 threads lead for easy starting
• Straight flute design, 3 flutes, right-hand cutting
• ISO 2 (6H) tolerance class for standard thread fit

In daily use

The tap's 100 mm overall length and 20 mm thread length provide good reach for standard through-hole applications. The 7.0 mm shank diameter and 5.5 mm square drive fit common tap holders and wrenches. Use a suitable cutting fluid for best tool life.

Full specifications

• Standard: DIN 371
• Thread type: Metric coarse
• Nominal thread diameter: M10
• Thread pitch: 1.50 mm
• Material: HSSCo (high-speed steel with cobalt)
• Surface treatment: VAP (vaporized)
• Application: Through holes
• Tolerance class: ISO 2 (6H)
• Cutting direction: Right-hand
• Flute type: Straight flute
• Number of flutes: 3
• Point geometry: Form C (2–3 threads lead)
• Overall length (l1): 100 mm
• Thread length (l2): 20 mm
• Shank diameter (d2): 7.0 mm
• Square drive (k): 5.5 mm
• Recommended materials: Steel, stainless steel, cast iron, non-ferrous metals
• Tool type: Machine tap

Final note

For through-hole threading where tool life and thread quality matter, this RUKO tap delivers consistent performance.
