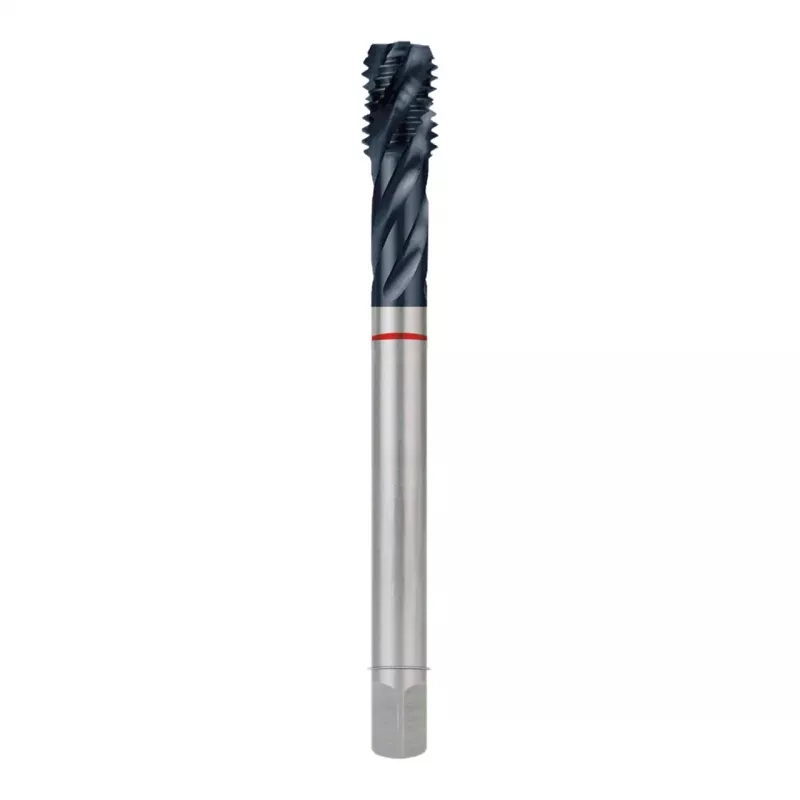

RUKO MGB-DIN376-HSSCo-TiAlN-60°-M12x1.7 maschio a macchina

The RUKO GMBH MGB-DIN376-HSSCo-TiAlN-60°-M12x1.7 machine tap stands out with its spiral point geometry and TiAlN coating, enabling efficient chip evacuation and extended tool life in through-hole threading operations. Built to DIN 376 standards, it delivers reliable performance in steel, stainless steel, and cast iron.

Highlights

• Spiral point (SpiP) flute geometry for through holes
• TiAlN coating for high wear resistance
• HSS-E Co material for enhanced toughness
• Metric coarse thread M12 with 1.75 mm pitch
• Reinforced shank for stability

In daily use

This tap is ideal for production environments where consistent thread quality and tool longevity are essential. The 60° thread angle and ISO 2 (6H) tolerance class ensure precise threads, while the right-hand cutting direction suits standard machining setups.

Full specifications

• Tool Type: Machine Tap
• Standard: DIN 376
• Material: HSS-E Co
• Coating: TiAlN
• Thread Size: M12
• Thread Pitch: 1.75 mm
• Thread Angle: 60°
• Application: Through Holes
• Tolerance Class: ISO 2 (6H)
• Shank Type: Reinforced Shank
• Overall Length: 110 mm
• Thread Length: 29 mm
• Shank Diameter: 9.0 mm
• Square Drive: 7.0 mm
• Cutting Direction: Right-hand
• Recommended Material Group: Steel, Stainless Steel, Cast Iron
• Manufacturer Series: Gühring 4007 Series

Final note

Engineered for precision and durability, the RUKO GMBH machine tap is a dependable choice for demanding threading tasks.
