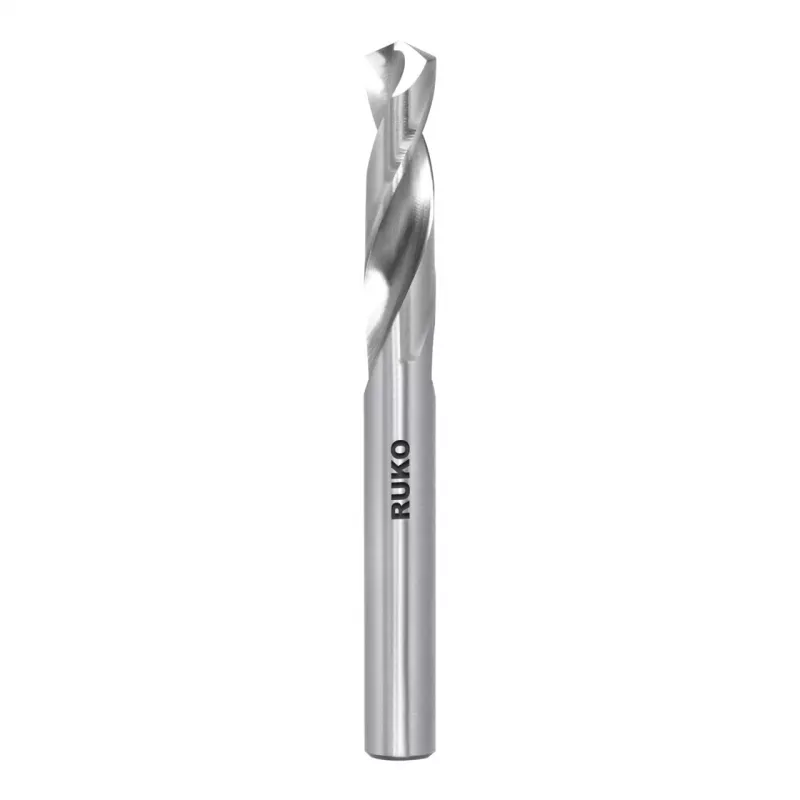

RUKO SPB-DIN1897-HSSCo-Ø3,2mm serie corta HSS-Co punta elicoidale

Precision-ground from solid HSS-Co with 5% cobalt, this short series twist drill bit delivers exceptional heat resistance and durability when drilling high-alloy steels, stainless steel, cast iron, bronze, and hard plastics.

Overview

Manufactured to DIN 1897 short series standards, this 3.2 mm drill bit features a bright finish, cylindrical shank, and a 135° split point for self-centering starts without a centre punch. The h8 tolerance ensures consistent hole quality, while the right-hand cutting direction suits standard drilling machines.

What stands out

• HSS-Co with 5% cobalt for high heat resistance and long tool life
• 135° split point eliminates walking and reduces thrust pressure
• Short series design for increased rigidity and accuracy
• Ground from solid for superior concentricity and edge retention

Technical details

• Drill Bit Type: Twist Drill Bit
• Standard: DIN 1897
• Series: Short Series
• Material: HSS-Co (High-Speed Steel with Cobalt)
• Cobalt Content: 5%
• Diameter: 3.2 mm
• Shank Type: Cylindrical (Parallel)
• Point Angle: 135°
• Point Type: Split Point (Self-centering)
• Total Length (l1): 65 mm
• Working Length (l2): 36 mm
• Surface Finish: Bright
• Application Materials: High-alloy steels, Stainless steel, Cast iron, Bronze, Hard plastics
• Manufacturing Process: Ground from solid
• Tolerance: h8
• Cutting Direction: Right-hand cut
• Packaging Quantity: 1 piece

Our verdict

An excellent choice for professionals needing a short, rigid drill bit for tough materials. The cobalt alloy and split point make it a reliable performer in demanding applications.
