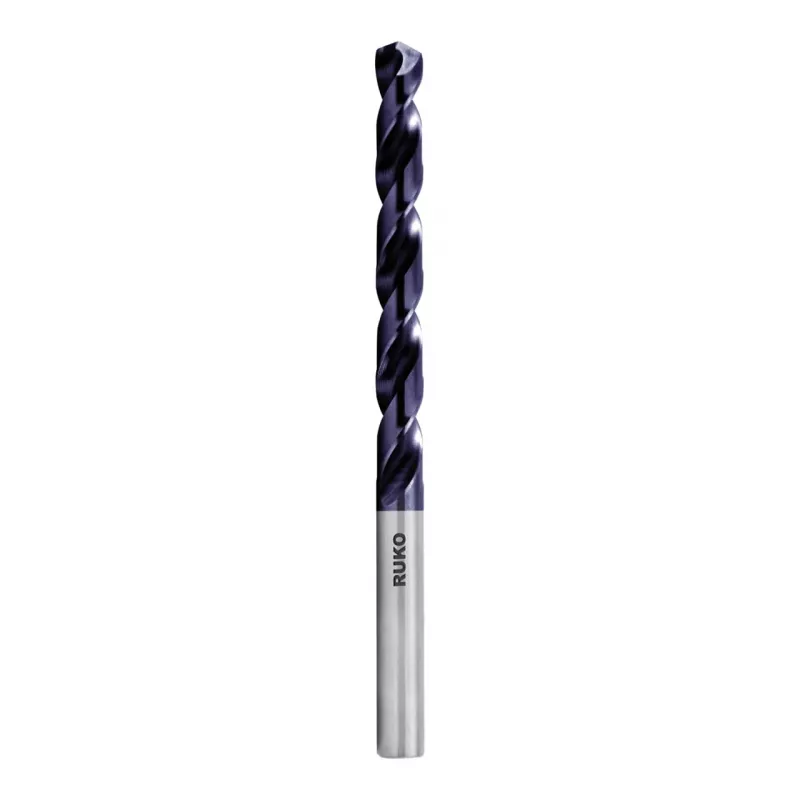

RUKO SPB-DIN338-HSSCo8-TiAlN-Ø8,1mm punta elicoidale

Twist drill bit with 8.1 mm diameter, engineered for high-performance drilling in demanding materials. The TiAlN coating combined with HSS-Co 8% cobalt steel delivers exceptional heat resistance up to 600°C and extended tool life.

Advantages

Split point geometry ensures precise centering and reduces thrust, while the 135° point angle provides excellent cutting performance. The TiAlN coating reduces friction and prevents built-up edge, making it ideal for stainless and acid-resistant steels.

Suitable for

• High-alloy steels
• Stainless steel
• Acid-resistant steels
• Cast iron
• Bronze
• Titanium alloys

Key specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: HSS-Co 8% (High-Speed Steel with 8% Cobalt)
• Coating: TiAlN (Titanium Aluminum Nitride)
• Diameter: 8.1 mm
• Shank type: Cylindrical
• Point angle: 135°
• Point type: Split point (cross-ground)
• Cutting direction: Right-hand cutting
• Tolerance: h8
• Flute length: 75 mm
• Overall length: 117 mm
• Manufacturing process: Ground from solid
• Heat resistance: Up to 600°C

Recommendations

For best results, use with cutting fluid and appropriate speeds for the material being drilled. Suitable for use in stationary drilling machines and powerful hand drills.
