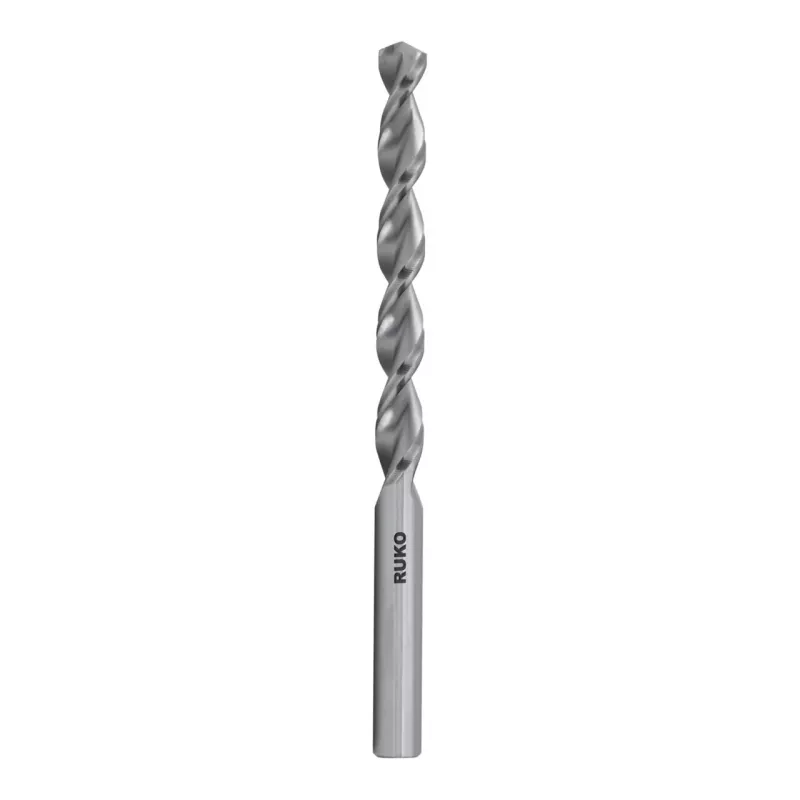

RUKO SPB-TL3000-7,5mm DIN338 punta elicoidale HSS-G

For machinists and metalworkers who need precise, clean holes in steel and cast iron, the RUKO SPB-TL3000 twist drill bit delivers reliable performance. Its 7.5 mm diameter and DIN 338 standard geometry make it a solid choice for general-purpose drilling on the bench or in the field.

Key specifications

• Drill bit type: Twist drill bit
• Material: High-speed steel (HSS)
• Manufacturing process: Ground
• Standard: DIN 338
• Diameter: 7.5 mm
• Total length: 109 mm
• Working length: 69 mm
• Shank type: Cylindrical
• Shank diameter: 7.5 mm
• Point angle: 118°
• Surface finish: Bright
• Cutting direction: Right-hand cutting
• Tolerance: h8
• Suitable materials: Alloyed and unalloyed steel, grey cast iron, malleable cast iron, non-ferrous metals, plastics, wood
• Flute type: Standard spiral flute
• Heat resistance: Up to approx. 400°C
• Packaging quantity: 1 piece

Why choose it

Ground from high-speed steel, this bit holds its edge longer than standard rolled bits and resists heat build-up during continuous drilling. The 118° point angle is a proven all-rounder that centers well and cuts efficiently in a wide range of metals.

Ideal use cases

• Drilling clearance and pilot holes in steel fabrications
• Maintenance and repair work on machinery and castings
• General workshop drilling in non-ferrous metals and plastics

Good to know

The bright finish reduces friction and helps clear chips from the flute, while the cylindrical shank fits standard drill chucks. With a working length of 69 mm, it reaches deep enough for most plate and profile work.
