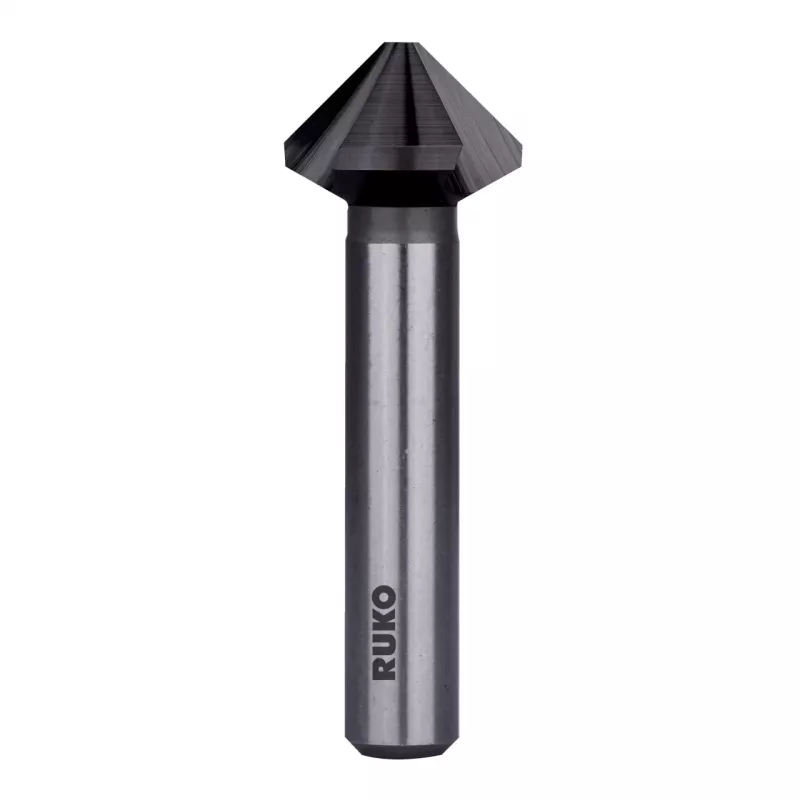

Svasatore conico RUKO KES-DIN335-HSS-TiAlN-90°-Ø37,0mm

This 90° countersink with a 37.0 mm cutting diameter is engineered for high-precision deburring, chamfering, and countersinking in industrial and professional applications. Its TiAlN coating provides exceptional heat resistance up to 800°C and a hardness of approximately 3000 HV, ensuring extended tool life even under demanding conditions.

Advantages

The HSS body with TiAlN coating offers superior wear resistance and thermal stability, reducing friction and preventing built-up edge. The 3-flute design with right-hand cutting delivers smooth, chatter-free performance in a wide range of materials.

Suitable for

• Steel
• Cast iron
• Non-ferrous metals
• Plastics

Key specifications

• Tool type: Countersink
• Standard: DIN 335 C
• Material: High-Speed Steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Cutting angle: 90°
• Cutting diameter: 37.0 mm
• Shank type: Cylindrical
• Shank diameter: 16 mm
• Overall length: 100 mm
• Number of flutes: 3
• Cutting direction: Right-hand
• Surface finish: Ground profile
• Tool holder compatibility: Drill chucks, collet chucks

Recommendations

For best results, use with rigid tool holders and appropriate cutting speeds for the workpiece material.
