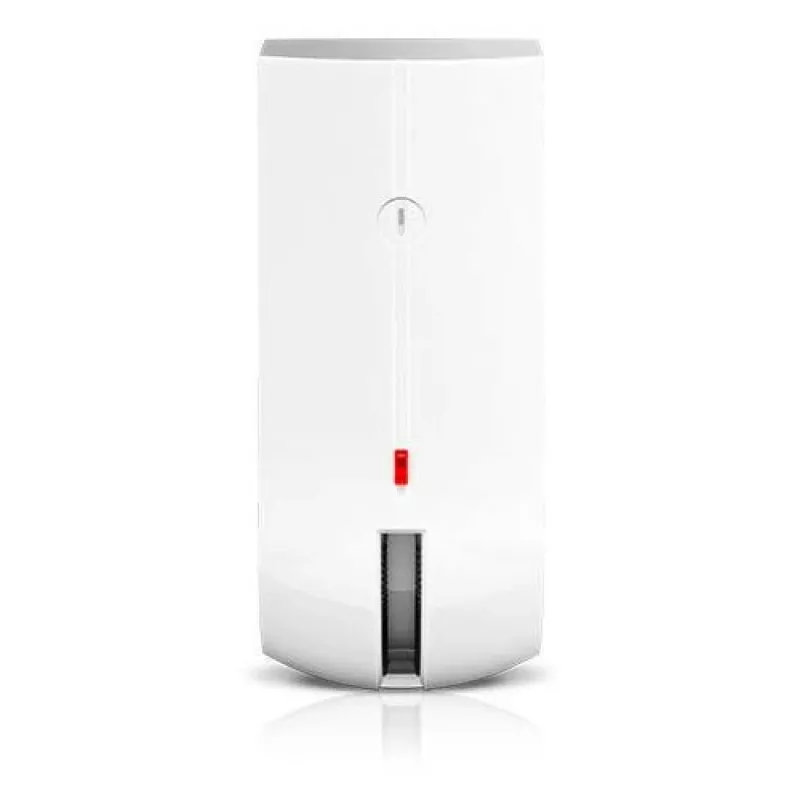

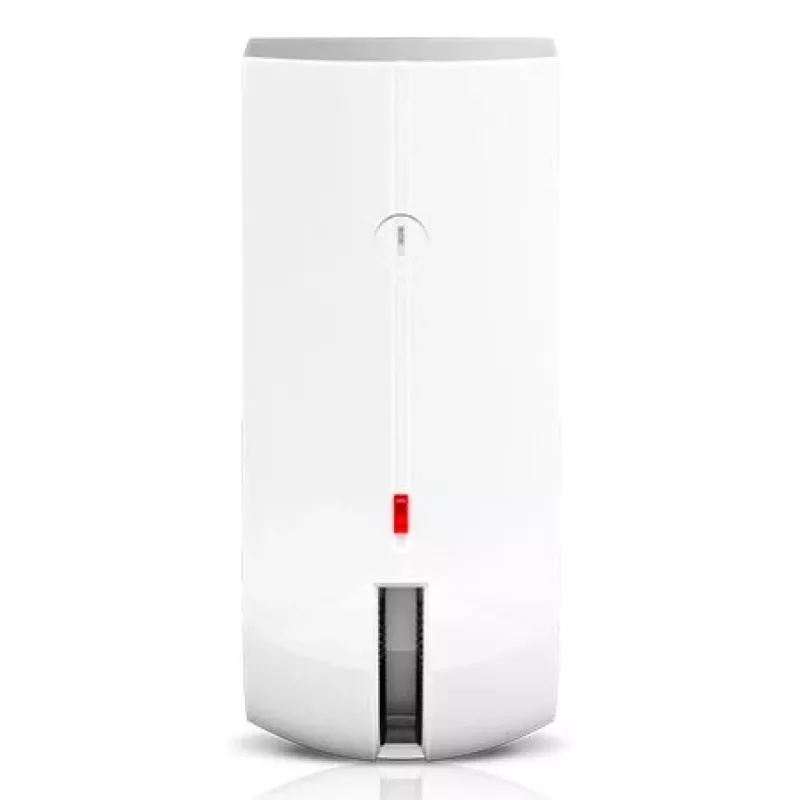

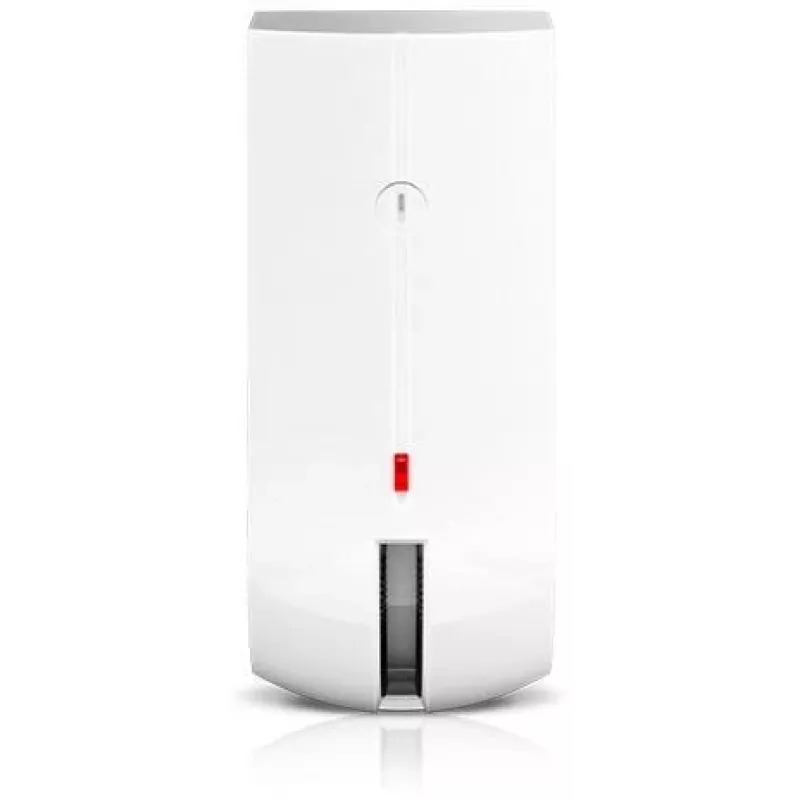

Satel Sensore wireless doppia tendina a microonde + PIR AOCD-260 ABAX/ABAX2

The Satel AOCD-260 is a wireless dual technology curtain detector combining PIR and microwave sensors for reliable indoor perimeter protection. Designed for use with ABAX and ABAX 2 wireless systems, it offers a narrow detection angle of 10° and a range of up to 14 meters, making it ideal for protecting windows, doors, and corridors.

Advantages

Dual technology (PIR + microwave) reduces false alarms by requiring both sensors to trigger. The curtain detection pattern provides a vertical barrier, perfect for securing openings. Anti-masking and tamper protection enhance security against sabotage. Remote configuration via DLOADX software allows easy adjustments without physical access.

Suitable for

• Indoor perimeter protection of windows, doors, and glass walls
• Integration with SATEL ABAX and ABAX 2 wireless alarm systems
• Applications requiring narrow, curtain-shaped detection zones

Key specifications

• Detector Type: Dual Technology (PIR + Microwave)
• Detection Pattern: Curtain
• Wireless Compatibility: ABAX 2, ABAX
• Frequency Band: 868.0 MHz – 868.6 MHz
• PIR Detection Range: Up to 14 m
• Microwave Detection Range: Up to 14 m
• Detection Angle: 10°
• Microwave Frequency: 24.125 GHz
• Power Supply: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 2 years
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Tamper Protection: Enclosure opening, detachment from surface
• Anti-masking: Yes (Microwave)
• Remote Configuration: Yes (via DLOADX)
• Recommended Mounting Height: 2.4 m
• Compliance: EN 50131-2-4 Grade 2

Recommendations

For optimal performance, mount at 2.4 m height and avoid obstructions in the detection zone. Use only SATEL ABAX/ABAX2 control panels. Test regularly and replace battery every 2 years.
