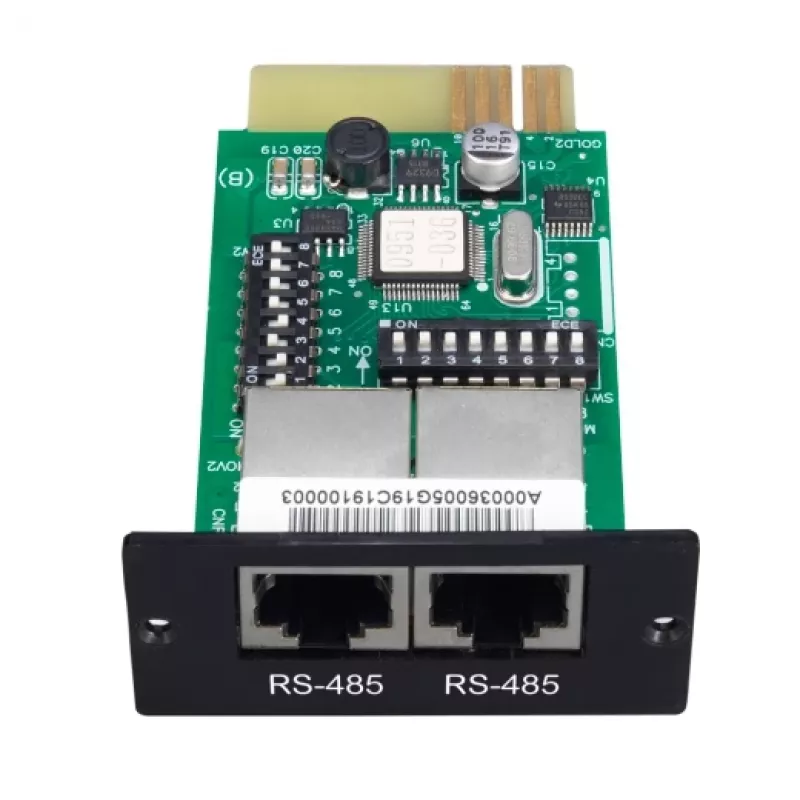

Scheda di gestione di rete APC SRVSMB001 – interfaccia RS-485, 52×80×26 mm, nero/verde

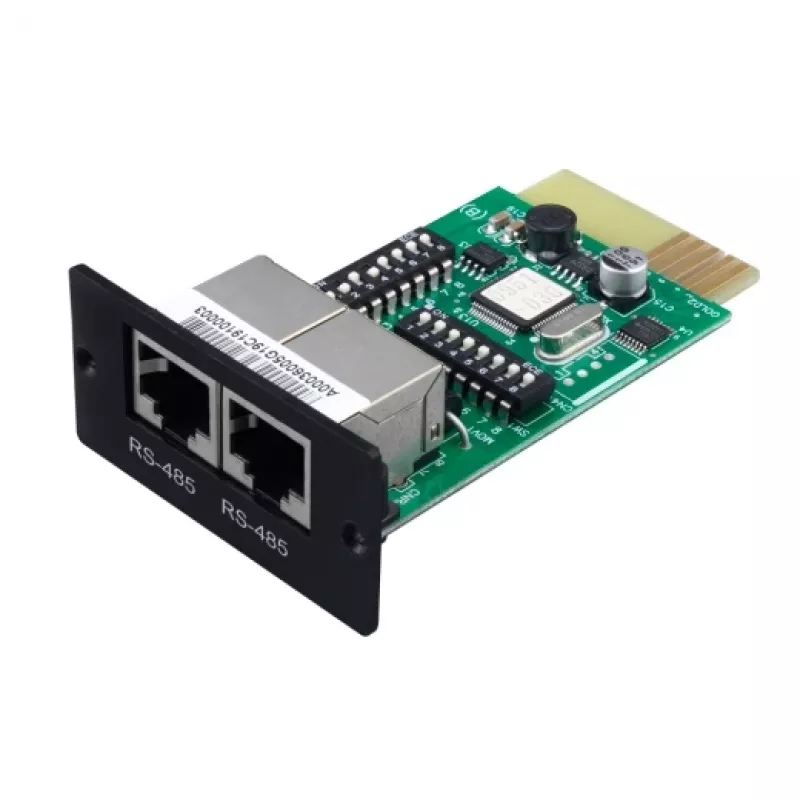

APC SRVSMB001 is a compact network management card (RS-485 interface) for remote monitoring and control of an individual APC UPS. The module measures 52 × 80 × 26 mm and is supplied in black and green. It provides a serial RS-485 connection for integration with UPS and power management systems, enabling status monitoring, event logging and remote command execution for administrators. Package includes installation guide.

Advantages

The SRVSMB001 offers a reliable serial communication channel for small installations where Modbus/RS-485 connectivity is required. Its compact dimensions and standardized interface simplify integration with existing UPS equipment and building management systems, while the included installation guide helps speed up setup.

Suitable for

• Remote monitoring of a single UPS via RS-485/Modbus
• Integration with building or power management systems
• Event logging and status reporting for administrators
• Legacy systems requiring serial interface connectivity

Key specifications

• Manufacturer: APC
• Model / MPN: SRVSMB001
• Interface: RS-485 (Modbus compatible)
• Dimensions: 52 × 80 × 26 mm
• Colour: Black, Green
• Weight: 0.03 kg
• Includes: Installation guide

How to use

Install the SRVSMB001 card into the compatible APC UPS slot following the included installation guide. Connect the RS-485 wiring to the building's Modbus network or to the monitoring device according to the UPS and network wiring diagrams. Configure communication parameters (baud rate, parity, addresses) in the UPS management interface and in the supervision software to enable remote monitoring, event logging and command execution.

Recommendations

Use shielded twisted-pair cabling for RS-485 connections and follow APC wiring recommendations. Verify compatibility with your UPS model and backup your UPS configuration before installing the card.
