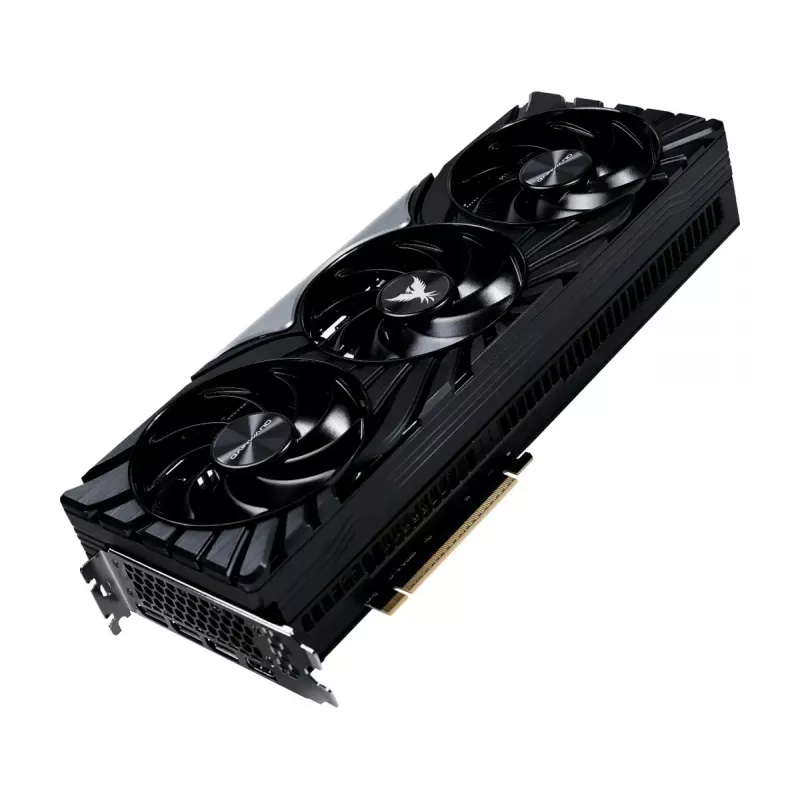

Scheda grafica Gainward GeForce RTX 5080 16 GB GDDR7

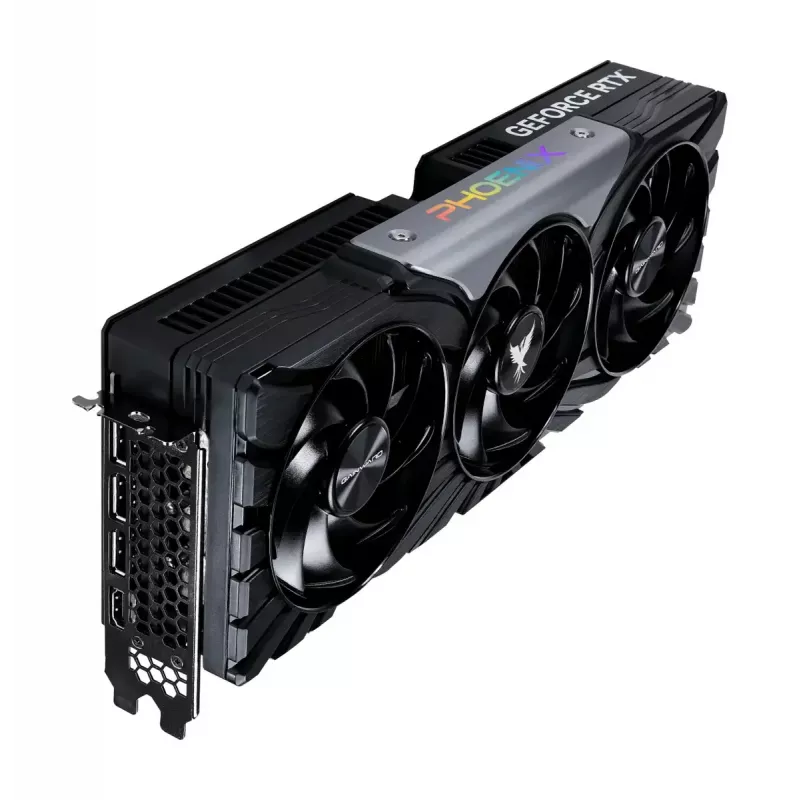

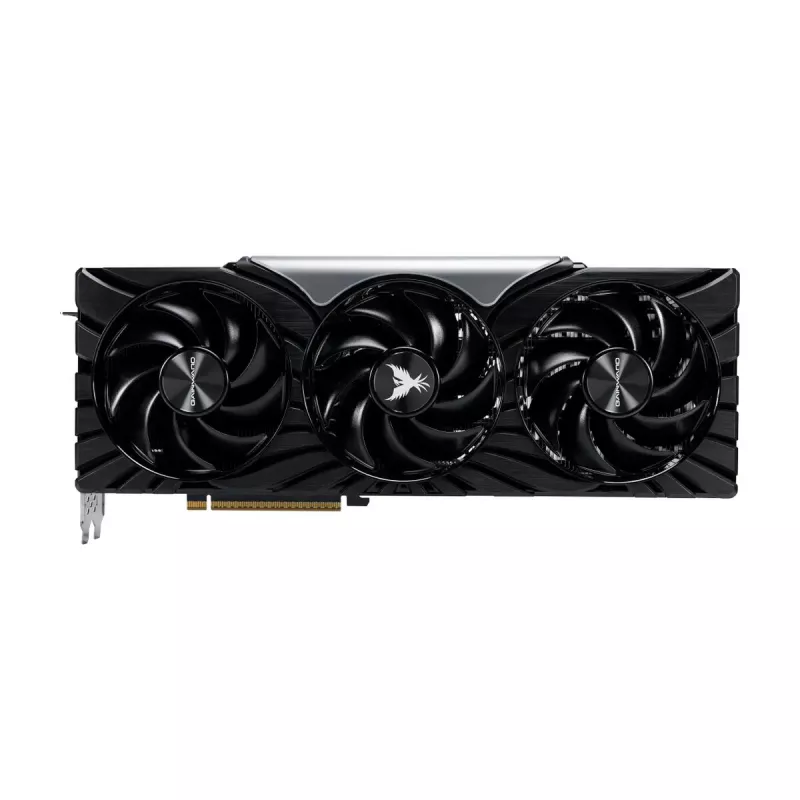

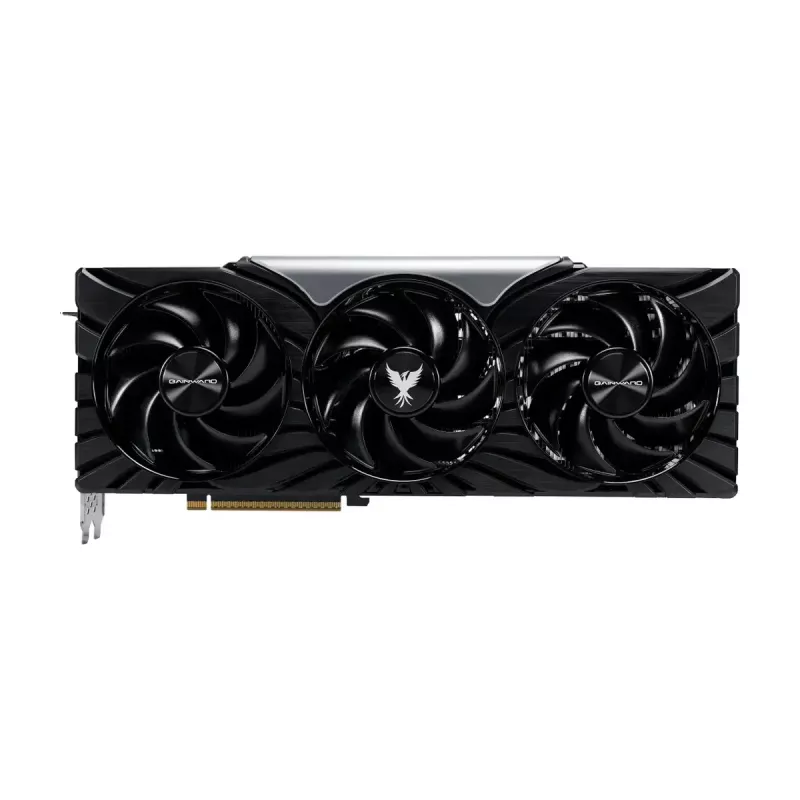

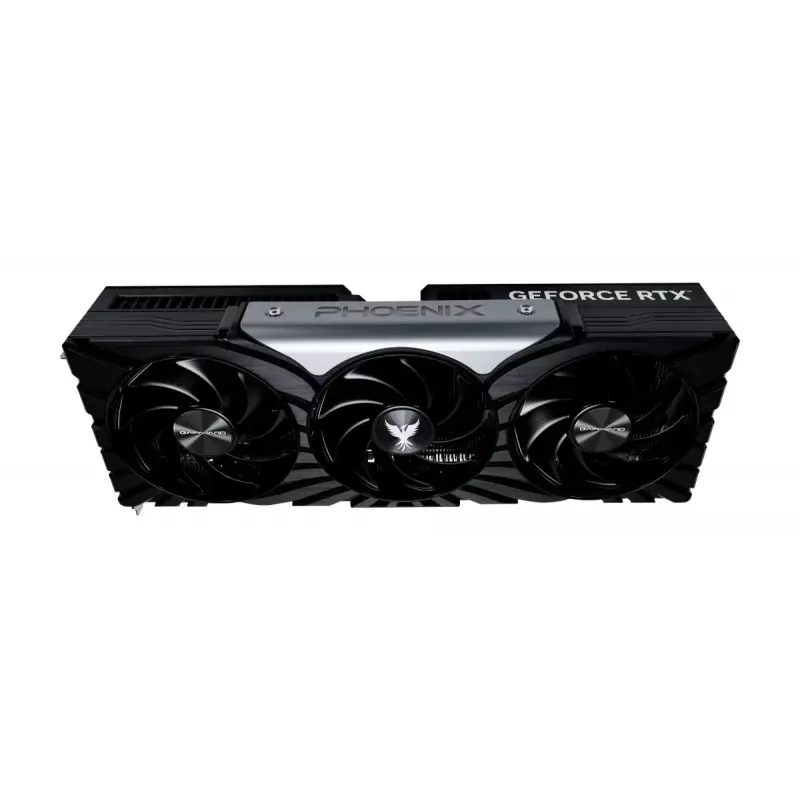

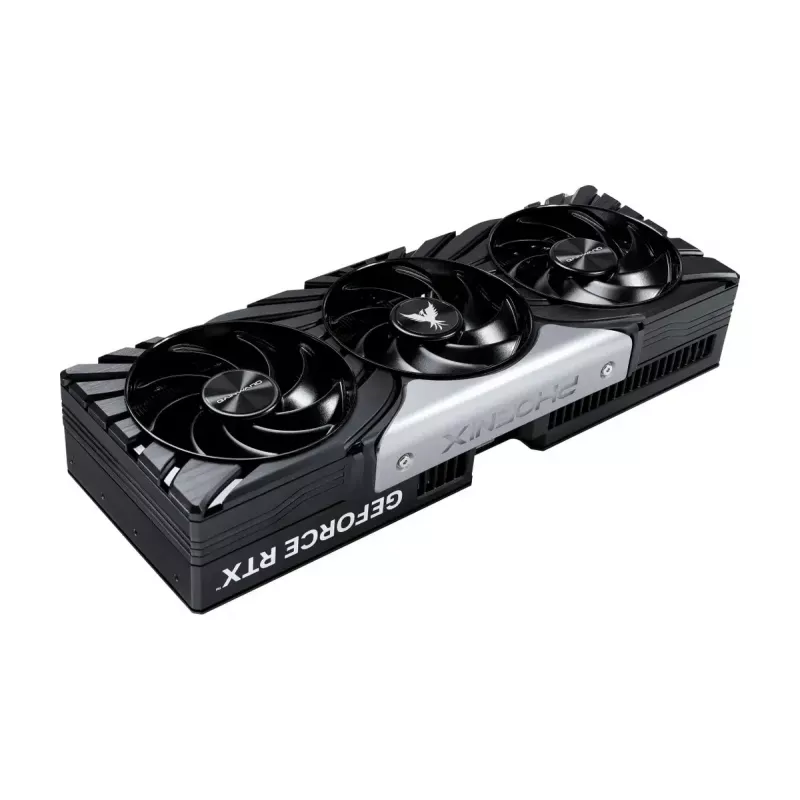

The Gainward GeForce RTX 5080 Phoenix GS pairs NVIDIA's GeForce RTX 5080 GPU with 16 GB of GDDR7 memory and a 256-bit memory bus to deliver high-resolution performance for gaming and creative workloads. The Phoenix Series design uses layered contours and a phoenix-wing-inspired silhouette, while ARGB illumination on the side logo provides customizable lighting. Active cooling with a vapor chamber, composite heat pipes and a three-fan layout is implemented to manage thermal loads under demanding use.

Advantages

Dual BIOS gives automatic protection and lets you switch between Performance and Silent modes to prioritize throughput or acoustics. The cooling system combines a vapor chamber, composite heat pipes and diffuser fins to spread and dissipate heat efficiently. Cyclone fan blade geometry and two-ball bearing fans improve airflow stability, reduce vibration and extend fan lifespan. Addressable ARGB lighting with a universal 5V connector enables straightforward synchronization with compatible motherboards or the vendor utility. ZERO RPM FAN behavior keeps fans idle during light tasks for quieter operation.

Suitable for

• High-resolution gaming and ray-traced workloads
• 3D rendering and GPU-accelerated creative applications
• Multimonitor or high-resolution displays up to 7680 × 4320
• Systems where adjustable noise vs. performance behavior is required

Key specifications

• Graphics processor: GeForce RTX 5080
• Memory: 16 GB GDDR7
• Memory clock: 15000 MHz (effective)
• Memory bus: 256 bit
• Interface: PCI Express 5.0
• Cooling: vapor chamber, composite heat pipes, triple-fan active cooling
• Lighting: Addressable ARGB with 5V connector (Auto Sync 2.0)
• Fan bearings: two-ball bearing, IP5X dust resistance

How to use

Install the card into a motherboard PCI Express 5.0 x16 slot following the system and power supply manufacturer's recommendations. Connect required external power cables from your PSU and attach the 5V ARGB header to a compatible motherboard or controller if you want synchronized lighting; otherwise leave it disconnected for default lighting behavior. Use the Dual BIOS switch to select Performance or Silent Mode according to your workload. Install the latest NVIDIA drivers and, if desired, the vendor utility to customize ARGB effects and performance settings.

Recommendations

Ensure your PC case has sufficient airflow and a power supply that meets the card's power requirements. Keep drivers and firmware up to date, and monitor temperatures under load to confirm adequate cooling—especially when running sustained, high-power workloads.
