Schermo di proiezione motorizzato Elite Screens Saker SK120XHW-E10

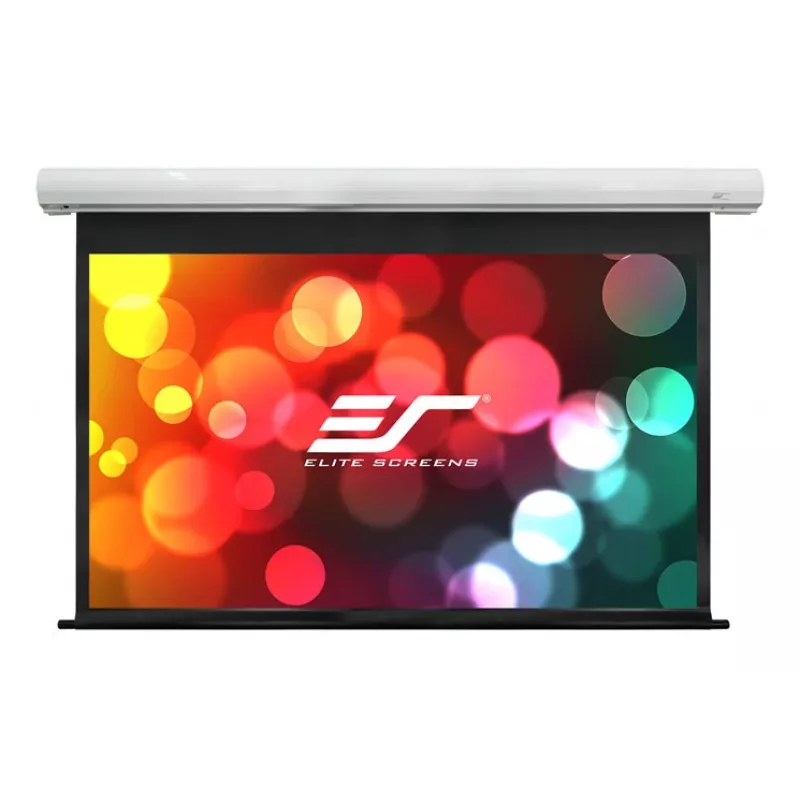

The Elite Screens Saker SK120XHW-E10 is a motorized projection screen with a 120" (3.05 m) diagonal and a native 16:9 aspect ratio. The viewable image area measures 2.66 m in width and 1.493 m in height. The screen uses MaxWhite Fiberglass (FG) material with 1.1 gain, a 180° wide viewing angle, active 3D and 4K Ultra HD compatibility, standard black masking borders, and a black backing. The product is GREENGUARD and GREENGUARD Gold certified and the MaxWhite FG material complies with NFPA 701 flame retardant standards.

Advantages

The motorized mechanism provides smooth, quiet operation and low power consumption. The MaxWhite Fiberglass surface offers neutral color reproduction and wide viewing angles suitable for larger audiences. Built-in IR and RF receivers plus included remotes and a detachable 3-way wall switch keypad enable flexible control options, while the RJ45 port and wireless trigger support integration with third-party control systems. The case design and tab-tension system help maintain a flat projection surface and simplify installation.

Suitable for

• Home cinema and multimedia rooms
• Conference rooms and presentation venues
• Classrooms and lecture halls
• Event spaces requiring a portable-looking, permanently mounted screen

Key specifications

• Model: Saker SK120XHW-E10
• Diagonal: 120" (3.05 m)
• Aspect ratio: 16:9
• Viewable width: 2.66 m
• Viewable height: 1.493 m
• Screen material: MaxWhite Fiberglass (FG), Gain 1.1
• Viewing angle: 180°
• Resolution support: Active 3D, 4K Ultra HD ready
• Case: Curved enamel white aluminum with parallel grooves
• Controls: Internal IR/RF receivers, IR and RF remotes included, detachable 3-way wall switch, wireless 5–12 V trigger, RJ45 port
• Mounting: Wall or ceiling, mounting kit included, flush hidden mounts for horizontal adjustment
• Features: Tab-tension for flat surface, extra top black masking for high ceilings, black backing
• Certifications: GREENGUARD, GREENGUARD Gold; MaxWhite FG meets NFPA 701
• Weight: 13.96 kg

How to use

Install the screen using the included mounting hardware on either a wall or ceiling; the flush hidden mounts permit horizontal sliding for precise centering. Connect power and use the included IR or RF remotes, the detachable 3-way wall switch keypad, or the wireless 5–12 V trigger for UP/STOP/DOWN control. For integration with automation systems, connect via the RJ45 port. The tab-tension mechanism is preconfigured to maintain a flat surface; ensure the screen housing is level during installation.

Recommendations

For stable image quality, avoid direct bright light on the projection surface and keep the projection area free of dust. Use the screen in spaces appropriate for a 120" diagonal and verify projector throw distance and lens settings to match the 16:9 viewable area. Follow local regulations and manufacturer instructions for mounting and electrical connections.
