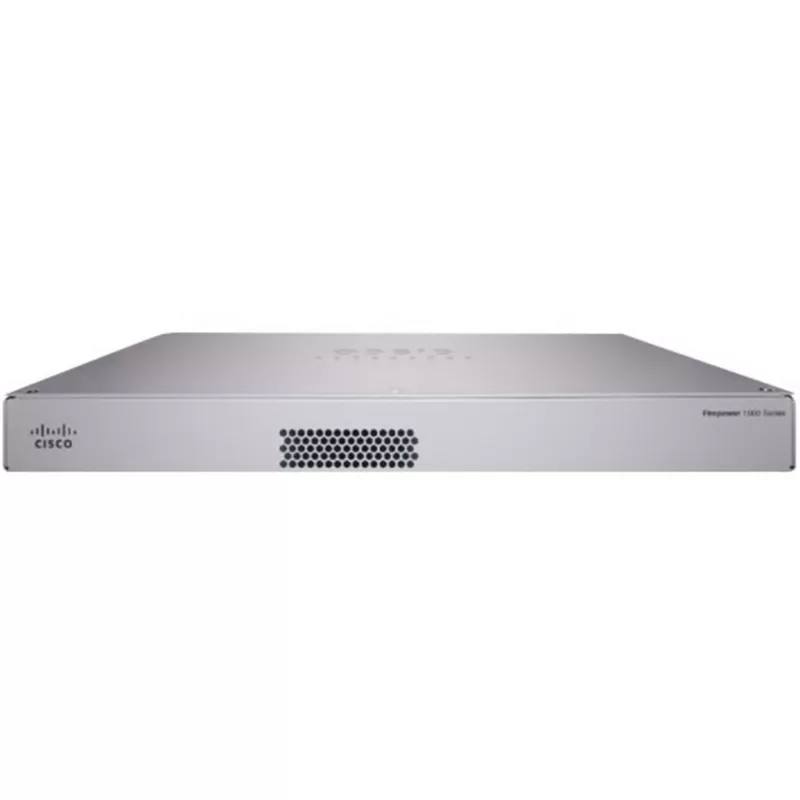

Security Appliance Cisco Firepower 1150 FPR1150-ASA-K9

The Cisco Firepower 1150 Security Appliance is a compact wired security device designed for enterprise branch and mid-sized data center deployments. It integrates hardware-accelerated firewall functionality with Intel-based processing and SSD storage to deliver consistent throughput and packet performance. The appliance provides eight Gigabit Ethernet ports, two SFP ports and two SFP+ ports to support diverse uplink and aggregation scenarios, and runs Cisco ASA software for Layer 3 and 4 security control with proven stateful inspection, VPN termination and routing capabilities.

Advantages

The appliance delivers up to 7.5 Gbps throughput and up to 4500 Mpps firewall performance for predictable traffic handling. Its combination of multiple Gigabit and small form-factor ports supports flexible connectivity and high-density uplinks. Intel processing and SSD storage provide efficient management, fast access to local data and reliable packet processing. Built-in support for remote access VPN termination and integrated BGP and OSPF routing simplifies deployment in networks that require secure site-to-site and dynamic routing functions.

Suitable for

• Enterprise branch offices requiring compact, high-performance firewall and VPN gateway
• Mid-sized data centers needing wired perimeter protection with multiple uplink options
• Network environments that require BGP or OSPF routing in addition to stateful firewall services
• Deployments that prioritize predictable throughput and high packet-per-second performance

Key specifications

• Throughput: up to 7.5 Gbps
• Firewall performance: up to 4500 Mpps
• Ports: 8 x Gigabit Ethernet, 2 x SFP, 2 x SFP+
• Processor platform: Intel-based CPU
• Storage: onboard SSD
• Software: Cisco ASA software for Layer 3/4 firewall, VPN termination and routing
• Technology: wired connectivity with support for advanced routing protocols

How to use

Install the appliance in a rack or cabinet with appropriate power and cooling. Connect WAN and LAN links to the Gigabit, SFP or SFP+ ports according to network design, and configure interfaces in the ASA software management console. Use the ASA interface to define security policies, NAT rules and access controls, and to set up remote access VPN termination if required. For dynamic routing, enable and configure BGP or OSPF on the device and verify route propagation with upstream peers. Monitor performance and logs through the Cisco management tools and adjust policies to match traffic patterns.

Recommendations

For environments that require Layer 7 application control and advanced threat defense, consider deploying the variant of the Firepower 1150 running FTD software; otherwise, use the ASA software option for robust Layer 3/4 control with VPN and routing. Regularly update device firmware and ASA software, back up configurations, and validate routing and VPN failover to maintain consistent security and connectivity.
