StarTech.com Extender KVM USB Dual VGA fino a 300 m (Cat5/6)

The StarTech.com SV565DUTPU USB Dual VGA KVM Extender allows you to extend your keyboard, mouse, and dual VGA monitor setup up to 300 meters (1000 feet) over a single Cat5e or Cat6 cable. This extender supports two PCs and provides local and remote console access with USB 1.1 and audio support. Ideal for server rooms, industrial environments, or any application requiring remote KVM control.

Advantages

Extend your dual VGA KVM setup over long distances using cost-effective Cat5e/6 cabling. Supports high resolutions up to 1920x1200 at 60Hz for clear, sharp video. Hot-key switching allows easy toggling between connected PCs. The steel enclosure ensures durability, and the included AC adapter provides reliable power.

Suitable for

• Server room management
• Industrial control centers
• Digital signage installations
• Remote workstation access

Key specifications

• KVM Type: Cat5 KVM Extender
• Number of PCs Supported: 2
• Video Interface: Dual VGA (HD15)
• USB Interface: USB 1.1 (for Keyboard/Mouse)
• Max Resolution (Local/Remote): 1920x1200 @ 60Hz
• Max Extension Distance: 300 m (1000 ft)
• Cabling Requirements: Cat5e/6 UTP
• Audio Support: Yes (3.5mm Stereo)
• Hot-Key Switching: Yes
• OS Compatibility: OS Independent

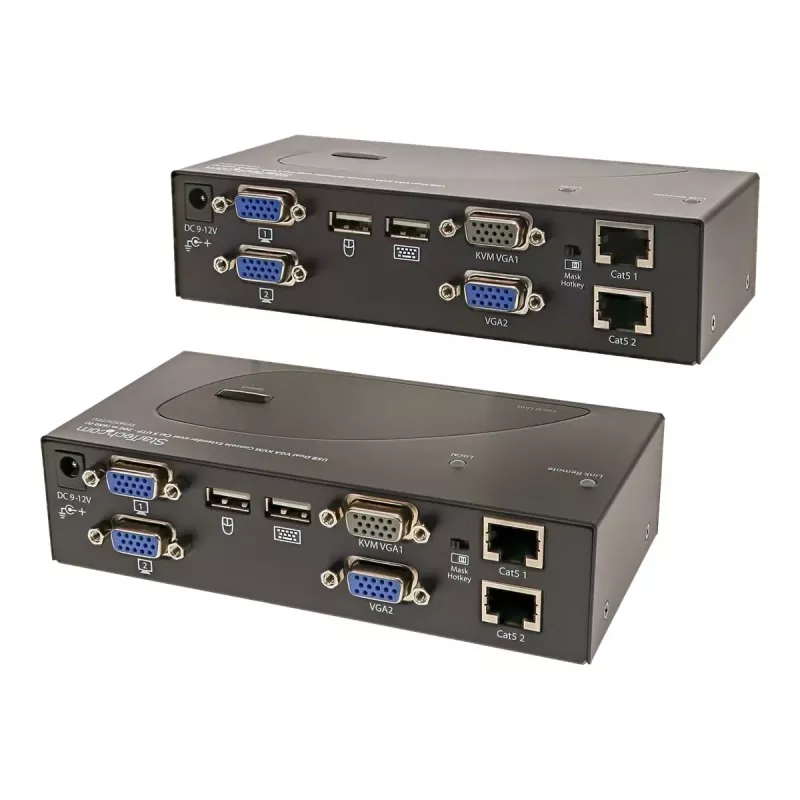

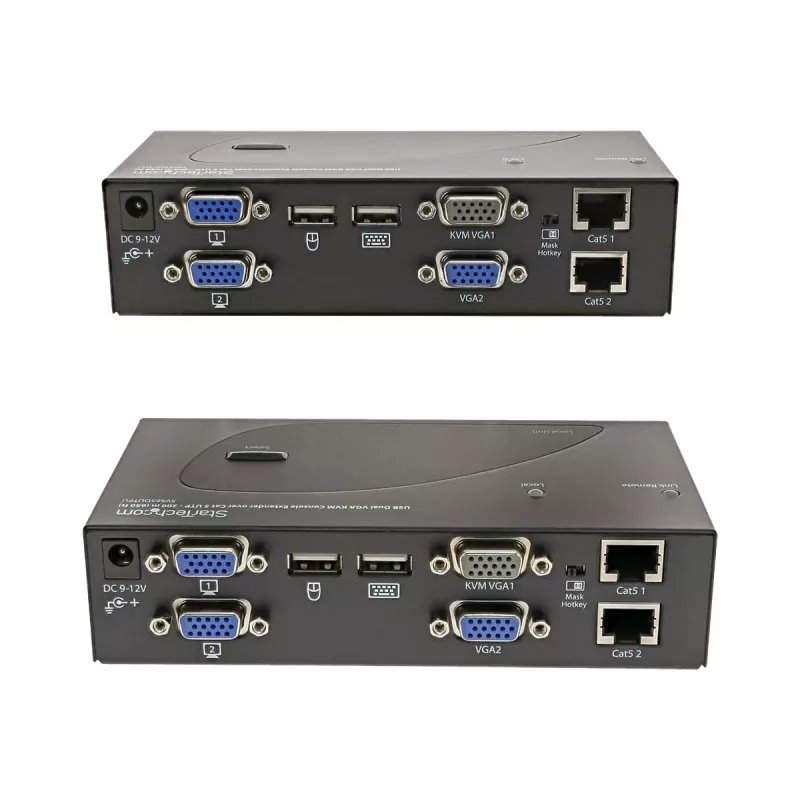

• Local Console Ports: 2x VGA (HD15), 2x USB-A, 2x 3.5mm Audio
• Remote Console Ports: 2x VGA (HD15), 2x USB-A, 2x 3.5mm Audio
• PC Connection Ports (Local Unit): 2x VGA (HD15), 2x USB-B, 2x 3.5mm Audio
• Power Source: AC Adapter (Included)
• Enclosure Material: Steel
• Color: Black
• Rack-Mountable: Yes (with optional mounting kit)

Recommendations

For optimal performance, use high-quality Cat6 cabling and ensure proper termination. The extender is OS independent and works with any operating system. For rack mounting, order the optional mounting kit separately.
