StarTech.com J9151A-BX-D-ST modulo ricetrasmettitore SFP+ (compatibile HP J9151A-BX-D, 10 Gbit/s, 10 km, Singlemode, 10GBase-BX Downstream)

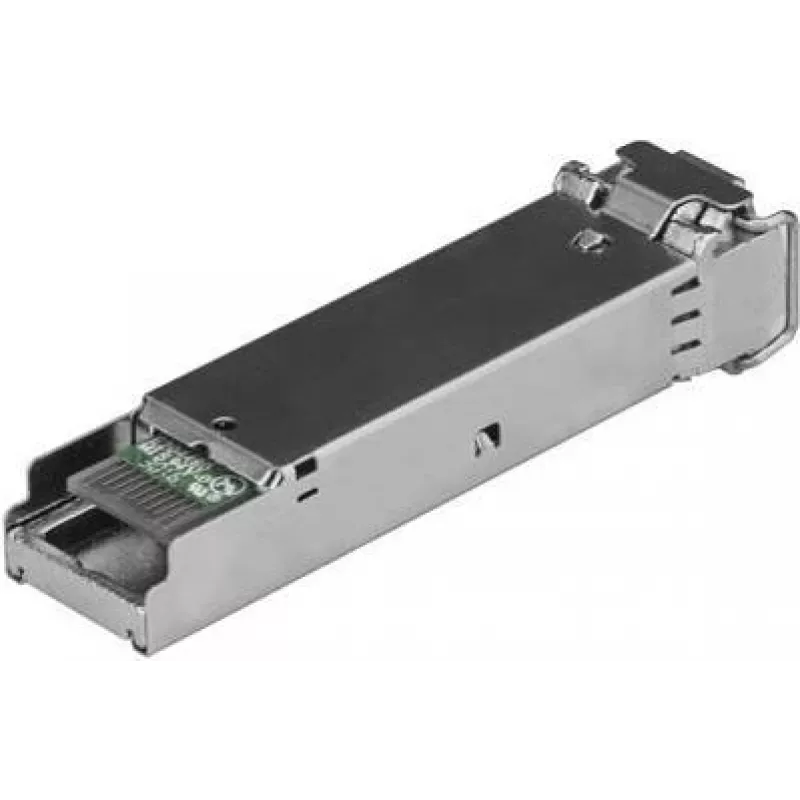

The StarTech.com J9151A-BX-D-ST SFP+ transceiver module is a high-performance, cost-effective solution designed for 10 Gigabit Ethernet networks. It is fully compatible with HP J9151A-BX-D equipment and delivers reliable 10 Gbps connectivity over single-mode fiber at distances up to 10 km. This downstream module operates at a wavelength of 1270 nm and supports bi-directional communication over a single fiber strand, making it ideal for point-to-point applications where fiber conservation is critical.

Advantages

This transceiver module offers seamless integration with HP networking hardware, ensuring hassle-free deployment and consistent performance. Its hot-swappable design allows for easy installation and maintenance without network downtime. With low power consumption (less than 1.0 W) and digital diagnostics monitoring (DDM), it provides real-time performance data for proactive network management. The MSA-compliant form factor guarantees compatibility with a wide range of SFP+ switches and routers.

Suitable for

• Enterprise data centers requiring high-speed, long-distance fiber links
• Service provider networks for WAN and metro Ethernet connections
• Point-to-point fiber optic links where single-fiber bi-directional transmission is needed
• Upgrading existing HP network infrastructure to 10 Gbps

Key specifications

• Transceiver Type: SFP+
• Data Transfer Rate: 10 Gbps
• Fiber Type: Single Mode (OS2)
• Connector Type: LC Simplex
• Max Transfer Distance: 10 km (6.2 miles)
• Wavelength: 1270 nm (Downstream)
• Bi-directional Support: Yes (Single Fiber)
• Digital Diagnostics Monitoring (DDM): Yes
• Hot-Swappable: Yes
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)

Recommendations

For optimal performance, pair this downstream module with an upstream module operating at 1330 nm (e.g., StarTech.com J9151A-BX-U-ST). Ensure your network equipment supports SFP+ and 10GBase-BX standards. Always use single-mode fiber (OS2) for distances up to 10 km.
