Stazione di ricarica EV QOLTEC 52432 Type2 22 kW WLAN con display LCD

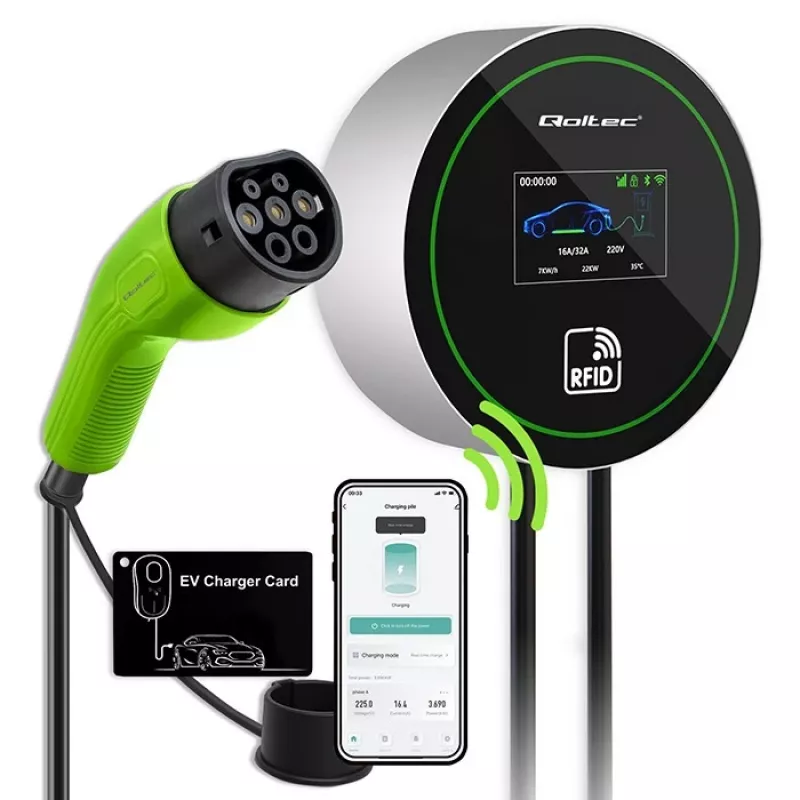

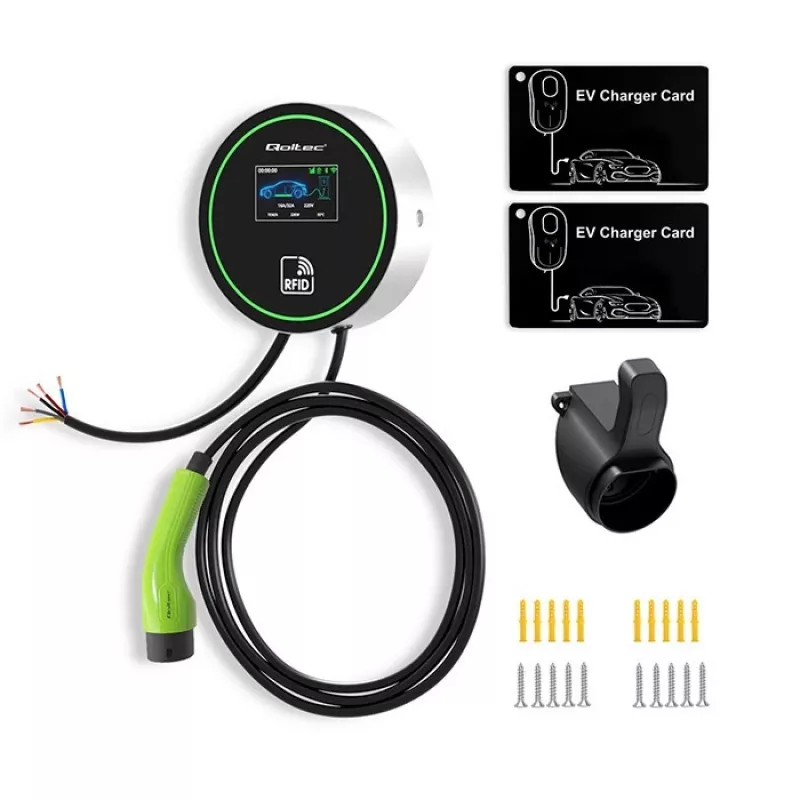

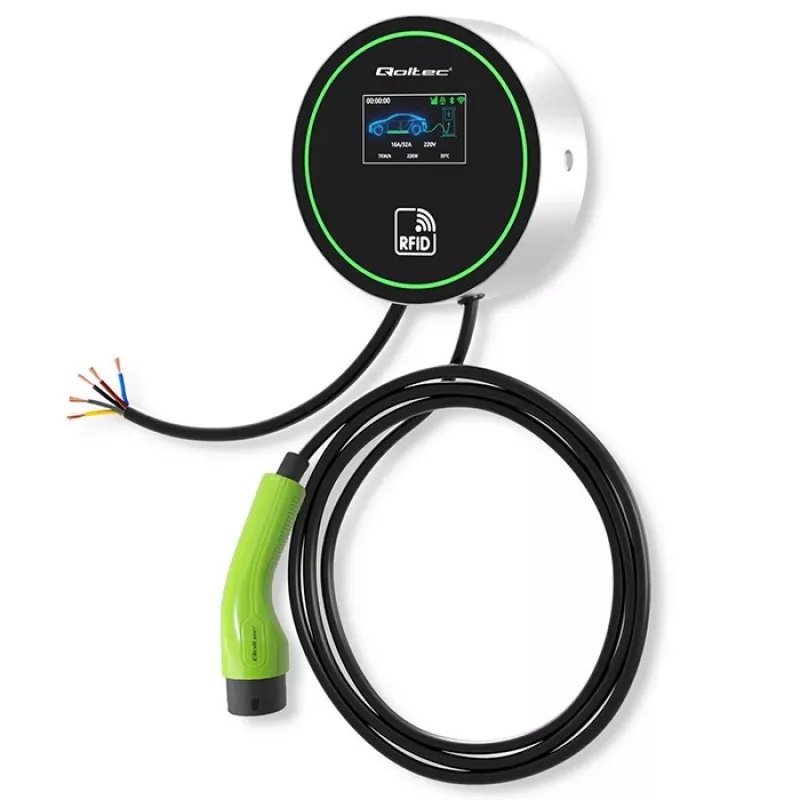

QOLTEC 52432 Type2 22 kW WiFi with LCD display is an AC electric vehicle charging station designed for private and semi-public installations. The unit features a Type 2 socket for widely compatible plug-in EVs and supports up to 22 kW charging power for faster single-phase or three-phase AC charging where the electrical installation permits. Built-in WiFi connectivity and an integrated LCD provide local status feedback and basic remote monitoring capabilities, making it suitable for home garages, workplace parking and small commercial premises.

Advantages

The charging station combines compact design with a clear LCD screen that displays charging status and basic parameters. WiFi connectivity enables remote access to session information and simplified monitoring without additional wiring. The Type 2 interface adheres to common EV charging standards, ensuring compatibility with most modern electric cars and plug-in hybrids. With up to 22 kW output, the station reduces charging time compared with lower-power AC chargers where the vehicle and electrical installation support higher currents.

Suitable for

• Private home garages and driveways for daily vehicle charging
• Small business and workplace parking areas for employee charging
• Properties requiring a wall-mounted, weather-resistant AC charger with user feedback
• Users who need WiFi-based monitoring and simple on-site display of charging status

Key specifications

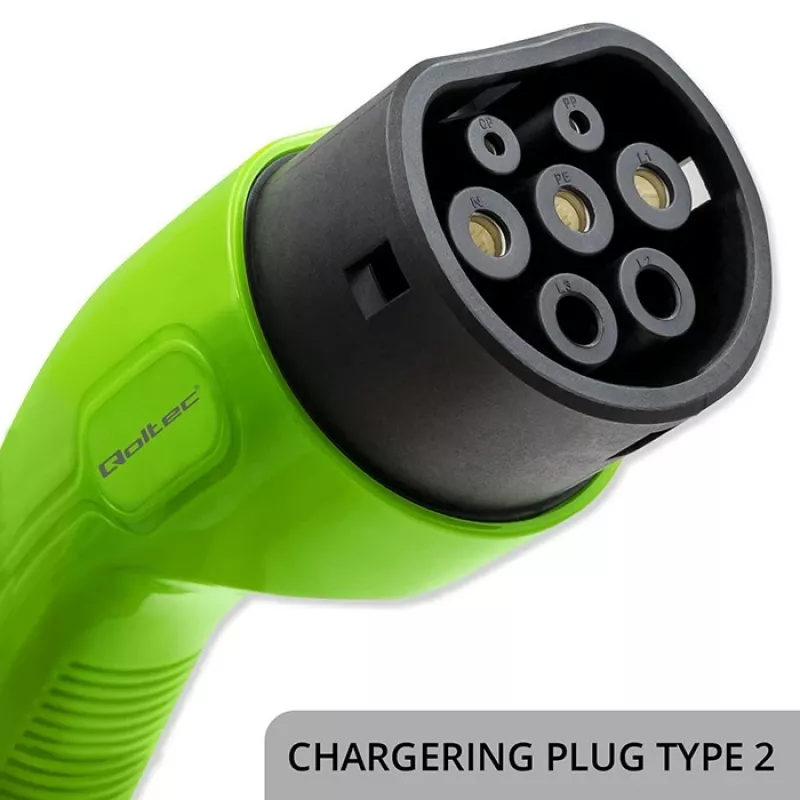

• Connector type: Type 2 socket (IEC standard compatibility)
• Maximum AC charging power: 22 kW
• Connectivity: WiFi for remote status monitoring and basic control
• Local display: Integrated LCD screen for session status and parameters
• Mounting: Wall-mounted installation suitable for indoor and protected outdoor locations
• Electrical supply: Supports single-phase or three-phase AC where available (installation dependent)

How to use

Install the charging station according to local electrical regulations using a qualified electrician and ensure the supply can support the required maximum current. After mechanical and electrical installation, connect the unit to a WiFi network following the on-screen LCD instructions or the included user guide. To begin charging, connect the vehicle to the Type 2 socket using the compatible cable, verify the LCD indicates an active session, and monitor charging progress locally or via WiFi-enabled features. Always follow the vehicle manufacturer’s guidance concerning charging modes and maximum allowable current.

Recommendations

Ensure the installation includes appropriate overcurrent protection and earth fault detection as required by local codes. Use a dedicated circuit sized for the desired maximum charging power, and confirm the supply panel can handle simultaneous loads. For outdoor installations, position the unit in a sheltered location to reduce direct exposure to extreme weather. Regularly check cable and connector condition and consult the vehicle manual for optimal charging settings.
