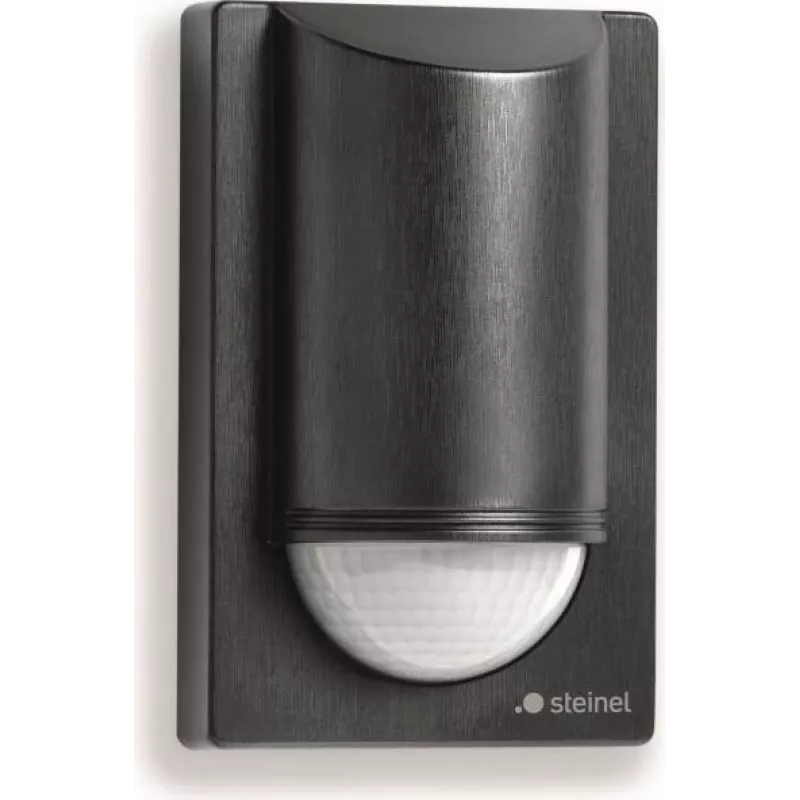

Steinel rilevatore di movimento IS 2180 ECO SW (034702)

The Steinel IS 2180 ECO SW stands out with its 180° detection angle and 12 m reach, making it ideal for covering large outdoor areas with a single sensor. Unlike basic motion detectors, it offers precise twilight and time adjustments, ensuring reliable activation only when needed.

Highlights

• Passive infrared sensor with 180° detection angle and 12 m tangential reach
• Adjustable twilight threshold (2–2000 lux) and time delay (8 s – 35 min)
• Wall or corner mounting with included bracket, IP54 rated for outdoor use
• Switches up to 1000 W resistive or 500 W LED/fluorescent loads

In daily use

Mount the IS 2180 ECO SW at 1.8–4 m height for optimal coverage. The sensor head swivels 80° horizontally and tilts 30° vertically, allowing you to direct detection precisely. Its UV-resistant plastic housing withstands temperatures from -20°C to +50°C, ensuring year-round performance.

Full specifications

• Sensor type: Passive infrared (PIR)
• Detection angle: 180°
• Max. reach: 12 m (tangential)
• Recommended mounting height: 1.8–4 m
• Time setting: 8 s – 35 min
• Twilight setting: 2–2000 lux
• Power supply: 230 V / 50 Hz
• Max. switching power (resistive): 1000 W
• Max. switching power (LED/fluorescent): 500 W
• IP rating: IP54
• Protection class: II
• Colour: Black
• Material: UV-resistant plastic
• Operating temperature: -20 to +50 °C
• Swivel range (horizontal): 80°
• Tilt range (vertical): 30°
• Installation type: Wall, corner (with included bracket)
• Detection zones: 7 levels, 180 switching segments

Final note

The IS 2180 ECO SW combines wide coverage, flexible adjustment, and durable construction, making it a dependable choice for outdoor lighting control.
