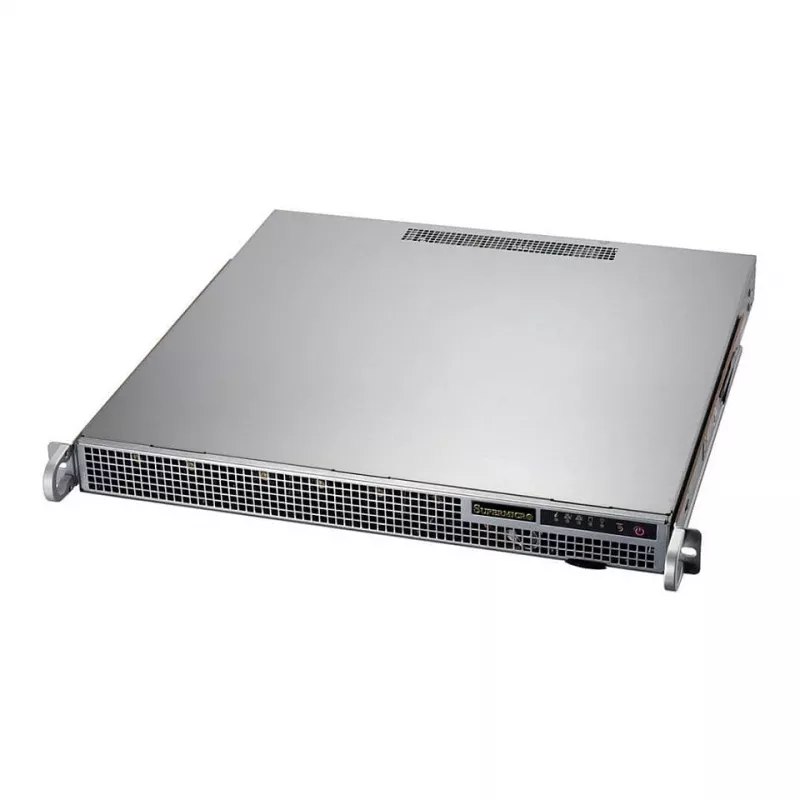

Super Micro 1U Rackmount Server Barebone AS-1015A-MT, H13SAE-MF, 4x 2,5" Hot-Swap, 500W Platinum

The Super Micro AS-1015A-MT is a high-performance 1U rackmount server barebone designed for demanding enterprise workloads. Built around the Supermicro H13SAE-MF motherboard, it supports AMD Ryzen 7000 Series processors on the AM5 socket, delivering exceptional computing power for virtualization, cloud computing, and data-intensive applications. With 4 hot-swap 2.5-inch drive bays supporting SATA and NVMe, dual 10GbE LAN, and a 500W Platinum power supply, this barebone offers a robust foundation for a scalable and efficient server solution.

Advantages

This barebone system provides a cost-effective and flexible platform for building a custom server. Its compact 1U form factor saves valuable rack space while delivering enterprise-grade features such as IPMI 2.0 remote management, dual 10GbE connectivity, and support for high-speed DDR5 memory. The hot-swap drive bays and redundant cooling ensure maximum uptime and reliability.

Suitable for

• Small to medium business servers
• Edge computing and IoT gateways
• Virtualization hosts
• Network attached storage (NAS) appliances
• High-performance computing clusters

Key specifications

• Form Factor: 1U Rackmount
• Motherboard: Supermicro H13SAE-MF
• Processor Socket: AMD Socket AM5 (LGA 1718)
• Supported CPUs: AMD Ryzen 7000 Series
• Chipset: AMD B650
• Memory: 4x DDR5 DIMM slots, up to 128GB DDR5-5200 ECC/non-ECC UDIMM
• Drive Bays: 4x 2.5" Hot-swap (SATA 6Gb/s, NVMe PCIe 4.0/5.0, U.2)
• Expansion Slots: 1x PCI-E 5.0 x16 (Low-profile)
• Network: Dual 10GbE LAN (Intel X710-AT2), 1x Dedicated IPMI LAN
• Power Supply: 1x 500W Platinum Level

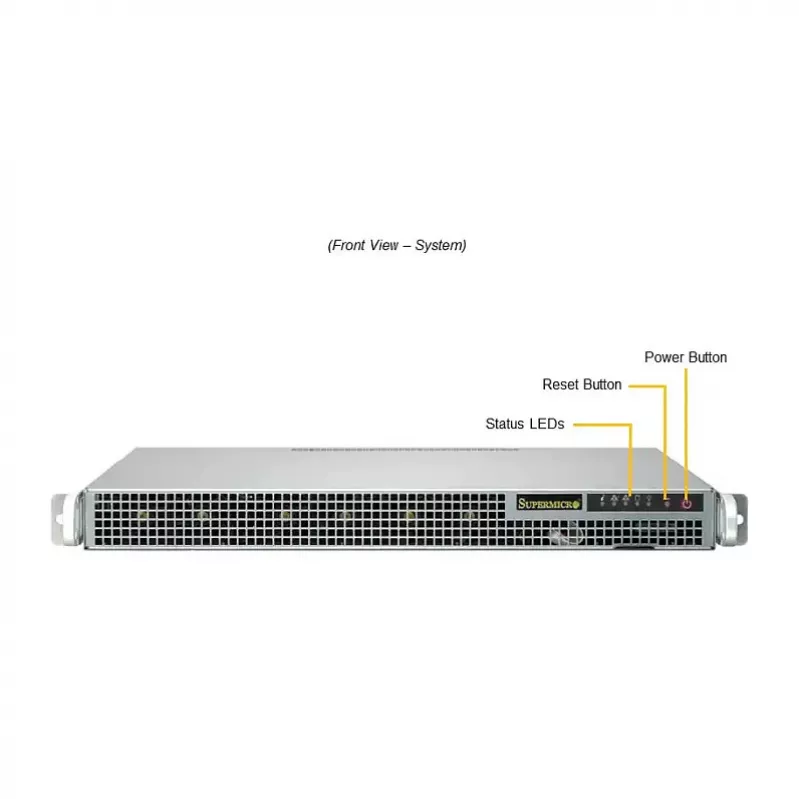

• Front I/O: 2x USB 3.2 Gen1 Type-A

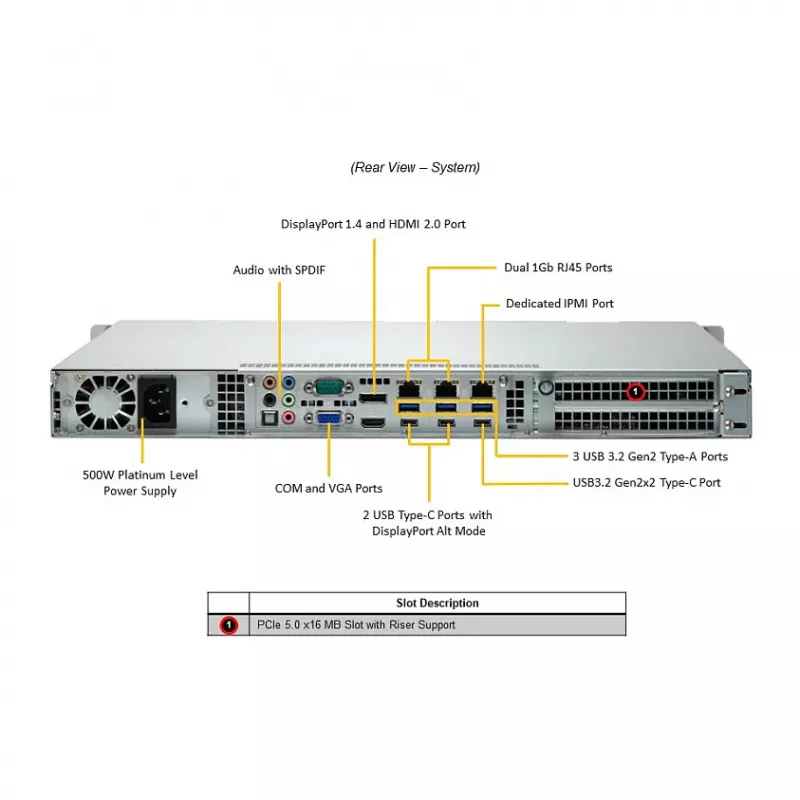

• Rear I/O: 2x USB 3.2 Gen2 Type-A, 1x HDMI 2.1, 1x COM Port
• Cooling: 3x 4cm Heavy Duty Fans
• Management: IPMI 2.0 with KVM over IP

Recommendations

This barebone is ideal for IT professionals seeking a reliable and customizable server platform. Pair with AMD Ryzen 7000 series processors and ECC DDR5 memory for optimal performance in mission-critical environments.
