Super Micro SuperServer 110P-WTR server barebone rackmount 1U - single socket LGA4189 - Intel C621A - 8x slot DDR4 DIMM - 4x 3,5" hot-swap SATA/NVMe hybrid - dual 10GbE - 750W ridondante Platinum

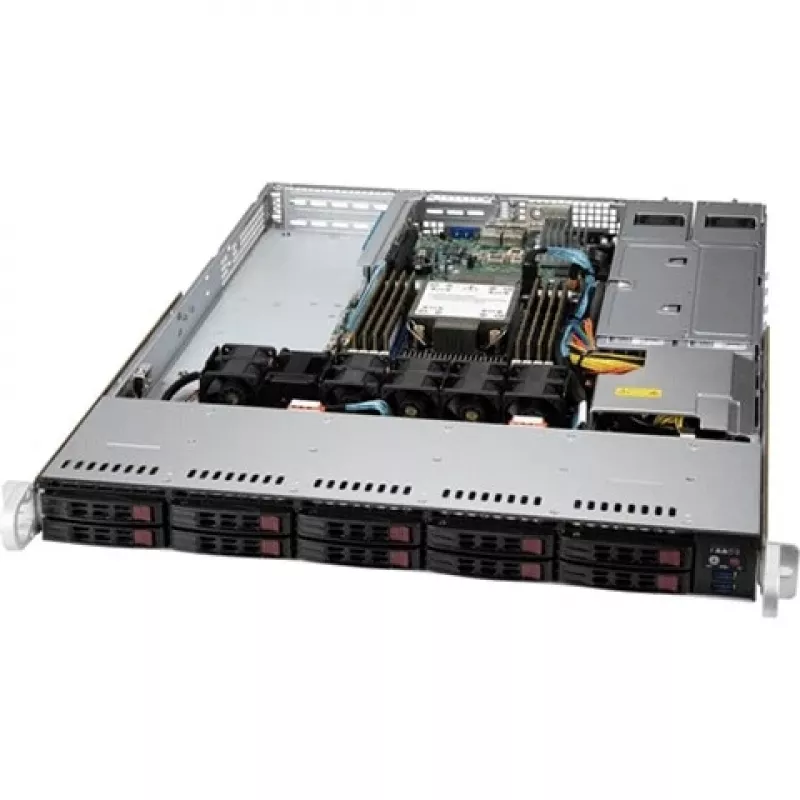

The Supermicro SuperServer 110P-WTR is a high-performance 1U rackmount server barebone designed for demanding data center and enterprise environments. Built on the Intel C621A chipset and supporting 3rd Gen Intel Xeon Scalable processors (Ice Lake-SP), this system delivers exceptional compute density and scalability. With 8 DDR4 DIMM slots supporting up to 2TB of memory, flexible storage options including 4 hot-swap 3.5" SATA/NVMe hybrid bays and 2 M.2 NVMe slots, and dual 10GbE networking, the 110P-WTR is ideal for virtualization, cloud computing, and high-performance computing workloads.

Advantages

The 110P-WTR offers a perfect balance of performance, storage flexibility, and energy efficiency in a compact 1U form factor. Its redundant 750W Platinum power supply ensures high availability and reduced power consumption. The hot-swap drive bays and tool-less design simplify maintenance and upgrades, while the dedicated IPMI 2.0 management port enables remote monitoring and control.

Suitable for

• Enterprise data centers requiring high-density compute nodes
• Virtualization and hyper-converged infrastructure
• Cloud computing and edge deployments
• High-performance computing (HPC) clusters
• Software-defined storage and NVMe-oF solutions

Key specifications

• Form Factor: 1U Rackmount
• Processor Socket: Single Socket LGA4189 (Socket P+)
• Supported Processors: 3rd Gen Intel Xeon Scalable (Ice Lake-SP), up to 270W TDP
• Chipset: Intel C621A
• Motherboard: Supermicro X12SPW-TF
• Memory: 8x DDR4 DIMM slots, up to 2TB DDR4-3200MHz (RDIMM/LRDIMM)
• Storage Bays: 4x 3.5" Hot-swap SATA/NVMe Hybrid
• M.2 Support: 2x M.2 NVMe (PCIe 4.0 x4)
• PCIe Expansion: 2x PCIe 4.0 x16 (FHFL), 1x PCIe 4.0 x8 (LP)
• Network: Dual 10GbE LAN (Intel X710-AT2)
• Management: Dedicated IPMI 2.0 LAN
• Power Supply: 750W Redundant Platinum Level
• Front I/O: 2x USB 3.0
• Rear I/O: 2x USB 3.0, 1x VGA

Recommendations

This barebone server is ideal for organizations looking to build a powerful yet compact server solution. With its support for the latest Intel Xeon Scalable processors and flexible storage options, it can handle a wide range of workloads from virtualization to HPC. The redundant power supply and IPMI management ensure high availability and ease of maintenance.
