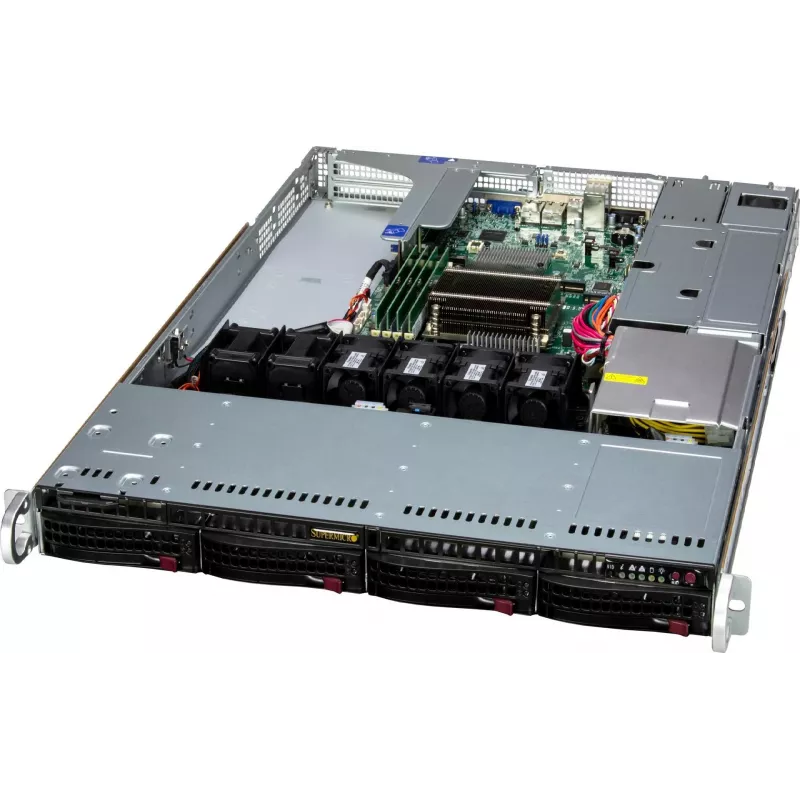

Supermicro SYS-511R-W Barebone SuperServer 1U Single Socket LGA-1700 Xeon E-2400

The Supermicro SYS-511R-W is a 1U rackmount barebone server designed for single-socket Intel Xeon E-2400 and 13th/12th Gen Core processors. Built on the Intel W680 chipset, it offers a compact yet powerful platform for enterprise and edge computing.

Advantages

High-density 1U form factor with hot-swap drive bays, dual 2.5 Gigabit Ethernet, and IPMI remote management. Supports up to 128GB DDR5 ECC memory and PCIe 5.0 expansion.

Suitable for

• Small business servers
• Edge computing
• Virtualization
• Network appliances

Key specifications

• Form Factor: 1U Rackmount
• Processor Socket: Single LGA1700
• Chipset: Intel W680
• Memory: 4x DDR5 DIMM slots, up to 128GB UDIMM, 4800MHz
• Drive Bays: 2x 3.5" Hot-swap SATA
• M.2 Slots: 2x M.2 NVMe (PCIe 4.0 x4)
• PCIe Expansion: 1x PCIe 5.0 x16 (FHFL), 1x PCIe 4.0 x4 (LP)
• Ethernet: Dual 2.5 Gigabit (Intel i225-LM)
• USB: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1, 2x USB 2.0
• Video: HDMI, DisplayPort, VGA (via BMC)
• Power Supply: 350W 80 PLUS Platinum
• Management: IPMI 2.0 with KVM over IP (ASPEED AST2600)
• RAID: Intel RSTe (Software RAID 0,1,5,10)

Recommendations

Ideal for customers needing a reliable, manageable server in a compact 1U chassis. Pair with Intel Xeon E-2400 or 13th Gen Core processors and ECC DDR5 memory for optimal performance.
