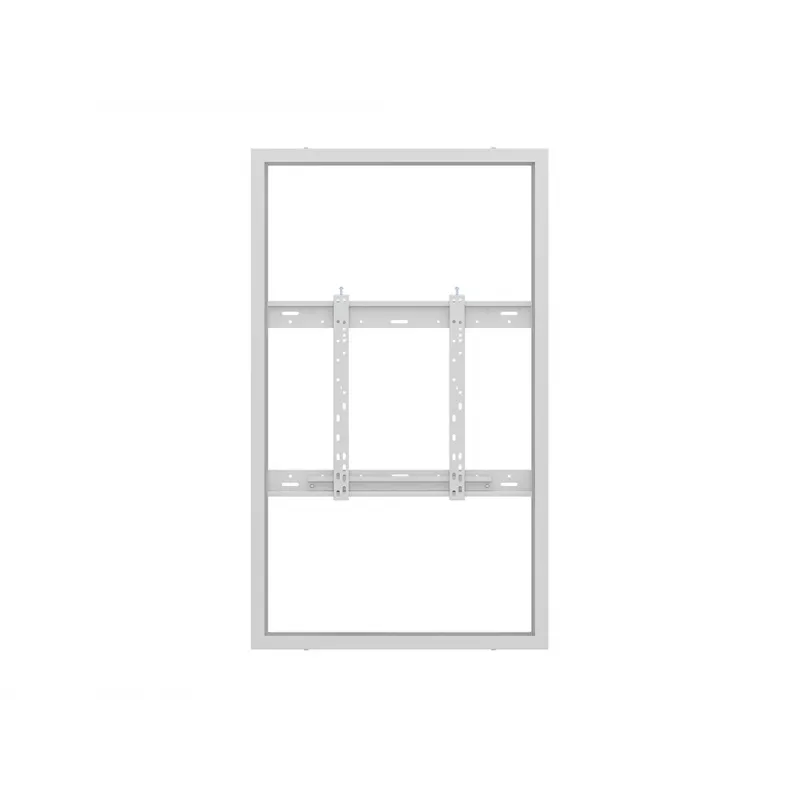

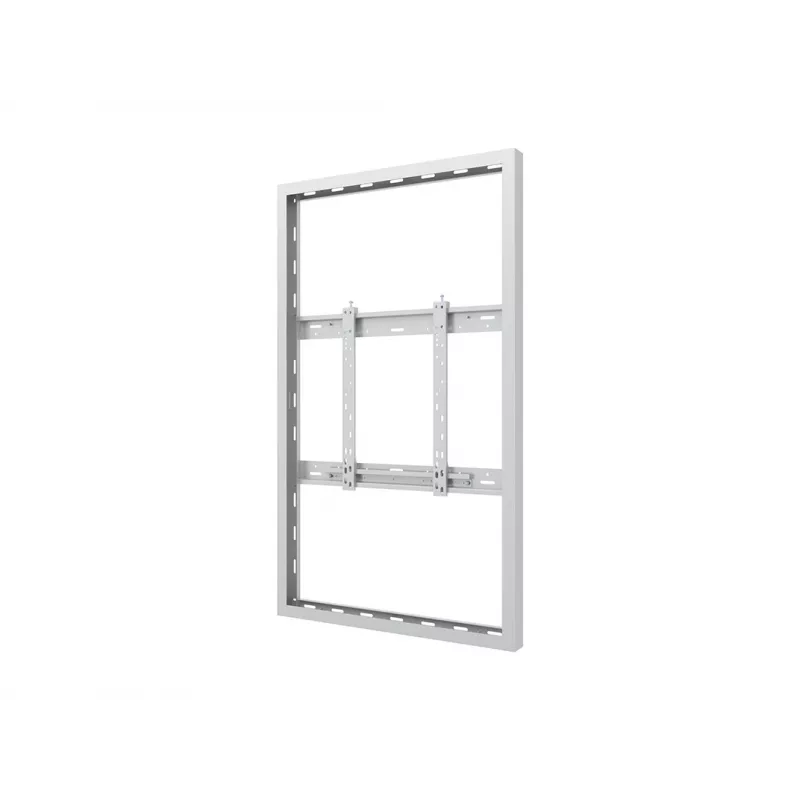

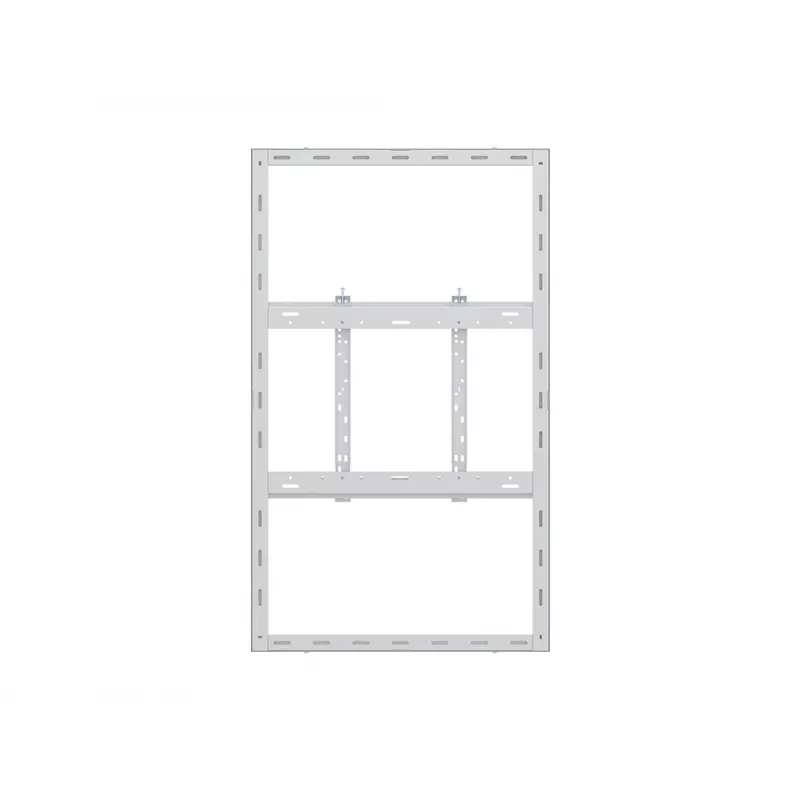

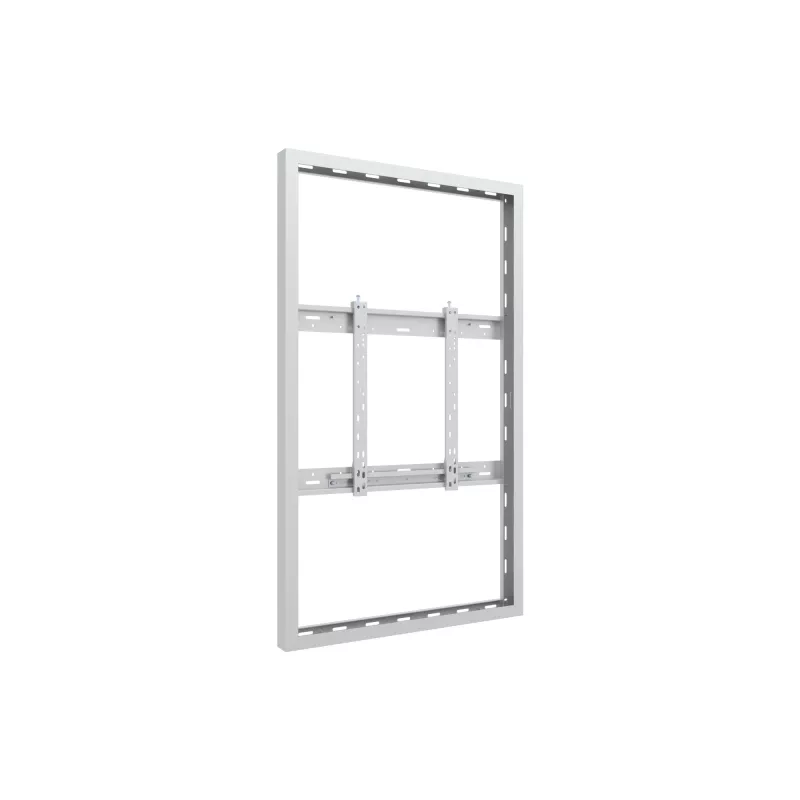

Supporto a parete per cassa MULTIBRACKETS M Pro Series per display 55 inch, slim Medium, bianco, acciaio, 1360×87×860 mm, orizzontale/verticale

The M Pro Series Enclosure 55" Wall Slim Medium in white is a steel wall-mounted casing designed to house and protect 55" signage displays. It supports both portrait and landscape orientations and offers a low-profile, millimetre-adjustable frame with integrated passive vents and options for active thermal management. The enclosure fits many brands of commercial signage, provides easy service access via hinged panels and reversible hinges, and includes tamperproof security hardware for protected installations.

Advantages

The enclosure combines a slim, Scandinavian design with practical features: a depth-adjustable exterior frame to accommodate different display depths, reversible hinges to ease installation and maintenance, and integrated ventilation with possible active cooling. It compensates for uneven walls to keep the front frame flat, supports VESA up to 600 x 400 mm, and ships pre-assembled to simplify installation. The steel construction and tamperproof hardware increase durability and security for public and commercial environments.

Suitable for

Key specifications

How to use

Mount the enclosure to a suitable wall surface using appropriate fixings for the wall material. Adjust the depth of the exterior frame to match the thickness of the chosen 55" display, then install the display inside the frame using the supported VESA pattern (up to 600 x 400 mm). Use the hinged top frame and reversible hinges to gain access for cabling and maintenance. Ensure ventilation openings are not blocked and configure optional active cooling if required for the display model.

Recommendations

For safe and reliable operation, confirm the display weight does not exceed 25 kg and verify VESA compatibility before installation. Use suitable wall anchors for the mounting surface, allow clearance for ventilation, and follow the display manufacturer’s guidelines for operating temperature and service access.
