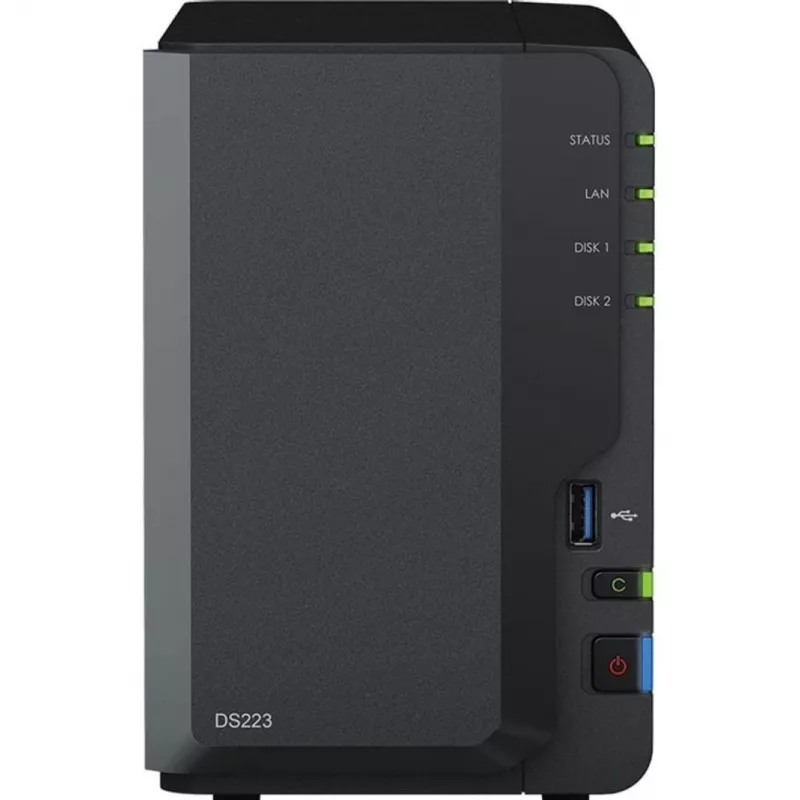

Synology DS223 RED 24TB (2x 12TB) NAS desktop

The Synology DS223 RED 24TB is a high-performance 2-bay desktop NAS designed for home and small office users. Powered by a Realtek RTD1619B quad-core processor and 2GB DDR4 memory, it delivers reliable data storage, backup, and multimedia streaming. Pre-configured with 24TB of storage (2x 12TB Western Digital Red Plus HDDs), it offers ample space for files, photos, and videos. The DS223 runs on Synology DiskStation Manager (DSM), providing an intuitive interface and a rich ecosystem of applications.

Advantages

This NAS combines powerful hardware with Synology's renowned software. The Realtek RTD1619B processor ensures smooth file transfers and application performance, while the 2GB DDR4 memory supports multitasking. With 2 drive bays, it supports RAID configurations including SHR, RAID 0, and RAID 1 for data protection or performance. The included 24TB of Western Digital Red Plus drives are optimized for NAS environments, offering reliability and low power consumption. The DS223 also features a Gigabit Ethernet port and three USB 3.2 Gen 1 ports for flexible connectivity.

Suitable for

• Home users needing centralized file storage and backup
• Small businesses requiring reliable data management
• Media enthusiasts streaming 4K content
• Surveillance setups with up to 20 IP cameras (2 free licenses)

Key specifications

• Processor: Realtek RTD1619B Quad-Core 1.7GHz
• Memory: 2 GB DDR4 non-ECC
• Drive Bays: 2 (compatible with 3.5" and 2.5" SATA HDD/SSD)
• Included Storage: 24 TB (2x 12TB Western Digital Red Plus)
• Max Raw Capacity: 40 TB (2x 20TB drives)
• Network: 1x Gigabit Ethernet (RJ-45)
• USB Ports: 3x USB 3.2 Gen 1 (1 front, 2 rear)
• RAID Support: SHR, Basic, JBOD, RAID 0, RAID 1
• File Systems: Btrfs, EXT4
• Operating System: Synology DiskStation Manager (DSM)
• Form Factor: Desktop
• Power Consumption: 16.31 W (access)
• Noise Level: 14.6 dB(A)
• Max Concurrent Connections: 500
• Max IP Cameras: 20 (2 free licenses included)

Recommendations

The Synology DS223 RED 24TB is an excellent choice for users seeking a pre-configured, ready-to-use NAS with robust data protection and easy management. Its compact desktop design fits seamlessly into any environment, and the included drives ensure immediate productivity. For optimal performance, pair with a UPS and use Synology's Hyper Backup for offsite backups.
