Tastiera Lenovo 01YP691 francese retroilluminata per ThinkPad P72

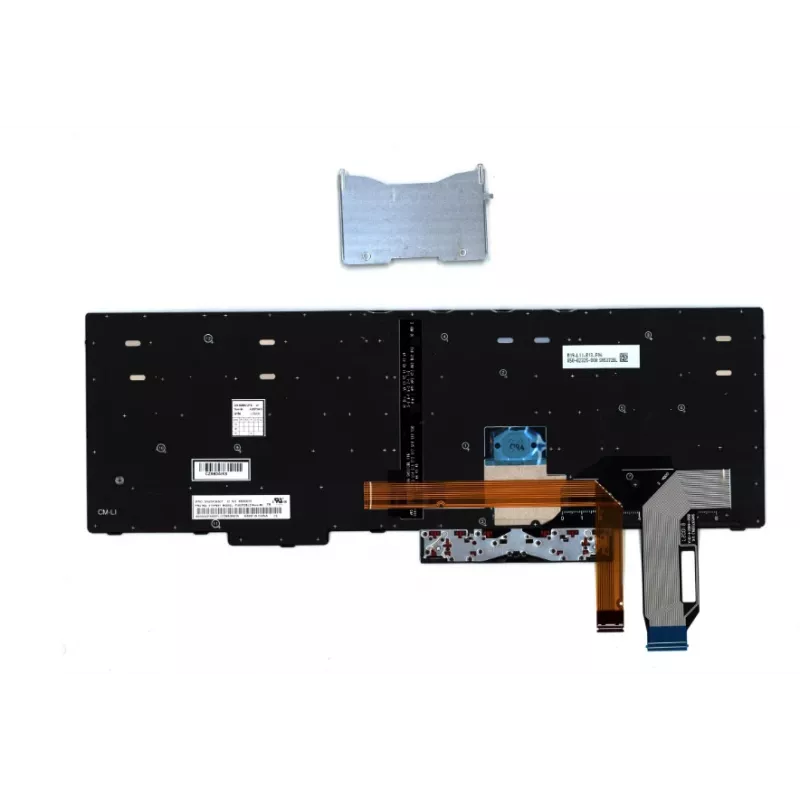

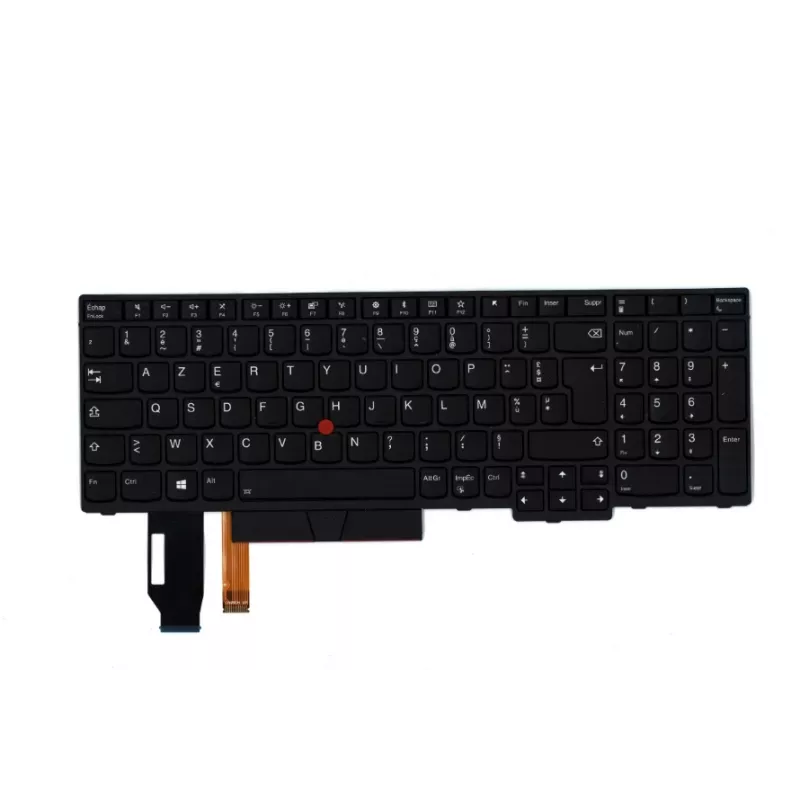

The Lenovo 01YP691 Keyboard is a service replacement part (FRU) designed for the ThinkPad P72. It features a French (AZERTY) layout, black color and integrated backlighting to improve typing visibility in low-light environments. As a Field Replacement Unit, this keyboard is identified by the Lenovo FRU number and can be installed by the user or by a qualified Lenovo field support technician.

Advantages

The backlit French layout provides clear key legibility in dim conditions while preserving the original ThinkPad keyboard fit and connector compatibility. Being an official Lenovo FRU ensures part traceability and compatibility with the P72 model. Its black finish matches the laptop’s original appearance.

Suitable for

• Replacing a defective or worn keyboard on Lenovo ThinkPad P72
• Upgrading to a backlit French (AZERTY) keyboard for improved low-light typing
• Field repairs performed by technicians or skilled users comfortable with FRU replacement

Key specifications

• Manufacturer part number (MPN): FRU01YP691
• EAN: 5706998796264
• Layout: French (AZERTY)
• Backlight: Yes
• Colour: Black
• Compatible model: Lenovo ThinkPad P72

How to use

Power off the laptop and disconnect all power sources before beginning. Remove the P72 bottom cover according to Lenovo service instructions to access the keyboard connector. Carefully disconnect the keyboard cable and detach the old keyboard, then position the replacement FRU01YP691 keyboard, connect the cable securely and reassemble the laptop. If unsure, have the replacement performed by a qualified Lenovo field support technician.

Recommendations

Handle the FRU cautiously to avoid static damage; follow Lenovo’s service manual torque and connector guidelines. Keep screws and small parts organized during disassembly and verify keyboard functionality before fully reassembling the device.
