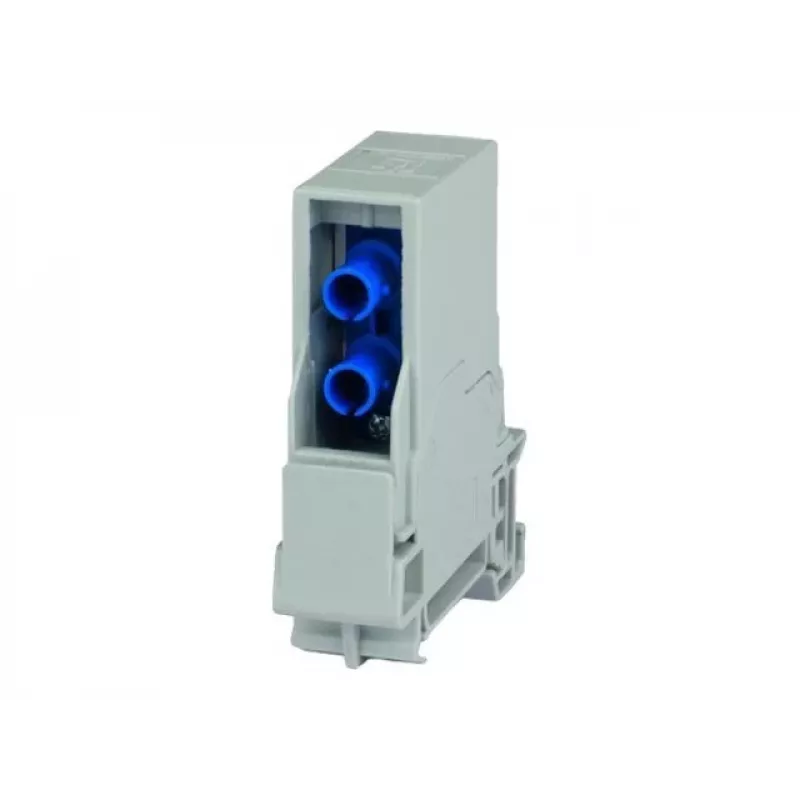

Telegärtner STX Presa per guida DIN, guida DIN, ST multimodale, 2 porte, grigio chiaro H82000A0023

With a typical insertion loss below 0.5 dB and over 1000 mating cycles, this Telegärtner STX mounting rail outlet delivers reliable fiber optic connectivity in industrial environments. It features two ST multimode ports in a compact 1 TE width module, designed for DIN rail (TS35) mounting.

Overview

The H82000A0023 is a modular outlet from the Telegärtner STX system, intended for control cabinets, building automation, and industrial applications. The housing is made of die-cast zinc with a light grey finish (RAL 7035), providing durability and a professional appearance. Cable entry is from the rear, and integrated strain relief ensures secure fiber management. Unused ports are protected by integrated dust shutters.

What stands out

• Two ST multimode ports in a single module
• DIN rail (TS35) mounting for easy installation
• Die-cast zinc housing with light grey finish
• Integrated dust shutters and strain relief
• Wide operating temperature range from -40 °C to +70 °C

Technical details

• Connector type: ST
• Number of ports: 2
• Fiber type: Multimode (MM)
• Mounting type: DIN rail (TS35)
• Housing material: Die-cast zinc
• Color: Light grey (RAL 7035)
• Protection class (front): IP20
• Operating temperature: -40 °C to +70 °C
• Typical insertion loss: < 0.5 dB
• Typical return loss: > 20 dB
• Mating cycles: > 1000
• Compatibility: Telegärtner STX System
• Cable entry: Rear
• Design: Compact, modular, 1 TE width

Our verdict

A robust and compact fiber optic outlet for industrial DIN rail installations, offering reliable ST multimode connectivity with protective features.
