Televes DAT BOSS T-Force LR Antenna direttiva 17 dBi 470-694 MHz Ref. 149721

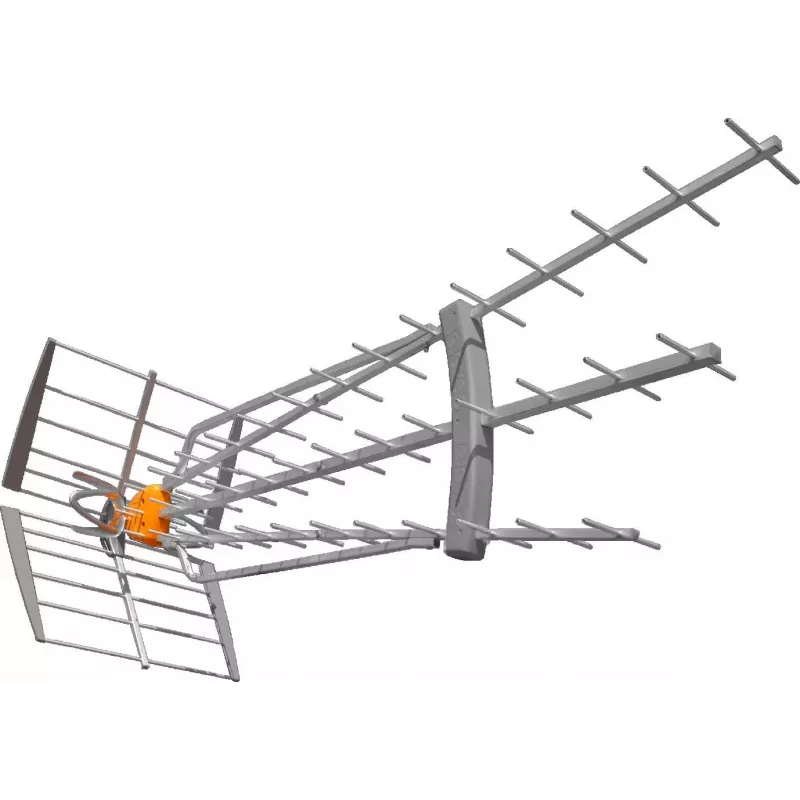

The Televes DAT BOSS T-Force LR is a high-performance directional UHF antenna designed for optimal reception of DVB-T/T2 signals in the 470-694 MHz frequency range (channels 21-48). Featuring innovative BOSS Technology and T-Force design, this antenna delivers exceptional gain and advanced LTE/5G filtering to ensure interference-free reception. The auto-regulated BOSS mode provides up to 38 dBi gain, making it ideal for long-range and challenging reception environments.

Advantages

With a passive gain of 17 dBi and BOSS mode gain up to 38 dBi, the DAT BOSS T-Force LR offers superior signal amplification. The integrated LTE/5G filter (C48/700MHz) effectively blocks unwanted interference, while the low noise figure of 1.2 dB ensures excellent signal quality. The antenna is built with durable aluminium and ABS plastic, and features a configurable horizontal/vertical polarization for flexible installation.

Suitable for

• Long-range DVB-T/T2 reception in rural or suburban areas
• Installations requiring high gain and interference rejection
• Professional and consumer antenna setups

Key specifications

• Antenna Type: UHF Directional
• Frequency Range: 470-694 MHz (Channels 21-48)
• Passive Gain: 17 dBi
• BOSS Mode Gain: Up to 38 dBi (Auto-regulated)
• Max Output Level (BOSS): 115 dBµV
• Noise Figure: 1.2 dB
• LTE/5G Filtering: Yes (C48/700MHz)
• Power Supply (BOSS): 12-24 Vdc
• Current Consumption (BOSS): 45 mA (max)
• Front-to-Back Ratio: >20 dB
• Horizontal Beamwidth: 30°
• Wind Load (130 km/h): 120 N
• Connector Type: F-type
• Polarization: Horizontal/Vertical (configurable)
• Mounting: Mast clamp (Ø20-50mm)
• Material: Aluminium, ABS Plastic

Recommendations

For optimal performance, use with a Televes BOSS-compatible power supply and ensure proper mast mounting. The antenna is designed for outdoor placement and can withstand wind loads up to 130 km/h.
