TELTONIKA NETWORKS alimentatore 15W per guida DIN, 24 VDC

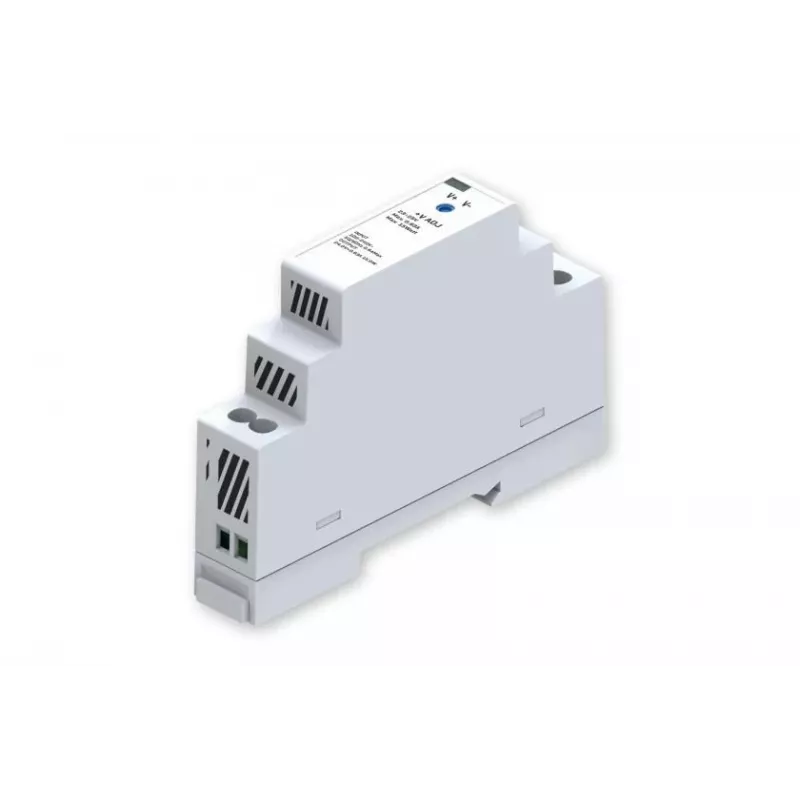

The TELTONIKA NETWORKS 15W DIN Rail Power Supply is a compact and reliable industrial power source that converts wide-range AC or DC input into a stable 24 VDC output for automation systems, IoT gateways, and control equipment. With its slim 17.5 mm profile, it easily mounts on standard TS-35 DIN rails, saving valuable cabinet space.

Advantages

This power supply delivers exceptional performance in a space-saving design. It offers a wide input range of 85–264 VAC or 120–370 VDC, making it suitable for global use. The high efficiency of 85% reduces energy losses and heat generation, ensuring long-term reliability. Built-in protections against short circuits, overloads, and over voltages safeguard both the power supply and connected equipment. Additionally, the output voltage is adjustable from 21.6 to 29 V, providing flexibility for various applications.

Suitable for

• Industrial control cabinets and automation panels
• Building management systems and HVAC controls
• Telecommunications and network infrastructure
• IoT gateways and edge computing devices
• Security and access control systems

Key specifications

• Output Power: 15.12 W
• Output Voltage: 24 VDC
• Output Current: 0.63 A
• Input Voltage Range: 85–264 VAC / 120–370 VDC
• Efficiency: 85%
• Mounting Type: DIN Rail (TS-35/7.5 or TS-35/15)
• Width: 17.5 mm (1 SU)
• Protection Features: Short Circuit, Overload, Over Voltage
• Operating Temperature: -30 ~ +70 °C
• Adjustable Output Voltage: Yes (21.6 ~ 29 V)
• Ripple & Noise: 150 mVp-p
• Isolation Voltage: 3 kVAC (Input to Output)
• Safety Standards: UL 61010-1, TUV EN61010-1, CB IEC61010-1
• EMC Standards: EN55032 Class B, EN61000-3-2 Class A
• Housing Material: Plastic
• Cooling Method: Free air convection
• MTBF: >700,000 hours
• Power Class: Class II (no FG)

Recommendations

Ensure the power supply is installed in a well-ventilated area, and avoid covering the unit to prevent overheating. Verify that the total load does not exceed 15W (0.63 A) and that the input voltage is within the specified range. Use appropriately sized wiring and comply with local electrical codes for a safe and efficient installation.
