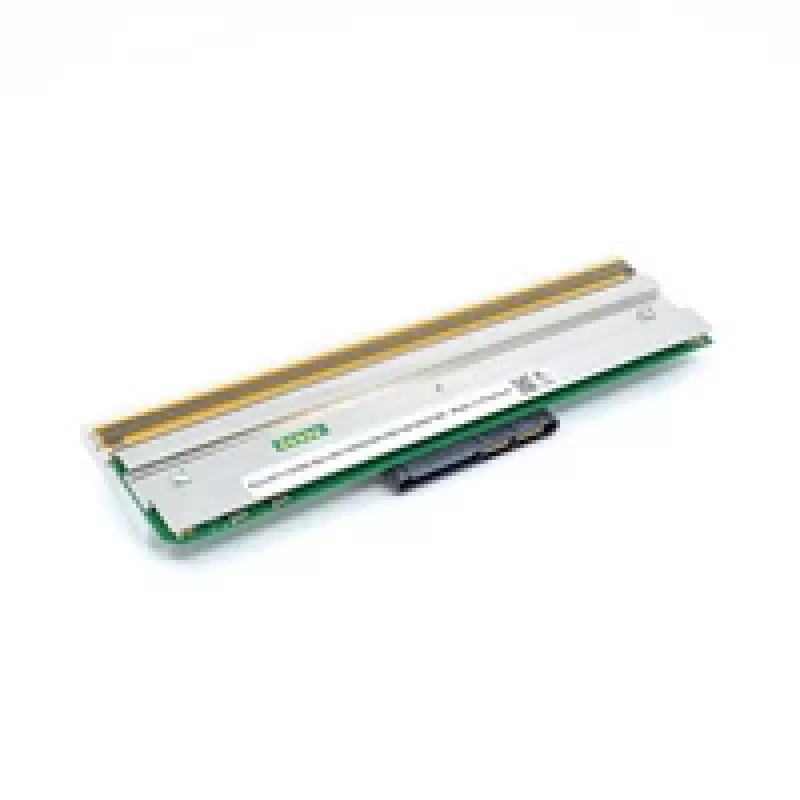

Testina di stampa Zebra ZE511 203 DPI, montabile a sinistra e a destra

Replacement print head for Zebra ZE511 series with 203 DPI (8 dots/mm) resolution. Compatible with left and right mounting orientation, this printhead is intended for thermal transfer and direct thermal printers in the ZE511 family to restore printing performance for barcodes, text and graphics.

Advantages

The print head provides consistent 203 DPI print quality and is compatible with both left- and right-side mounting, which reduces the need to stock multiple part variants. It is a direct replacement part that supports standard barcode, text and graphic printing modes used in ZE511 printers, helping to minimize downtime during maintenance and repairs.

Suitable for

• On-site service repairs of Zebra ZE511 printers
• Maintenance and preventive replacement to restore print quality
• Replacement in thermal transfer or direct thermal printing setups
• Downtime reduction in labeling operations using ZE511 models

Key specifications

• Manufacturer: Zebra
• Model compatibility: ZE511 series
• Resolution: 203 DPI (8 dots/mm)
• Mounting: compatible with left and right mounting
• Part number (MPN): P1112750-009

How to use

Power off the printer and follow the ZE511 service manual for safe removal of the old print head. Install the replacement printhead in the correct left or right orientation as required by the printer model, secure connectors and fittings, then power on and run a test print or calibration procedure to verify alignment and print quality.

Recommendations

Use ESD precautions during handling, avoid touching the heating elements, and perform test prints after installation. Replace the printhead when print quality degrades or as part of scheduled maintenance to maintain reliable barcode and label output.
