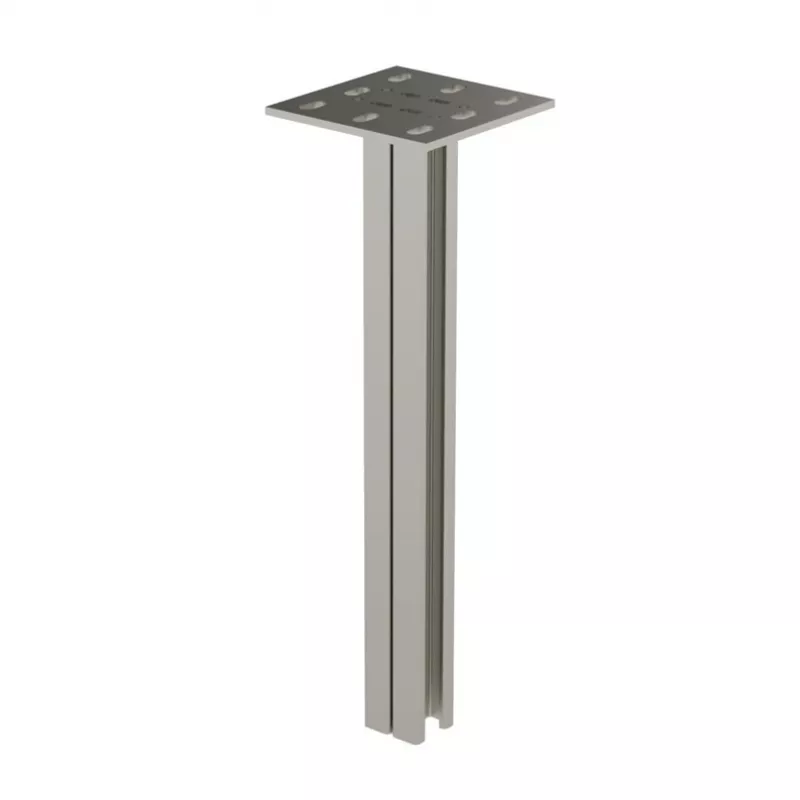

TP2-1000 HDG supporto a soffitto - acciaio zincato a caldo, 1000 mm, supporto portacavi pesante

The TP2-1000 HDG Ceiling Bracket is a robust, heavy-duty support solution designed for cable tray and cable ladder systems. Manufactured from high-quality steel with a hot-dip galvanized (HDG) finish, this bracket offers exceptional corrosion resistance, making it suitable for both indoor and outdoor installations in harsh environments. With a 1000 mm horizontal arm and a U-profile design, it provides reliable support for substantial cable loads. This ceiling mount bracket is part of the TP2 series and conforms to EN 61537 standards, ensuring compatibility with Draka/Prysmian cable management systems and other standard cable trays.

Advantages

Hot-dip galvanized finish provides superior corrosion resistance, extending product lifespan in demanding environments. The heavy-duty construction supports large cable bundles, reducing the need for additional supports. Easy ceiling mounting with two 11 mm mounting points (M10 bolts) simplifies installation. The 1000 mm arm length offers ample space for cable routing and organization.

Suitable for

• Industrial cable management in factories and warehouses
• Outdoor installations such as power plants, substations, and telecommunications sites
• Commercial buildings requiring robust cable support in ceilings
• Data centers and server rooms with heavy cable loads

Key specifications

• Product Type: Ceiling Bracket
• Material: Steel
• Finish: Hot-Dip Galvanized (HDG)
• Length (Horizontal Arm): 1000 mm
• Profile Type: U-profile
• Material Thickness: 2.0 mm
• Mounting Type: Ceiling Mount
• Mounting Hole Diameter: 11 mm (for M10 bolts)
• Number of Mounting Points: 2
• Load Capacity: Heavy-duty
• Standard Compliance: EN 61537
• Color: Metallic Grey
• Series: TP2 Series

Recommendations

For optimal performance, use appropriate ceiling anchors and fasteners (not included) rated for the intended load. Ensure the mounting surface can support the bracket and cable weight. This bracket is designed for use with Draka/Prysmian cable management systems but is compatible with most standard cable trays and ladders.
