Trasmettitore di rete EXSYS EX-6002POE

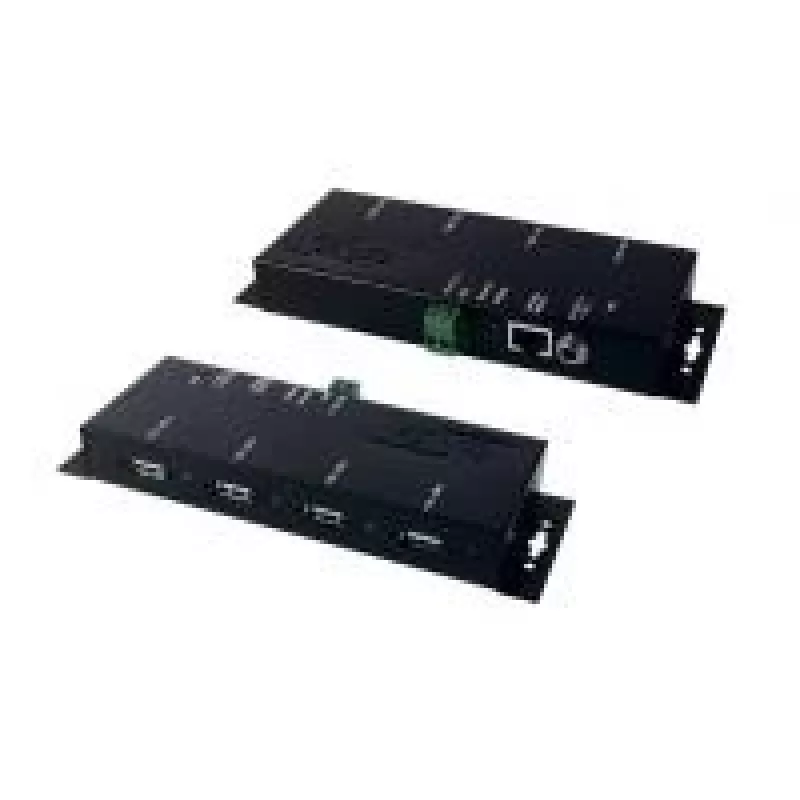

The EXSYS EX-6002PoE is a network transmitter that enables sharing of up to four USB 2.0 devices—such as external enclosures, flash drives, scanners or USB printers—over a 10/100/1000 Mbps Ethernet network. It provides USB-over-IP functionality with either fixed IP or DHCP client support, and can operate via Power over Ethernet (PoE) to avoid the need for an external power adapter. The unit is built in a metal case with screw-lock connectors for the four USB 2.0 ports and the power connector, and it can be mounted in a 19" rack using the included DIN-rail kit. A configuration utility with an intuitive GUI is supplied for device setup, monitoring and firmware upgrades.

Advantages

The EX-6002PoE delivers reliable network connectivity for USB 2.0 peripherals with Gigabit Ethernet support and the Elite E3868M4 chipset. It supports file, scan and print server modes, offers four high-speed USB 2.0 ports, and allows selection of fixed IP or DHCP. The metal enclosure and screw-lock connectors increase physical security and durability, while PoE operation permits installation without a dedicated power supply. Rack- and DIN-rail-mountable design simplifies integration into structured environments.

Suitable for

• Connecting USB printers and multifunction printers (MFP) to a network
• Sharing USB scanners and scan servers across multiple workstations
• Accessing external USB hard drives, flash drives and card readers over IP
• Deployments requiring PoE-powered USB device extension
• Industrial or rack-mounted installations that need screw-lock connectors

Key specifications

• Model: EXSYS EX-6002PoE (MPN: EX-6002POE)
• Network: 10/100/1000 Mbps Ethernet (IEEE 802.3ab, IEEE 802.3u)
• Chipset: Elite E3868M4
• USB: Four USB 2.0 high-speed ports
• Power: Supports Power over Ethernet (PoE); internal supply: 5 V, 2 A
• Dimensions: 120 mm x 60 mm x 23 mm
• Enclosure: Metal case with screw-lock connectors
• Mounting: 19" rack support with DIN-rail kit
• IP configuration: Fixed IP or DHCP client

How to use

Connect the EX-6002PoE to your Ethernet network using a Gigabit network cable and attach up to four USB 2.0 peripherals to the screw-lock USB ports. If PoE is available on your switch or injector, the device will power on without an external adapter; otherwise supply 5 V/2 A via the power connector. Use the supplied configuration utility to assign a fixed IP or enable DHCP, configure device sharing modes (file, scan, print) and perform firmware updates. When configured, access the connected USB devices over the network using the vendor software or standard network printer/scan clients as appropriate.

Recommendations

For stable operation, install the EX-6002PoE on a structured network with a Gigabit switch and enable PoE where possible. Secure the USB connections with the screw-lock features in environments with vibration or tampering risk. Do not attempt to use the device simultaneously over TCP/IP and direct USB; choose one mode per session.
