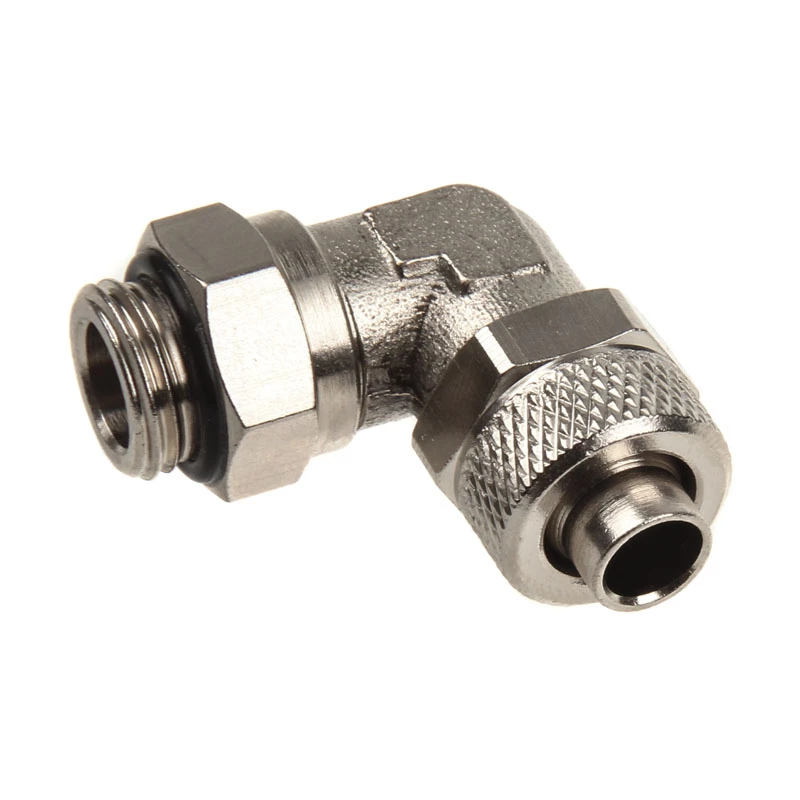

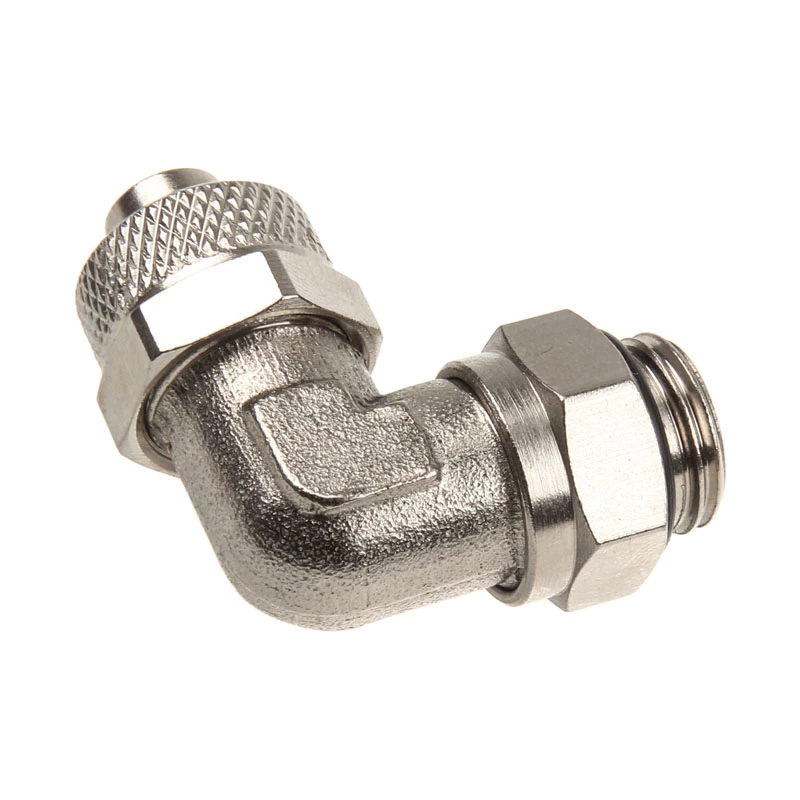

Ugello a vite AquaTuning 10/8mm G1/4 orientabile

The AquaTuning screw-on nozzle 10/8mm with G1/4 thread is a compact rotatable fitting designed for liquid cooling and water-cooling systems. It provides a secure connection between hose and threaded port while allowing the outlet to rotate so the hose can be oriented without twisting. The fitting is intended for use in PC cooling loops and custom plumbing where space is limited or precise hose routing is required.

Advantages

The rotatable design permits adjustment of the hose exit angle after installation, reducing mechanical stress on the hose and connectors. The screw-on mount ensures a tight, leak-resistant connection when used with compatible soft tubing of 10/8mm inner/outer dimensions. Its compact form factor saves space in confined assemblies and simplifies routing in tight corners or around other components.

Suitable for

• PC liquid cooling loops and radiators
• Custom water-cooling builds with 10/8mm soft tubing
• Small plumbing runs and tight installation spaces
• Applications requiring adjustable hose orientation without twisting

Key specifications

• Connection type: screw-on nozzle with G1/4 threaded interface
• Hose compatibility: designed for 10/8mm soft tubing (10 mm inner, 8 mm outer as specified)
• Rotatable outlet: allows rotation after mounting for flexible hose routing
• Material: metal construction for mechanical stability (verify exact alloy with manufacturer)
• Application: intended for liquid cooling and water-cooling systems

How to use

Prepare the threaded port by ensuring threads are clean and, if required, apply appropriate sealing (O-rings or approved thread sealant) per system design. Slide the 10/8mm tubing onto the nozzle until it seats fully, and secure according to tubing type—use clamps or compression where applicable. Screw the fitting into the G1/4 port until hand-tight, then rotate the nozzle body to the desired hose orientation; tighten to the recommended torque if specified by the system or component manufacturer. Check all connections for leaks before regular operation.

Recommendations

Use compatible 10/8mm soft tubing and confirm sealing methods for your cooling loop. Avoid excessive torque on the threaded connection and do not bend the tubing sharply near the nozzle to prevent kinks. Periodically inspect the fitting and hose for wear or leaks as part of routine maintenance.
