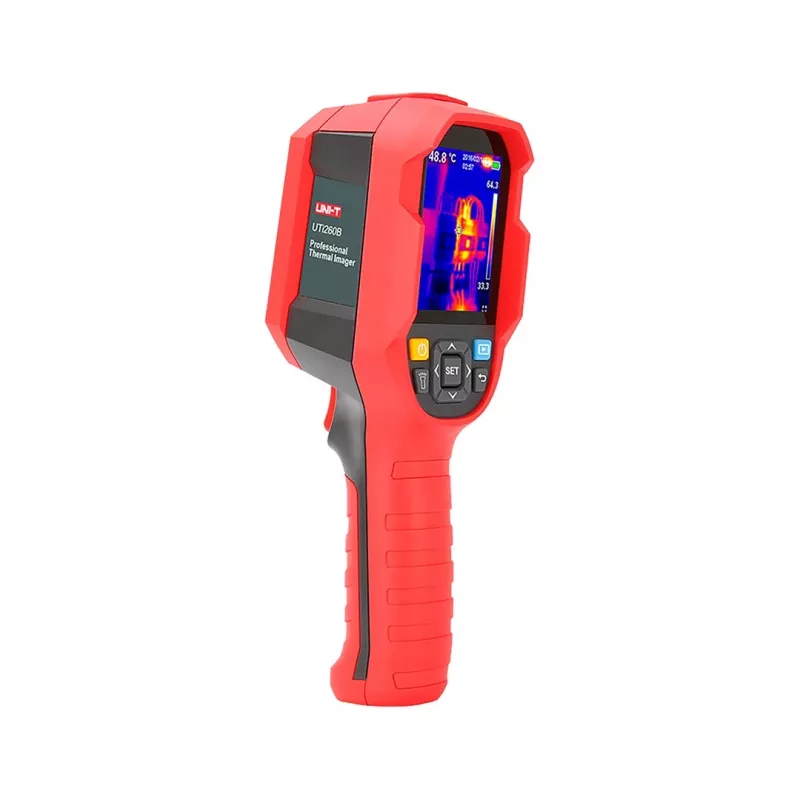

Uni-T UTi260B termocamera 256x192 IR da -20°C a 550°C IP65

The Uni-T UTi260B is a professional handheld thermal imaging camera designed for electrical, mechanical, and building diagnostics. With a 256x192 infrared resolution and a wide temperature range of -20°C to 550°C, it delivers precise thermal analysis for preventive maintenance and fault detection.

Advantages

High-resolution thermal sensor with <50mK thermal sensitivity ensures accurate temperature measurement. The 2.8-inch IPS LCD display provides clear image viewing, while the built-in 640x480 visible light camera enables fusion and picture-in-picture modes. IP65 rating and 2-meter drop test resistance make it durable for harsh environments.

Suitable for

• Electrical panel inspection and troubleshooting
• HVAC system diagnostics
• Building envelope and insulation analysis
• Mechanical equipment monitoring

Key specifications

• Infrared Resolution: 256 x 192 pixels
• Temperature Range: -20°C to 550°C
• Thermal Sensitivity (NETD): <50mK
• Frame Rate: 25Hz
• Field of View: 56° x 42°
• Display: 2.8-inch IPS LCD
• Visible Camera: 640 x 480 pixels
• Image Modes: Thermal, Visible, Fusion (PiP)
• Emissivity Adjustment: 0.01-0.99
• Storage: MicroSD up to 32GB
• Battery Life: Up to 6 hours
• Connectivity: USB Type-C
• IP Rating: IP65
• Drop Test: 2 meters
• Laser Pointer: Yes
• Measurement Functions: Center spot, hot/cold spot tracking, area measurement
• Temperature Alarm: High/Low alarm

Recommendations

For optimal results, use a high-quality MicroSD card (Class 10 or above) and ensure the lens is clean before each measurement. Calibration is recommended annually for critical applications.
