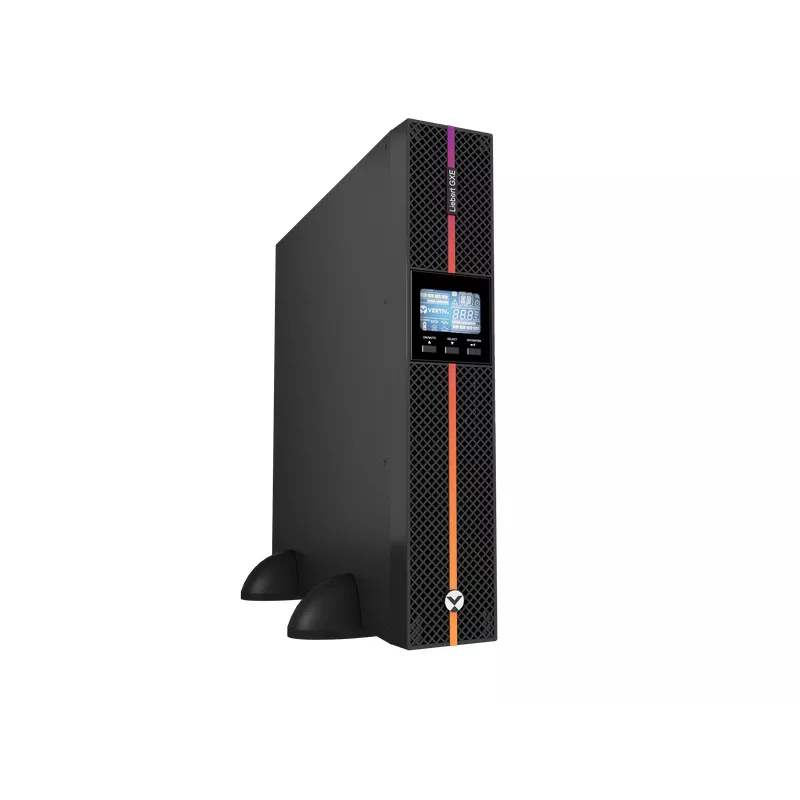

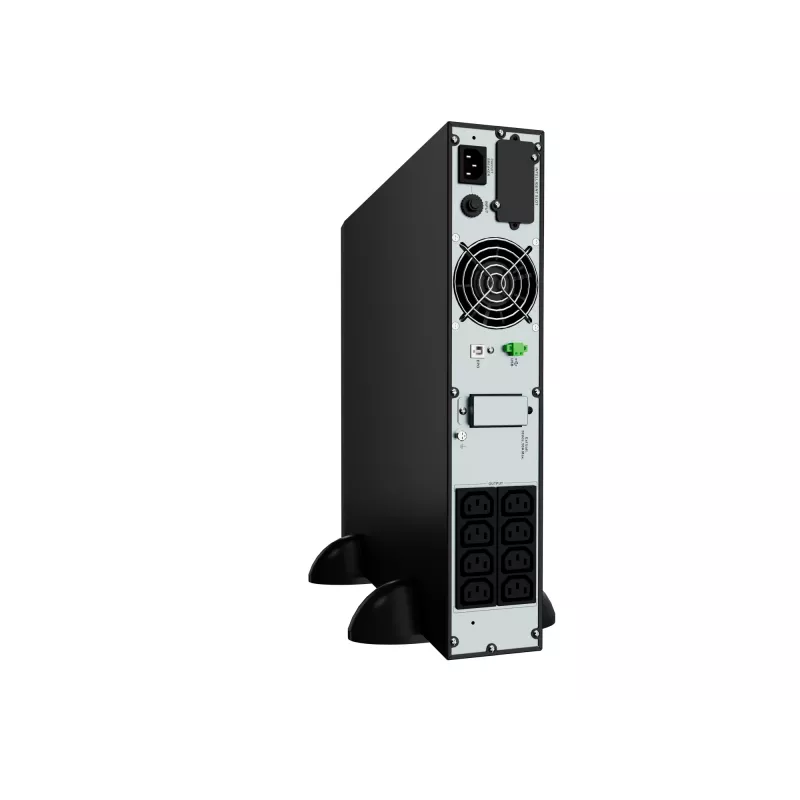

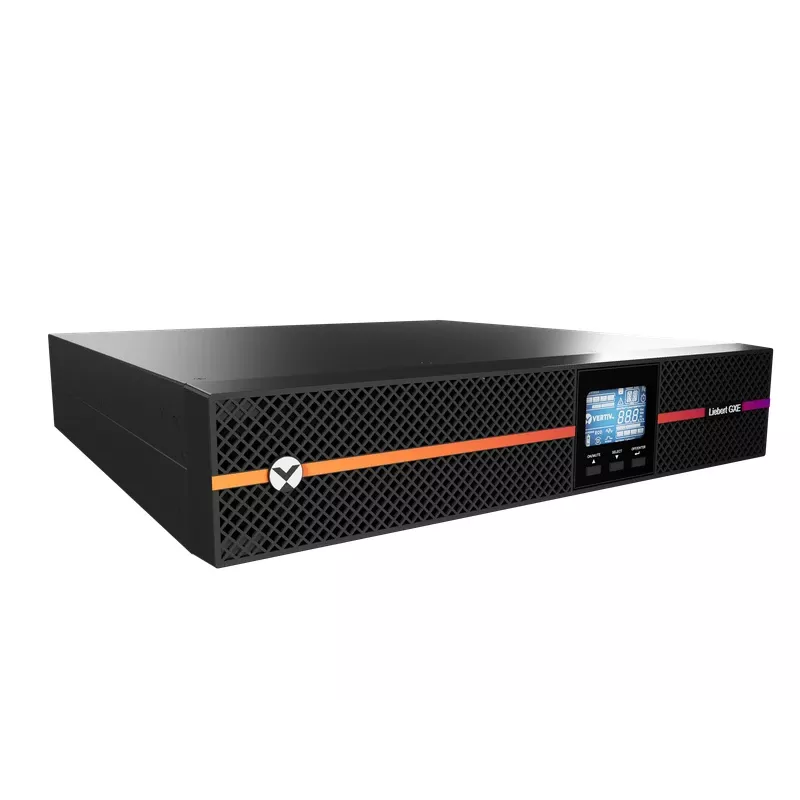

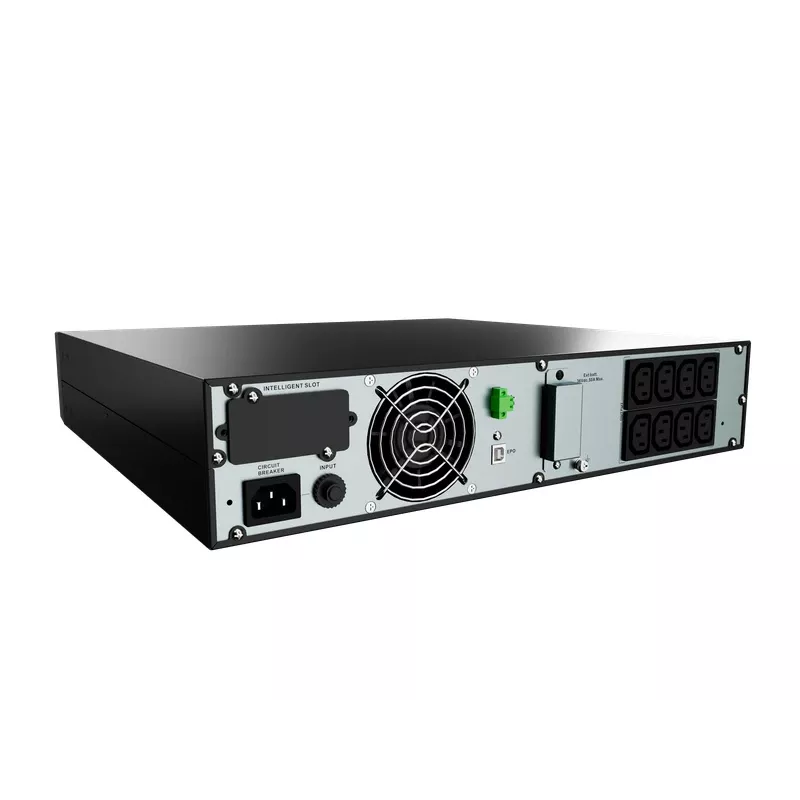

Vertiv Liebert GXE3-2000IRT2UXL Gruppo di continuità (UPS) doppia conversione (online) 2 kVA 1800 W 8 uscite AC

The Vertiv Liebert GXE3-2000IRT2UXL is a 2 kVA / 1800 W double-conversion online UPS designed for rack or tower installation. It provides reliable conditioned power through 8 AC outlets and uses sealed lead-acid battery technology. The unit supports external battery cabinets for extended runtime and offers a compact 2U rack form factor with dimensions 438 mm (W) × 430 mm (D) × 86 mm (H) and a weight of 22.7 kg.

Advantages

The GXE UPS delivers a high output power factor (0.9 PF) and online double-conversion topology for continuous voltage and frequency regulation. It supports scalable runtime with up to four external battery cabinets and achieves high operating efficiency, including up to 95% in ECO mode, to reduce energy and operational costs. Flexible rack/tower mounting and optional network management card enable adaptable installation and remote monitoring or controlled server shutdown.

Suitable for

• Edge IT equipment and small server racks
• Remote sites and branch offices
• Financial, government, and manufacturing critical systems
• Infrastructure requiring short to medium backup times with scalable extension

Key specifications

• Model: Vertiv Liebert GXE3-2000IRT2UXL
• Output power: 1800 W
• Apparent power: 2 kVA
• Output power factor: 0.9 PF
• AC outlets: 8
• Battery type: sealed lead-acid
• Typical backup time: ~3.2 minutes at full load, ~9 minutes at half load
• Form factor: 2U rack / tower convertible
• Dimensions (W×D×H): 438 × 430 × 86 mm
• Weight: 22.7 kg
• Colour: Grey

How to use

Install the unit in a 19-inch rack occupying 2U or place it on a stable surface in tower orientation, following the manufacturer’s mounting instructions. Connect critical equipment to the UPS AC outlets and plug the UPS into a dedicated AC mains circuit. For extended runtime, connect compatible external battery cabinets according to the supplied cabling and configuration procedures. If remote management is required, install the optional network management card and configure network settings to enable monitoring and controlled shutdown of connected servers.

Recommendations

Place the UPS in a ventilated, dust-free environment within the specified ambient temperature range; perform periodic battery tests and replace batteries according to Vertiv guidelines to ensure reliable backup performance.
