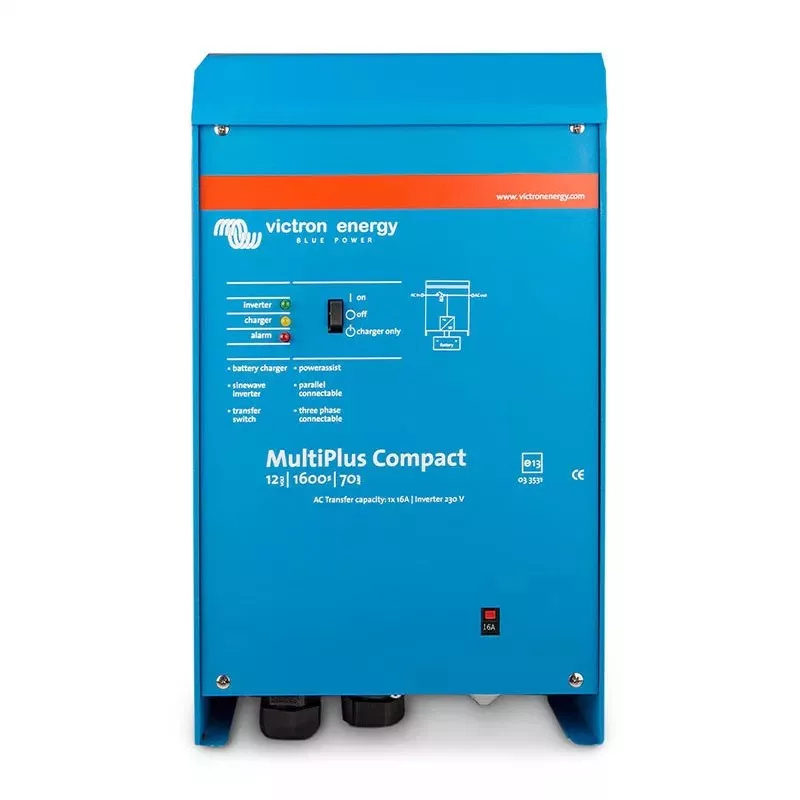

Victron Energy MultiPlus C 12/1600/70-16 inverter/caricabatterie

The Victron Energy MultiPlus C 12/1600/70-16 is a compact and powerful inverter/charger that combines a 12V DC to 230V AC pure sine wave inverter, a sophisticated battery charger, and a high-speed AC transfer switch in a single unit. Designed for mobile and off-grid applications, it delivers reliable power conversion and intelligent battery management.

Advantages

True sine wave inverter ensures clean power for sensitive electronics. PowerAssist technology prevents overload of limited AC sources by supplementing with battery power. Parallel and 3-phase operation allows scalability up to 6 units for higher power demands. Comprehensive protection features safeguard the unit and connected equipment.

Suitable for

• Marine and RV installations
• Off-grid solar systems
• Vehicle and mobile power systems
• Backup power for small offices or workshops

Key specifications

• DC Input Voltage: 12 V
• Inverter Continuous Power (25°C): 1300 W
• Inverter Continuous Power (40°C): 1100 W
• Inverter Peak Power: 3000 W
• Inverter Output: 230 VAC, 50 Hz, True Sine Wave
• Battery Charger Current: 70 A
• AC Transfer Switch Current: 16 A
• Maximum Efficiency: 92%
• Zero-load Power: 10 W
• Operating Temperature: -40 to +65°C
• Protection: Output short circuit, overload, battery voltage high/low, temperature high, DC ripple high
• Communication: VE.Bus
• Enclosure: IP21

Recommendations

For optimal performance, use with appropriate battery bank and ensure adequate ventilation. Consult the manual for installation guidelines and configuration via VE.Bus.
