Videocitofono Fanvil i504 con LCD 17,8 cm (7"), 1024×600, 1080p, Fast Ethernet, nero

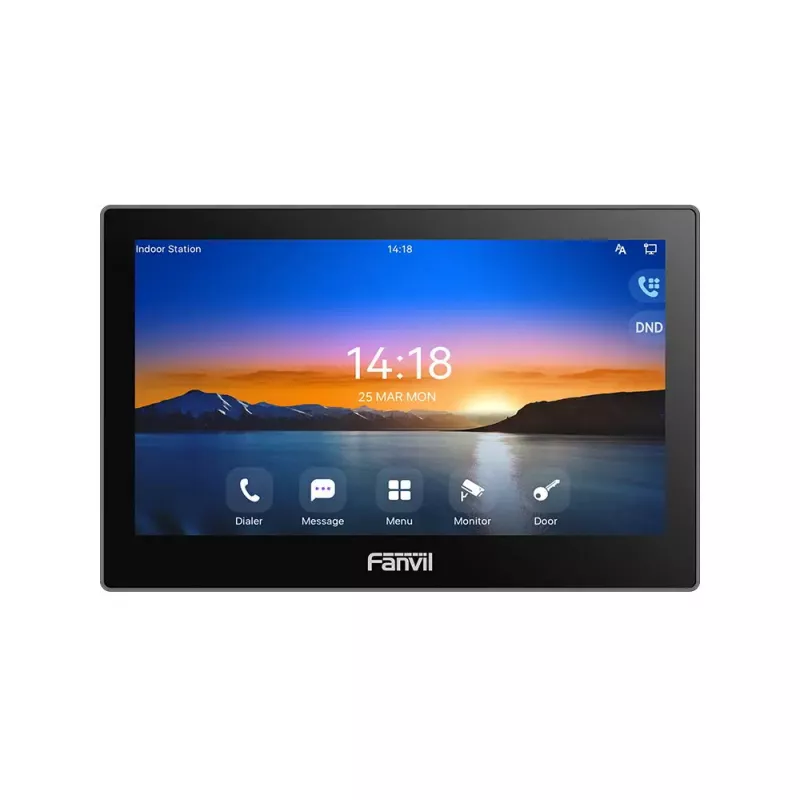

The Fanvil i504 is a 7-inch indoor video intercom station with a 17.8 cm (7") color capacitive touch screen and a resolution of 1024×600. It supports video input up to 1080p (1920×1080) and connects over Fast Ethernet (10/100 Mbit/s) with IEEE 802.1x support. The unit is powered via PoE or an external DC source and features a built-in 2 W speaker with codecs including G.722 and OPUS. Housed in ABS plastic and finished in black, the i504 is intended for indoor entry control in apartments, offices, reception areas and residential buildings where clear video and two-way audio communication is required.

Advantages

The capacitive 7-inch touchscreen simplifies interaction with the system while supporting real-time video monitoring from door phones and third-party IP cameras. Multiple expansion interfaces allow integration with sensors and security devices for comprehensive monitoring, and PoE support reduces cabling needs. The built-in speaker with AEC and support for high-quality voice codecs enables clear hands-free two-way calling.

Suitable for

• Residential communities and apartment entry systems
• Villas and private houses
• Office buildings and reception desks
• Indoor access control points requiring video verification

Key specifications

• Display: 17.8 cm (7") color capacitive LCD, 1024×600
• Maximum supported video input: up to 1920×1080 (1080p)
• Network: Fast Ethernet 10/100 Mbit/s with IEEE 802.1x support
• Power: PoE or external DC power
• Audio: Built-in 2 W speaker, AEC, voice codecs G.722 and OPUS
• Interfaces: multiple expansion interfaces for sensors and third-party IP cameras
• Installation environment: Indoor use
• Housing material and color: ABS plastic, black finish

How to use

Install the i504 in an indoor location near the entry point and connect it to the local network using a Fast Ethernet cable. Power the unit either through a PoE-enabled switch or an appropriate external DC adapter. Configure network and camera settings via the on-screen touch interface, add third-party IP cameras or door phones through the available interfaces, and set up user permissions and alarm inputs as required. Use the touchscreen to view live video, answer calls, and operate remote door release functions.

Recommendations

Place the unit at eye level for optimal view of the display, ensure network stability for reliable video streaming, and use PoE when possible to simplify installation. For best audio clarity, position the station away from loud machinery and configure echo cancellation in system settings if needed.
