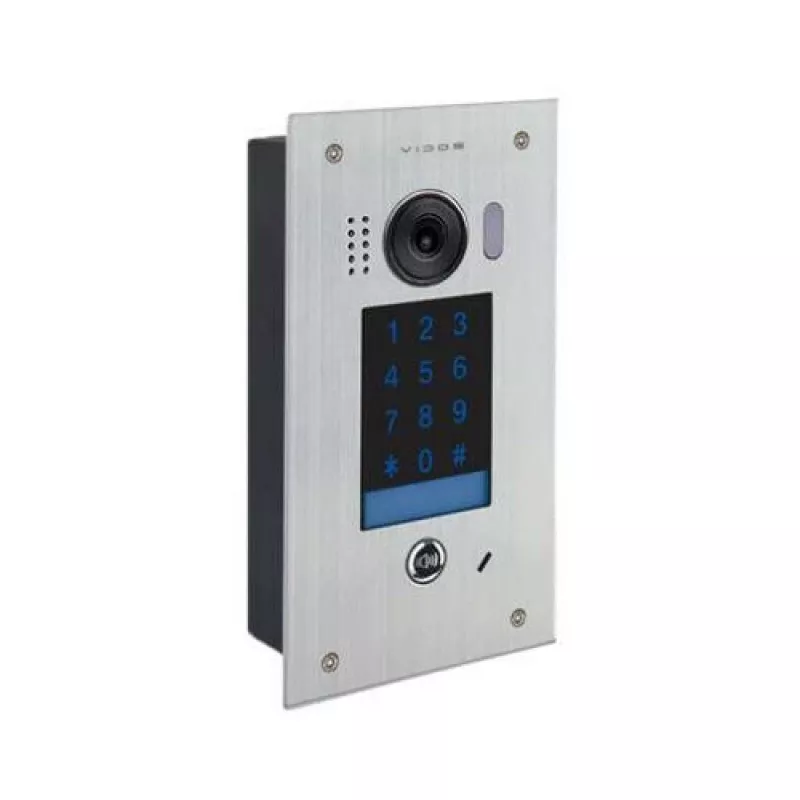

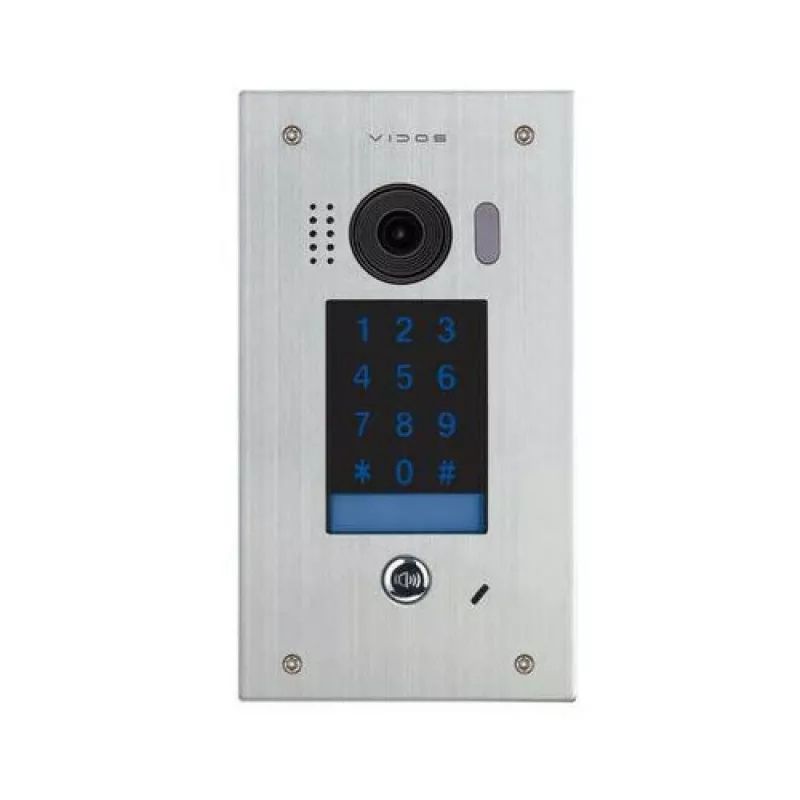

VIDOS DUO S1401D postazione esterna – Full HD 1080p, 2 fili, argento

The VIDOS DUO S1401D is a single-subscriber gate station with a built-in touch keypad for code-based entry. It features a 2.0 Mpix camera with a 170° lens angle and a vandal-resistant stainless steel front panel.

Key features

• Vandal-resistant stainless steel housing
• Flush-mounted installation
• 2.0 Mpix camera with 170° lens angle
• Built-in code lock with touch keypad
• Illuminated nameplate
• Touch, backlit numeric keypad
• RGB backlight colour adjustable during call, conversation and entry
• LED night lighting

Specifications

• Brand: Vidos
• Model: S1401D
• Power supply: 24V DC
• Electric strike power supply: 12V DC max. 250mA
• Power consumption: 0.96W standby / 3.84W operation
• Relay outputs: 1 or 2 with B5 module
• Video signal parameters: 1Vp-p 75 ohm CCIR
• Maximum relay contact load: 6A
• Resolution: 2.0 Mpix
• Lens angle: 170°
• Mounting method: flush-mounted
• Operating temperature range: -18°C ~ +55°C
• Protection degree: IP54
• External dimensions: 220 x 120 x 50mm
