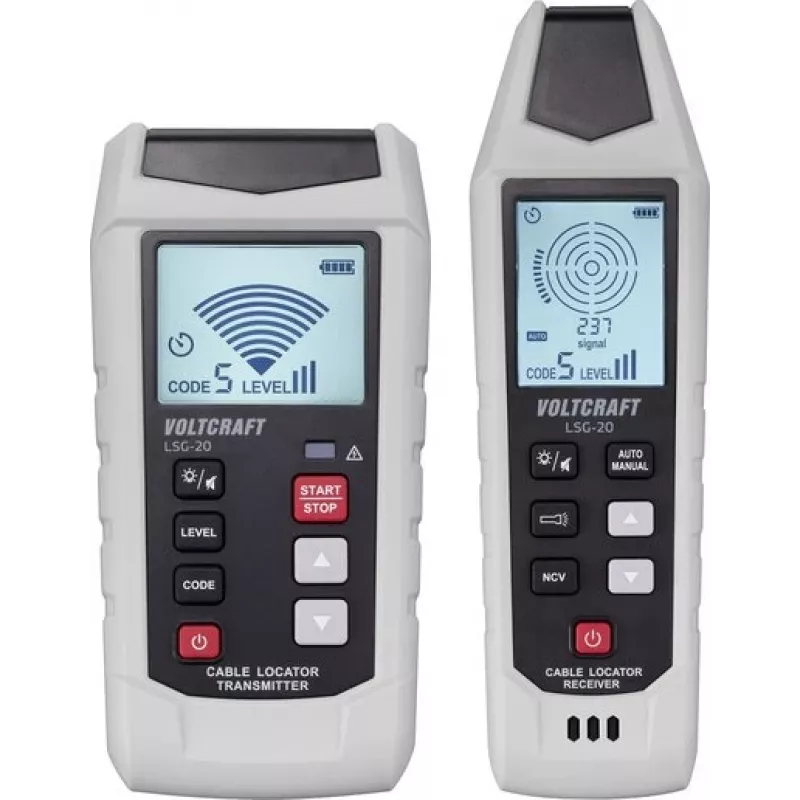

VOLTCRAFT LSG-20 Set localizzatore di cavi e tester di linee VC-17662355

Tracking down cables in walls, identifying individual wires in a bundle, or verifying continuity can quickly become a frustrating guessing game. The VOLTCRAFT LSG-20 Cable Finder and Line Tester Set eliminates that uncertainty with a professional-grade transmitter and receiver combination that accurately traces and identifies lines, even when they are hidden or unlabeled.

Who is it for

This tool is built for electricians, network technicians, and maintenance personnel who need reliable cable identification and fault detection on a daily basis. It is equally useful for advanced DIYers working on home wiring, structured cabling, or automotive electrical systems.

Main features

• Transmitter and receiver set for tracing and identifying cables, wires, and lines
• Supports RJ11, RJ45, and crocodile clip connections for versatile testing
• Acoustic and visual signal indication with LEDs for signal strength and polarity
• Passive voltage detection up to 60 V DC for safe non-contact testing
• Continuity, short circuit, and polarity testing functions
• Compact, portable design with included carrying case

Specifications

• Product type: Cable finder / line tracer set
• Signal output: Square wave, approx. 1.5 kHz
• Max. passive test voltage: 60 V DC
• Transmitter connections: RJ11, RJ45, crocodile clips
• Receiver indication: Acoustic (speaker) and visual (LEDs)
• Power supply: 1x 9V block battery (6LR61) per unit (not included)
• Operating temperature: 0 to +40 °C
• Storage temperature: -10 to +50 °C
• Operating relative humidity: 10 - 80 % RH (non-condensing)
• Safety standard: EN 61010-1
• Included accessories: RJ11 cable, RJ45 cable, adapter cable with crocodile clips, carrying case

Tips

For best results, ensure the transmitter and receiver batteries are fresh and of the same type. When tracing cables in walls, keep the receiver perpendicular to the cable run and move slowly to pinpoint the signal. Always verify the circuit is de-energized before connecting the transmitter directly to conductors.
