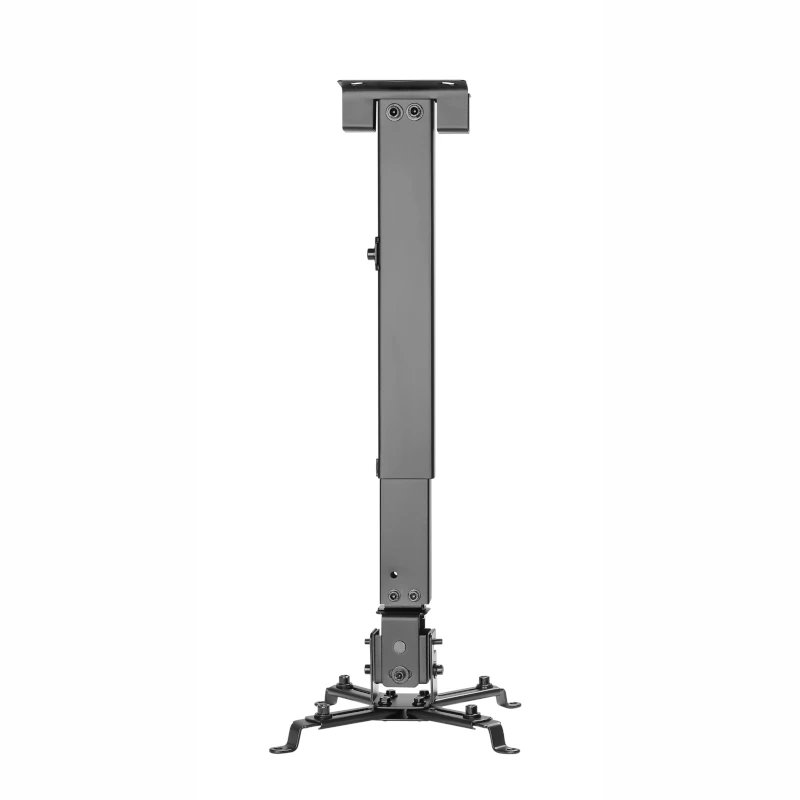

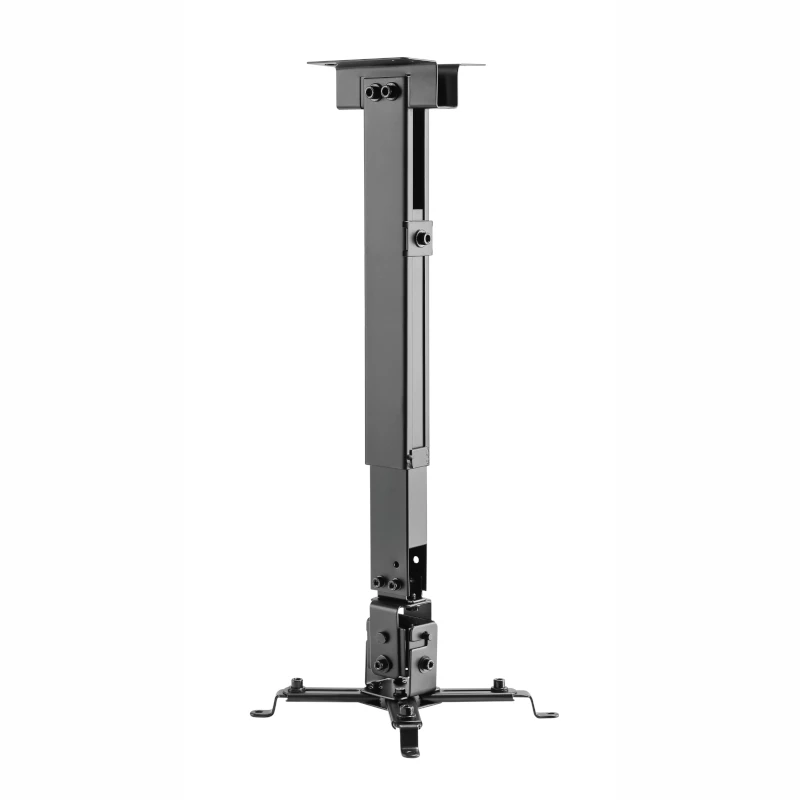

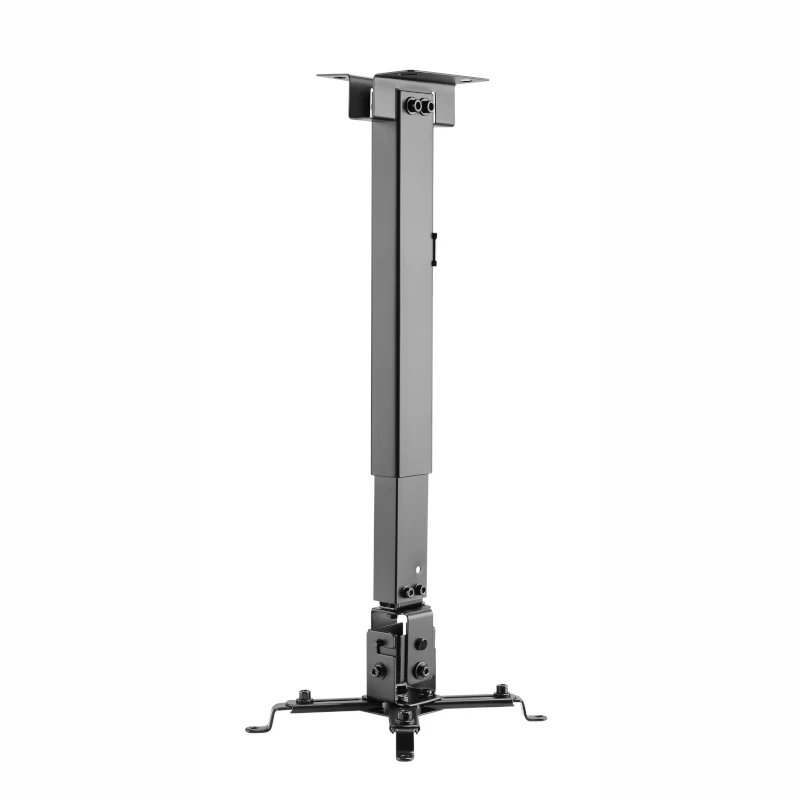

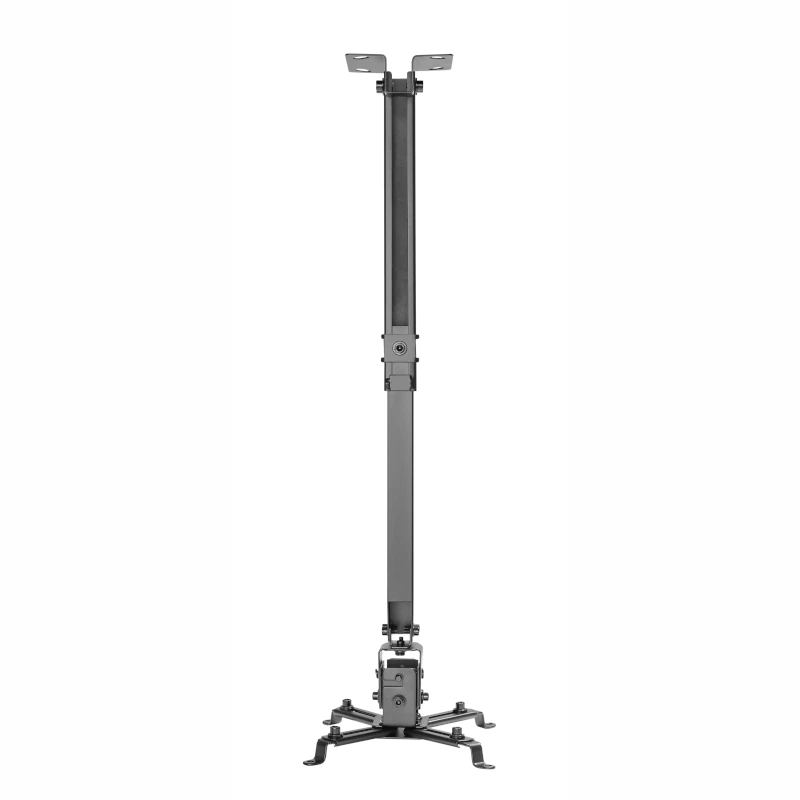

WINX MOUNT Simple Staffa per proiettore regolabile

The WINX MOUNT Simple Adjustable Projector Bracket is a steel bracket for ceiling or wall installation, supporting projectors up to 20 kg. It allows tilting up to 15° forward and back and swivelling up to 8° left and right, with an adjustable extension length from 430 mm to 650 mm.

Key features

• Supports projectors up to 20 kg
• Tilt range: up to 15° forward and back
• Swivel range: up to 8° left and right
• Extension range: 430 mm – 650 mm

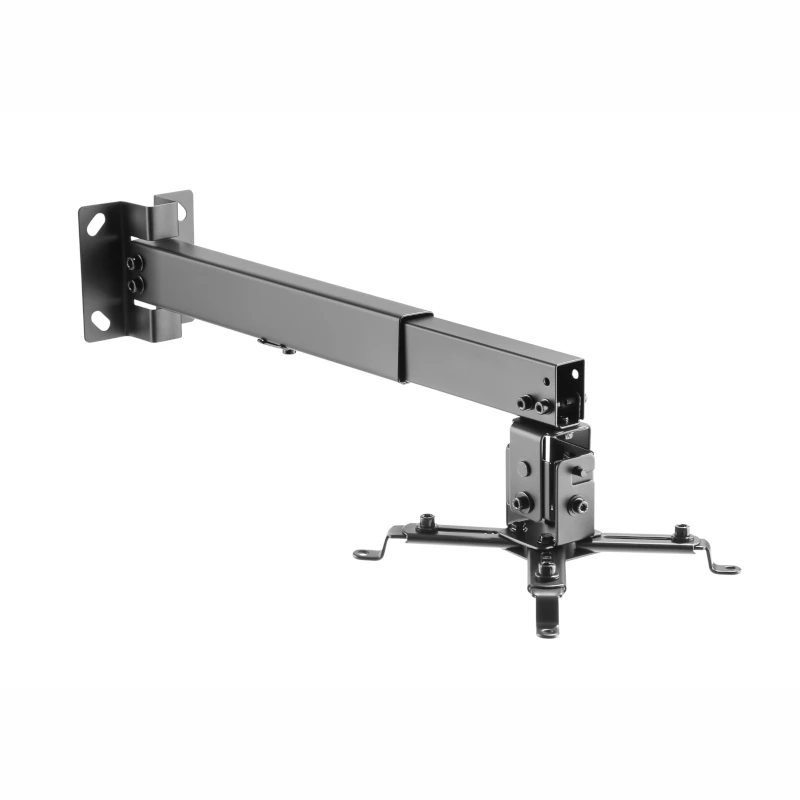

• Mounts to ceilings and walls
• Built-in cable management

Specifications

• Brand: WINX
• MPN: WX-BR108
• Material: Steel
• Surface finish: Powder coating
• Mounting range: 225 mm – 316 mm
• Max weight: 20 kg
• Installation: Solid wall, ceiling mounted
• Cable management: Built-in
• Tilt range: Up to 15° forward and back
• Swivel range: Up to 8° left and right
• Extension range: 430 mm – 650 mm
