Zebra CHG-ET5X-CBL2-01 ricambio/accessorio tablet porta di ricarica

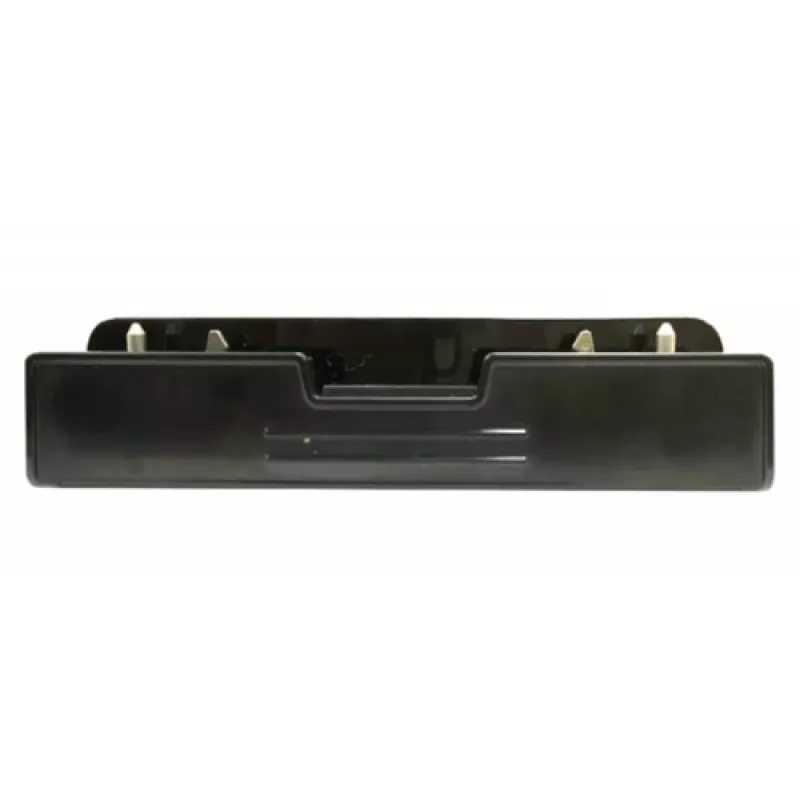

Rugged Charge Connector/Charge Dongle for Zebra ET5X (CHG-ET5X-CBL2-01) connects to the charging contacts on the bottom of ET5X tablets and supplies power via a barrel jack on the side of the dongle. The connector is compatible with ET5X units with or without rugged frames when used with the supplied shim for devices that do not have the Rugged Frame attached. This version improves mechanical and electrical contact stability and reliability compared with earlier CHG-ET5X-CBL1-01 designs, reducing misuse of cradles and improving charging performance. Not compatible with ET51 Integrated Scanner models.

Advantages

The CHG-ET5X-CBL2-01 offers increased stability of the charging connection, improved reliability of electrical contacts, and a design that helps prevent incorrect cradle usage. It includes a shim for compatibility with units without the Rugged Frame and features hardware improvements to both the mechanical and electrical design to enhance charging performance.

Suitable for

• Charging Zebra ET5X series tablets
• Use with ET5X units fitted with Rugged Frames
• Use with ET5X units without Rugged Frames when using the supplied shim

Key specifications

• Manufacturer: Zebra
• Model / MPN: CHG-ET5X-CBL2-01
• Type: Charge connector / charge dongle
• Colour: Black
• Connector: Charges via contacts on bottom of ET5X; barrel jack on dongle accepts power cord
• Compatibility notes: Not compatible with ET51 Integrated Scanner models; not compatible with older Rugged I/O connector versions sold prior to Dec 2018 (replace SG-ET5XRGIO1-01 with SG-ET5XRGIO2-01 if required)

How to use

Attach the charge connector to the bottom charging contacts of the ET5X tablet and plug the power cord into the barrel jack on the side of the dongle. If the tablet does not have the Rugged Frame installed, fit the supplied shim between the dongle and the device as instructed to ensure correct alignment and stable contact. Ensure the barrel jack power source meets the device power requirements and observe polarity and connector orientation when connecting.

Recommendations

Do not attempt to charge devices using the older Rugged I/O connector version sold prior to December 2018; if your device uses that connector, replace it with SG-ET5XRGIO2-01 to enable charging. Verify compatibility with ET51 Integrated Scanner models before use — this connector is not compatible with those models.
