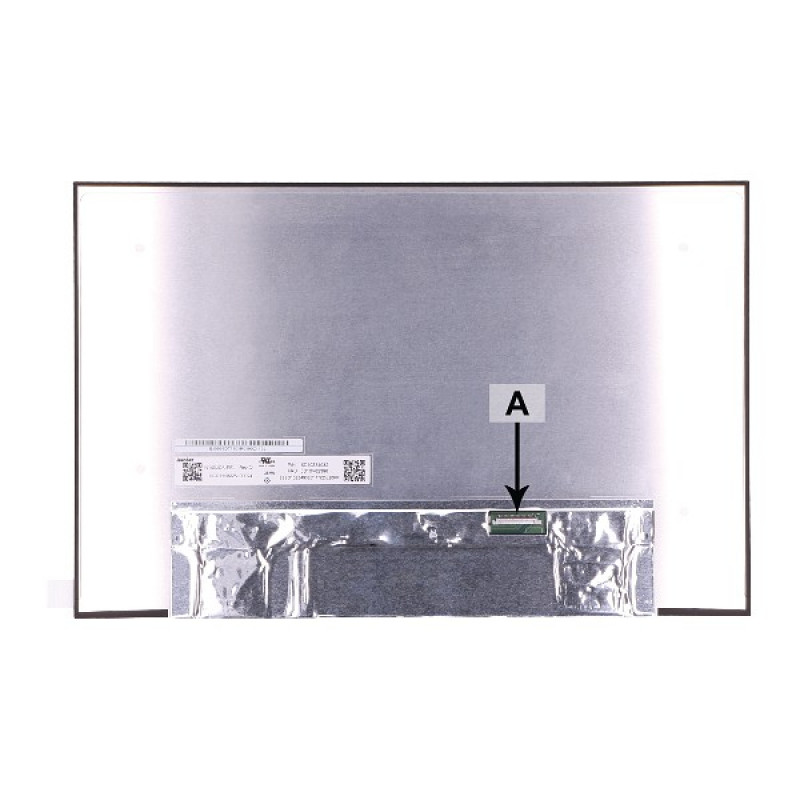

2-power 14,0" WUXGA 1920x1200 5MM eDP IPS (2P-N140JCA-EEK C1)

Technicians refurbishing ultrabooks and compact workstations need a display that delivers sharp text and accurate colour without adding bulk. This 2-POWER 14.0-inch panel slots directly into laptops with a 30-pin eDP interface, providing a 1920x1200 WUXGA resolution on an IPS matrix for wide 178° viewing angles. The 5 mm slim profile fits thin chassis, while the matte surface reduces glare in bright offices or on the go.

Key specifications

• Screen size: 14.0 inches
• Resolution: 1920 x 1200 (WUXGA)
• Aspect ratio: 16:10
• Panel type: IPS
• Backlight: LED
• Interface: eDP 30-pin
• Refresh rate: 60 Hz
• Brightness: 300 cd/m²
• Contrast ratio: 800:1
• Colour gamut: 45% NTSC
• Response time: 30 ms
• Viewing angles: 178° horizontal / 178° vertical
• Surface finish: Matte (anti-glare)
• Panel thickness: 5 mm

Why choose it

The IPS technology ensures consistent colour and clarity from almost any angle, making it ideal for collaborative work or presentations. The 16:10 aspect ratio offers extra vertical space compared to standard 16:9 panels, reducing scrolling in documents and web pages. With a typical brightness of 300 cd/m², the screen remains readable in well-lit environments, and the LED backlight provides energy efficiency and long life.

Ideal use cases

• Replacing a cracked or faulty 14.0-inch WUXGA laptop screen
• Upgrading a laptop with a lower-resolution or TN panel to IPS
• Refurbishing business ultrabooks and mobile workstations
• DIY repair projects for technicians and advanced users

Good to know

This panel is a universal replacement for laptops that support 14.0-inch WUXGA eDP 30-pin screens. Always verify the original panel's resolution, connector type, and mounting brackets before ordering. The matte coating helps reduce reflections, but it may slightly diffuse very fine details compared to glossy screens. Installation requires careful handling of the thin glass and flex cables; professional installation is recommended.
