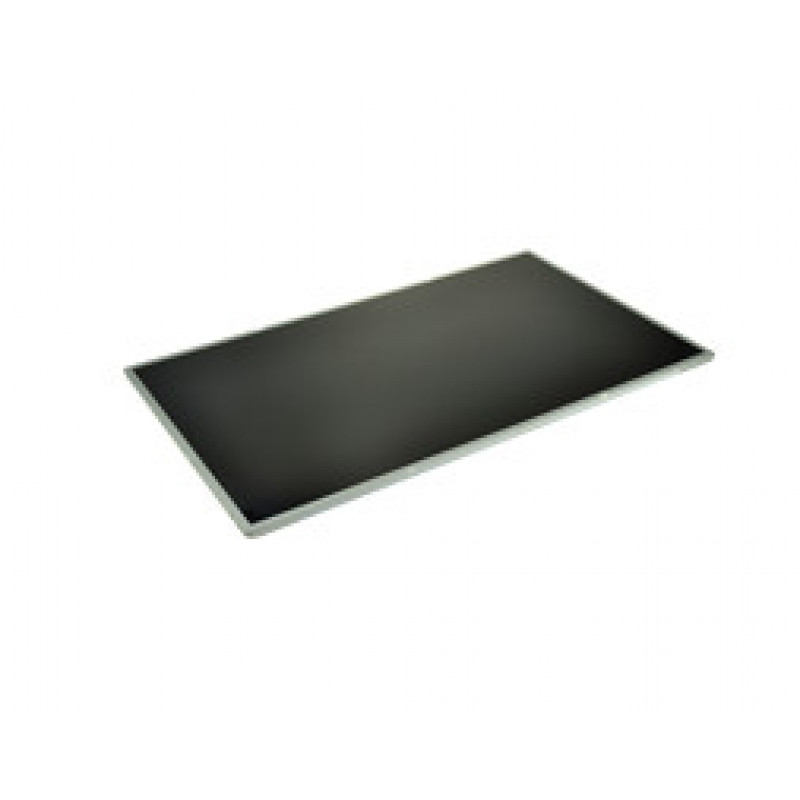

2-power 15.3 1920x1200 WUXGA AG IPS 300nit (2P-5D11P86189)

For technicians and IT professionals replacing a damaged or faulty laptop screen, this 15.3-inch display panel from 2-POWER delivers crisp, accurate visuals in a slim, energy-efficient form factor. The 1920x1200 WUXGA resolution and 16:10 aspect ratio provide extra vertical space for productivity tasks, while the IPS technology ensures consistent colors from wide viewing angles. The anti-glare coating reduces reflections, making it suitable for bright office environments or on-the-go use. With a brightness of 300 nits and a contrast ratio of 1000:1, text and images appear sharp and clear. The panel connects via a standard eDP 30-pin interface and is compatible with a wide range of laptops—always verify the part number before ordering.

Key specifications

• Display diagonal: 15.3 inches
• Resolution: 1920 x 1200 (WUXGA)
• Panel type: IPS (In-Plane Switching)
• Surface treatment: Anti-glare (matte)
• Brightness: 300 cd/m² (nits)
• Aspect ratio: 16:10
• Backlight type: LED
• Refresh rate: 60 Hz
• Viewing angle: 178° horizontal / 178° vertical
• Connector type: eDP 30-pin
• Pixel density: ~148 PPI
• Contrast ratio: 1000:1 (typical)
• Response time: 5 ms (typical)
• Color support: 16.7 million colors (8-bit)
• Color gamut: 45% NTSC (typical)
• Power consumption: 5 W (typical)

Why choose it

This panel combines high resolution with wide viewing angles and an anti-glare finish, making it ideal for work that demands color accuracy and comfort. The 16:10 aspect ratio offers more vertical space than traditional 16:9 screens, reducing scrolling in documents and web pages. LED backlighting ensures low power consumption and long lifespan. The eDP 30-pin connector is a common standard, simplifying installation in compatible laptops.

Ideal use cases

• Replacing a cracked or dim laptop screen in business notebooks
• Upgrading to a higher resolution display for improved productivity
• Use in bright environments where anti-glare properties are essential
• For graphic design, photo editing, and other color-sensitive tasks (within sRGB coverage)

Good to know

Before purchasing, confirm that your laptop's original screen has the same size, resolution, connector type, and mounting brackets. This panel is a bare LCD assembly without a digitizer or touch function. Installation requires careful handling; we recommend professional installation to avoid damage. The panel is compatible with various laptop brands, but always cross-check the exact part number with your device's service manual.
