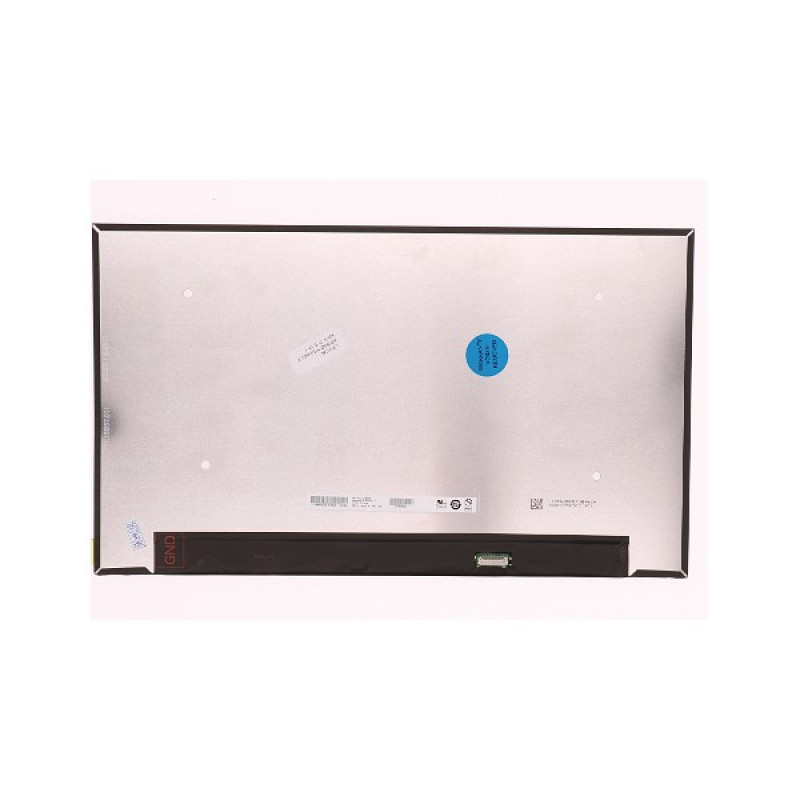

2-power 15,6" 1920x1080 FHD 0,4 mm Pitch (2P-01F7VM)

Laptop screens inevitably suffer from cracks, dead pixels, or backlight failure, and sourcing a compatible replacement can be a frustrating guessing game. The 2-Power 15.6" Full HD IPS LED Display Panel eliminates that uncertainty, delivering a precise, high-quality substitute engineered to restore your laptop's visual clarity and performance. With a native resolution of 1920 x 1080 and a fine 0.4 mm pixel pitch, this panel renders text, images, and video with crisp detail and vibrant colour.

Who is it for

This display is intended for technicians, IT professionals, and DIY enthusiasts replacing a faulty 15.6-inch FHD screen in a laptop. It suits anyone who needs a reliable, universal panel with a standard 30-pin eDP connector, whether for a single repair or bulk refurbishment. Its matte finish and wide viewing angles also make it ideal for users who work in bright environments or share their screen frequently.

Main features

• 15.6-inch IPS panel with Full HD 1920 x 1080 resolution for sharp, accurate visuals
• 0.4 mm pixel pitch and 45% NTSC colour gamut for balanced colour reproduction
• Matte (anti-glare) surface reduces reflections and eye strain in varied lighting
• Wide 85° viewing angles (left/right/up/down) maintain image quality from off-centre positions
• 30-pin eDP connector positioned bottom right for straightforward installation
• LED backlight with 250 cd/m² brightness and 800:1 contrast ratio for clear images
• Low power consumption of 3.5 W typical, helping to preserve battery life

Specifications

• Display size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS
• Surface: Matte (anti-glare)
• Refresh rate: 60 Hz
• Brightness: 250 cd/m²
• Contrast ratio: 800:1
• Colour gamut: 45% NTSC
• Viewing angles: 85/85/85/85 (L/R/U/D)
• Response time: 25 ms
• Data connector: 30-pin eDP (Embedded DisplayPort)
• Connector position: Bottom right
• Mounting type: Side brackets
• Power consumption: 3.5 W (typical)
• Operating temperature: 0°C to 50°C
• Compatibility: Universal for laptops requiring 15.6" FHD 30-pin eDP panels

Tips

Before ordering, confirm that your laptop uses a 30-pin eDP connector and that the original screen is a 15.6-inch FHD panel. Handle the display by its edges to avoid pressure marks, and disconnect the battery before installation. Test the panel before fully reassembling the laptop to ensure proper function.
