2-power 15,6" 1920x1080 FHD LED TN opaco (2P-N156HGA-EA3 C4)

When a laptop screen cracks or dims, technicians and IT departments need a reliable replacement that restores clarity without guesswork. The 2-POWER 15.6-inch panel delivers a crisp Full HD picture in a matte finish that cuts glare in offices, classrooms, and on the move. It fits a wide range of notebooks that use a standard 30-pin eDP connection, making it a practical spare part for repair shops and corporate fleets.

Key specifications

• Screen size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface finish: Matte (anti-glare)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² typical
• Response time: 5 ms typical
• Color gamut: 45% NTSC typical

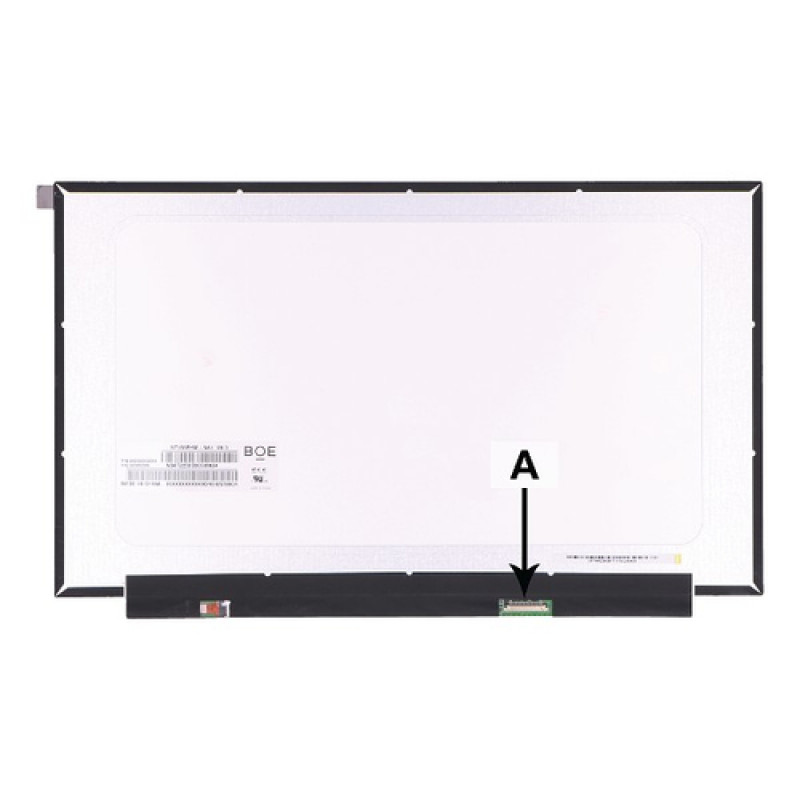

• Connector: 30-pin eDP (bottom right)
• Viewing angles: 45°/45°/20°/45° (L/R/U/D)
• Contrast ratio: 400:1 typical
• Power consumption: ~3.5 W
• Pixel density: 141 PPI
• Mounting: side brackets (typical)

Why choose it

This panel combines the two things that matter most in a replacement screen: compatibility and visual performance. The 30-pin eDP interface is common across many laptop brands, while the Full HD resolution ensures text and images remain sharp. The matte coating reduces reflections, so users can work comfortably under bright office lights or near windows. With a 60 Hz refresh rate and 5 ms response time, everyday tasks, video playback, and light gaming all look smooth.

Ideal use cases

• Replacing a damaged or faulty 15.6" laptop screen in a repair workshop
• Upgrading a compatible notebook from HD to Full HD for better clarity
• Stocking as a spare part for corporate IT helpdesks and educational institutions
• DIY repairs for users comfortable with laptop disassembly

Good to know

Before ordering, confirm that your laptop uses a 15.6-inch 30-pin eDP TN panel with a matte finish. The connector is typically located at the bottom right, but exact mounting hole positions can vary by laptop model. The panel includes standard side brackets, but you may need to transfer or adjust brackets from your original screen. Installation requires careful handling of the thin display cable and bezel clips. For best results, test the panel before final assembly.
