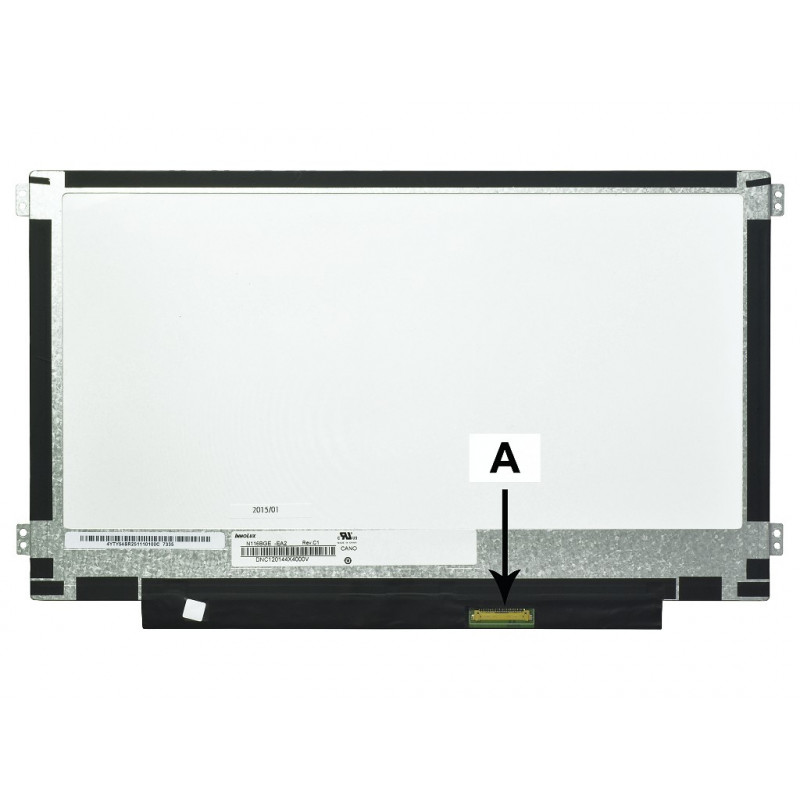

2-power 2P-5D11D03909 - 29,5 cm (11,6 inch) - WXGA

A cracked or dim laptop display can halt productivity, but replacing it doesn't have to be complicated. The 2-POWER 2P-5D11D03909 is a direct-fit 11.6-inch WXGA LED screen engineered to restore crisp, bright visuals to compatible notebooks. With its standard 30-pin eDP connector and side mounting brackets, this panel simplifies repairs for technicians and DIY users alike.

Who is it for

This screen is ideal for IT professionals, repair shops, and individual laptop owners who need a reliable, cost-effective display replacement. It suits users of compact 11.6-inch laptops commonly used for travel, education, or everyday computing, where portability and clear viewing are essential.

Main features

• 11.6-inch diagonal (29.5 cm) with WXGA resolution (1366 x 768) for sharp text and images.
• LED backlighting delivers energy-efficient, consistent brightness (200-220 nits).
• Glossy TN panel offers vibrant colors and fast response (8-12 ms) for smooth motion.
• 30-pin eDP connector ensures broad compatibility with modern laptop motherboards.
• Side mounting brackets included for straightforward installation.
• Supports 262K colors (6-bit) for accurate color representation.

Specifications

• Screen size: 11.6 inches (29.5 cm)
• Resolution: WXGA (1366 x 768)
• Aspect ratio: 16:9
• Backlight type: LED
• Panel type: TN (Twisted Nematic)
• Surface type: Glossy
• Connector type: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 200-220 cd/m²
• Color support: 262K colors (6-bit)
• Response time: 8-12 ms
• Viewing angle: 45/45/15/35 degrees (H/V)
• Contrast ratio: 300:1 - 500:1
• Display technology: Active Matrix TFT LCD
• Touchscreen: No
• Mounting brackets: Side brackets included

Tips

Before ordering, verify your laptop's screen size, resolution, and connector type. Handle the panel by its edges to avoid fingerprints or pressure damage. Use an anti-static wrist strap during installation to prevent electrostatic discharge. Test the screen before final assembly to ensure all connections are secure.
