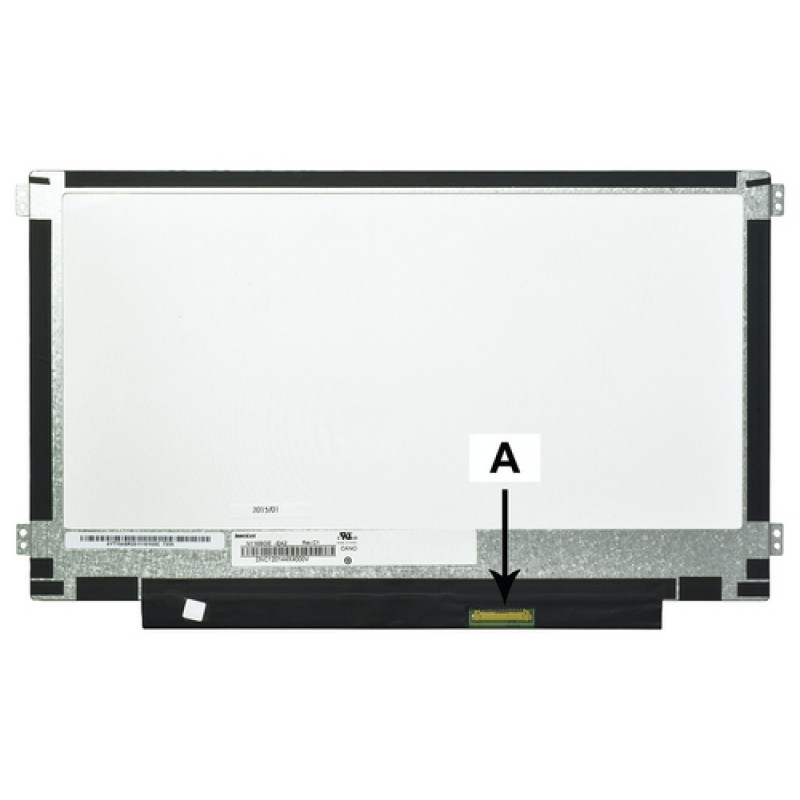

2-power 2P-B116XTN02.1 - display - 29,5 cm (11,6") - WXGA

Unlike generic replacement panels that often compromise on colour or viewing stability, the 2-POWER 2P-B116XTN02.1 is built around the same AU Optronics B116XTN02.1 specification used by many 11.6-inch notebooks. This means you get a native 1366 x 768 WXGA HD resolution, a bright LED backlight and a glossy finish that keeps text crisp and media vivid — without the guesswork of an off-brand panel.

Highlights

• Exact 11.6-inch (29.5 cm) diagonal with 16:9 aspect ratio for a true widescreen experience
• Native WXGA HD 1366 x 768 resolution — ideal for documents, web browsing and video
• LED backlight delivers consistent brightness up to 200 cd/m² while using less power
• Glossy (glare) surface enhances perceived contrast and colour saturation
• 40-pin LVDS connector matches the original AUO B116XTN02.1 interface
• TN panel with 8 ms typical response time reduces motion blur in everyday use
• Compact and lightweight design for easy installation in compatible laptops

In daily use

Whether you are refurbishing a school laptop, repairing a family notebook or replacing a cracked screen on a business ultraportable, this panel restores the original visual character of the machine. The 60 Hz refresh rate and 500:1 contrast ratio keep scrolling smooth and text legible, while the 90° horizontal and 70° vertical viewing angles are sufficient for single-user productivity. Because it is a direct replacement for the AUO B116XTN02.1, you can expect the same mounting points, connector position and cable routing as the factory part.

Full specifications

• Brand: 2-POWER
• Model: 2P-B116XTN02.1
• Display diagonal: 11.6 inches (29.5 cm)
• Native resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface finish: Glossy (Glare)
• Connector: 40-pin LVDS
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² (typical)
• Contrast ratio: 500:1 (typical)
• Response time: 8 ms (typical)
• Viewing angles: 90° horizontal / 70° vertical
• Colour gamut: 45% NTSC
• Original panel manufacturer: AU Optronics (AUO)
• Condition: New
• Compatibility: Laptops using AUO B116XTN02.1 panels

Final note

For a dependable, colour-accurate replacement that matches the original AUO specification, the 2-POWER 2P-B116XTN02.1 offers a straightforward path back to a fully functional display — without paying for features your laptop never had.
