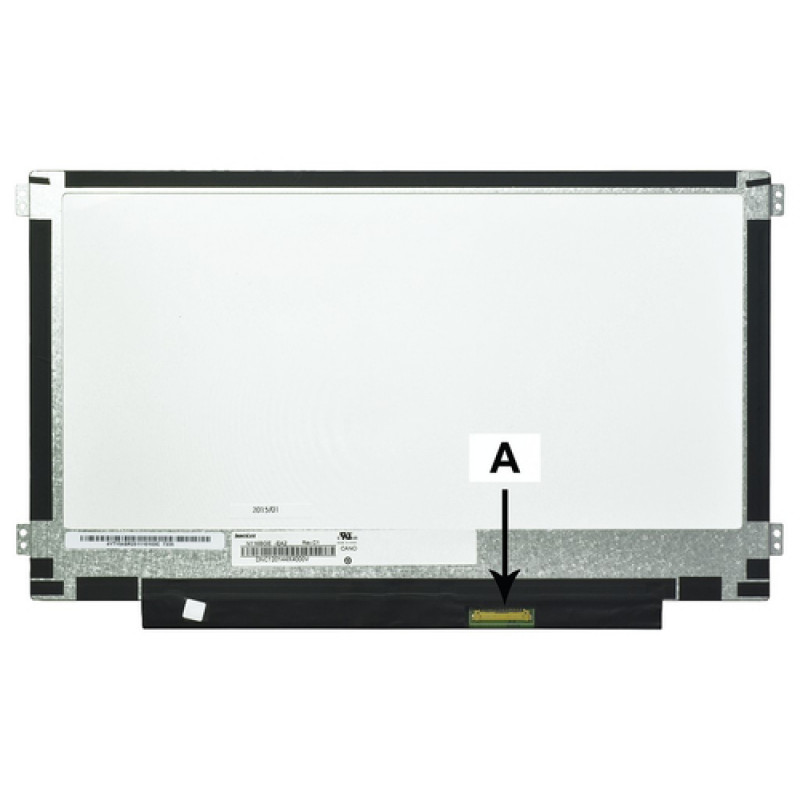

2-power 2P-D3KWT - display - 29,5 cm (11,6") - WXGA

Laptop display panel delivering sharp WXGA resolution on an 11.6-inch LED-backlit screen. The 30-pin eDP connector ensures a direct, reliable link to compatible systems, while the matte finish reduces glare for comfortable viewing in bright environments.

Advantages

This panel combines a 1366 x 768 resolution with a 16:9 aspect ratio, ideal for everyday productivity and multimedia. The LED backlight offers consistent brightness and energy efficiency, and the anti-glare surface helps minimize reflections. With a 60 Hz refresh rate and 8 ms response time, it provides smooth visuals for typical laptop use.

Suitable for

• Replacing a faulty or damaged 11.6-inch laptop screen
• Upgrading to a matte display for reduced eye strain
• DIY repair projects requiring a 30-pin eDP connection
• Systems needing a standard TN panel with 200 cd/m² brightness

Key specifications

• Display size: 11.6 inches (29.5 cm)
• Resolution: WXGA (1366 x 768)
• Connector: 30-pin eDP
• Backlight: LED
• Surface: Matte (anti-glare)
• Refresh rate: 60 Hz
• Response time: 8 ms
• Brightness: 200 cd/m²
• Viewing angles: 45°/45°/20°/45° (L/R/U/D)
• Color gamut: 45% NTSC
• Mounting: Side brackets

Recommendations

Verify your laptop's screen size, resolution, and connector type before ordering. This panel is compatible with many 11.6-inch laptops using a 30-pin eDP interface, but professional installation is recommended for best results.
