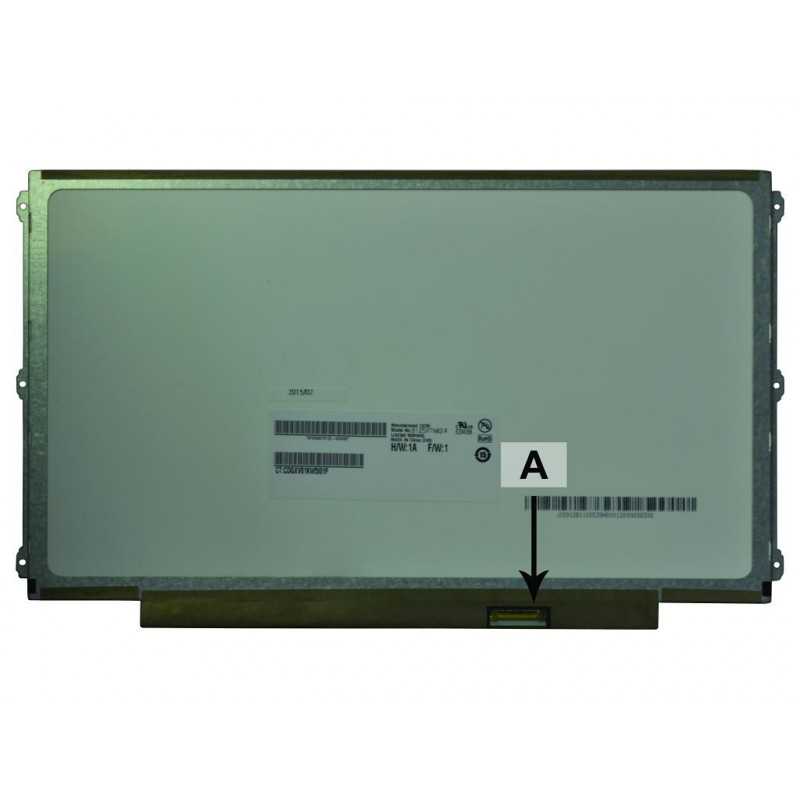

2-power 2P-LP125WH2(TP)(M1) - display - 31,8 cm (12.5") - WXGA

Field technicians and mobile professionals often need a reliable display replacement for their laptops in the field. The 2-POWER 2P-LP125WH2(TP)(M1) is a 12.5-inch WXGA LCD panel with a glossy finish and capacitive multi-touch support, making it suitable for interactive applications in point-of-sale terminals, medical carts, and industrial tablets. Its LED backlight delivers consistent brightness, while the eDP 30-pin connector ensures straightforward integration with compatible systems.

Key specifications

• Display size: 12.5 inches (31.8 cm)
• Native resolution: 1366 x 768 (WXGA)
• Panel type: TN with LED backlight
• Touchscreen: Capacitive multi-touch
• Connector: 30-pin eDP
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Response time: 10 ms
• Color gamut: 45% NTSC
• Mounting: Side brackets

Why choose it

This panel combines touch capability with a compact form factor, ideal for space-constrained environments. The glossy surface enhances color vibrancy, and the LED backlight offers energy efficiency. With a 60 Hz refresh rate and 16:9 aspect ratio, it handles everyday productivity and interactive tasks smoothly.

Ideal use cases

• Replacing a faulty laptop screen in ultraportable notebooks
• Upgrading to a touch-enabled display for kiosks or POS systems
• Building custom portable monitors for field diagnostics
• Integrating into medical or industrial equipment requiring multi-touch input

Good to know

The panel is new and comes with side brackets for easy mounting. It supports eDP signaling, which is common in modern laptops. Ensure your system's BIOS and chipset support touch over eDP before installation. No cables or additional accessories are included.
