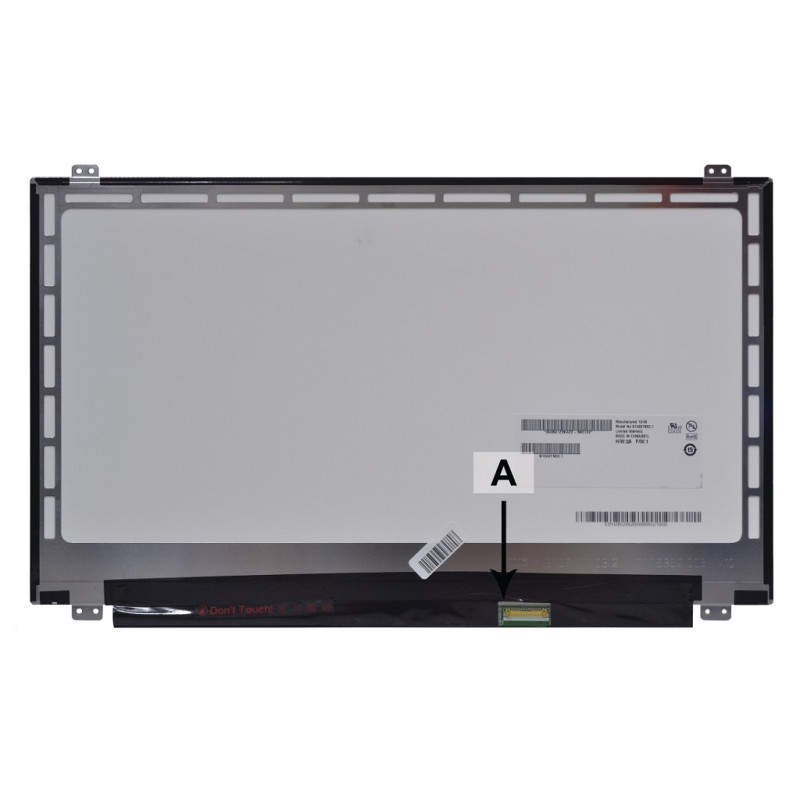

2-power 2P-LP156WHB-TPA2 - 39,6 cm (15,6") - WXGA

A dim, cracked, or dead laptop screen turns a perfectly good machine into a frustrating paperweight. The 2-POWER 2P-LP156WHB-TPA2 is a direct replacement 15.6-inch WXGA LED LCD panel that restores crisp, bright visuals to compatible laptops. Whether you’re repairing a work notebook, a student laptop, or a home media device, this screen brings back the clarity you need for documents, web browsing, and video playback.

Who is it for

This panel is ideal for IT technicians, repair shops, and DIY enthusiasts who need a reliable, cost-effective screen replacement. It fits a wide range of 15.6-inch laptops that use a standard 40-pin LVDS connection and side mounting brackets. If your original screen has a resolution of 1366 x 768 and a glossy finish, this is likely the correct match.

Main features

• 15.6-inch diagonal display with WXGA (1366 x 768) resolution for sharp text and images
• LED backlighting provides energy efficiency and consistent brightness up to 220 cd/m²
• Glossy TN panel with a 16:9 aspect ratio, perfect for everyday computing and multimedia
• Standard 40-pin LVDS connector located at the bottom left (when viewed from back)
• Side mounting brackets for easy installation into compatible laptop chassis
• Fast 8 ms response time reduces motion blur in videos and casual gaming
• Wide compatibility with many 15.6" WXGA laptops using 40-pin LVDS interface

Specifications

• Brand: 2-POWER
• Model: 2P-LP156WHB-TPA2
• Screen Size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect Ratio: 16:9
• Display Technology: LCD with LED backlight
• Panel Type: TN (Twisted Nematic)
• Surface Finish: Glossy
• Connector Type: 40-pin LVDS
• Connector Position: Bottom Left (viewed from back)
• Refresh Rate: 60 Hz
• Brightness: 220 cd/m² (nits)
• Contrast Ratio: 500:1
• Response Time: 8 ms
• Viewing Angle: 45°/45°/20°/40° (Left/Right/Up/Down)
• Color Support: 262,144 colors (6-bit)
• Power Consumption: 3.5 W (Typical)
• Mounting Type: Side Brackets
• Compatibility: Universal 15.6" WXGA LVDS 40-pin compatible laptops

Tips

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting bracket position. This panel is not compatible with 30-pin or eDP connections. Handle the screen by its edges to avoid fingerprints or pressure damage. Test the panel before final assembly to ensure proper function.
