2-power 2P-LTN156AT05-H01 - display - 39,6 cm (15,6) - WXGA

A cracked or dim laptop display can turn a perfectly good machine into a frustrating paperweight. The 2-Power 2P-LTN156AT05-H01 replacement panel restores your notebook’s visual output with a bright, clear 15.6-inch WXGA screen. Engineered as a direct substitute for the Samsung LTN156AT05-H01, this LED-backlit TN panel delivers dependable performance for everyday computing, office tasks, and media consumption.

Who is it for

This screen is ideal for IT technicians, repair shops, and individual users who need a cost-effective way to bring a laptop back to life. It fits a wide range of 15.6-inch notebooks that originally shipped with a 40-pin LVDS interface and a bottom-left connector position. If your laptop’s display is cracked, has dead pixels, or suffers from backlight failure, this panel is a practical, budget-friendly fix.

Main features

• 15.6-inch diagonal with WXGA resolution (1366 x 768) for sharp, readable text and images
• LED backlighting for lower power consumption and consistent brightness
• Glossy surface finish enhances color vibrancy and contrast for multimedia
• TN panel technology offers fast response times, suitable for general use

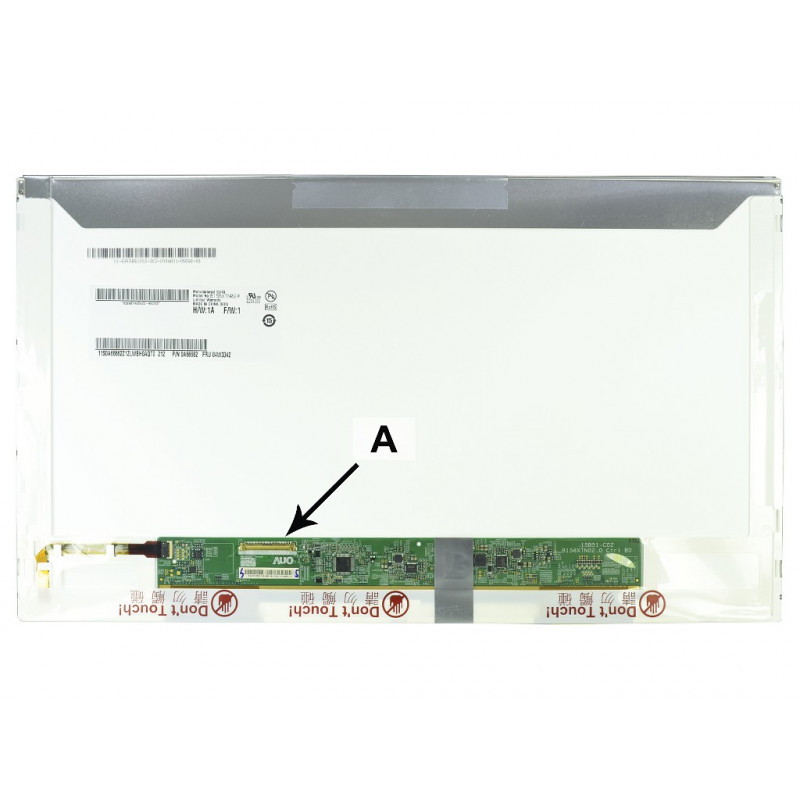

• 40-pin LVDS connector positioned bottom-left (when facing the back) for straightforward installation
• Compatible with Samsung LTN156AT05-H01 and equivalent models

Specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: WXGA (1366 x 768)
• Aspect ratio: 16:9
• Backlight type: LED
• Panel type: TN (Twisted Nematic)
• Surface finish: Glossy
• Data connector: 40-pin LVDS
• Connector position: Bottom left (when facing the back of the screen)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² (typical)
• Contrast ratio: 500:1 (typical)
• Response time: 8 ms (typical)
• Color support: 262K colors (6-bit)
• Viewing angles: 45° left, 45° right, 20° up, 40° down
• Technology: TFT active matrix
• Condition: New

Tips

Before ordering, confirm your laptop’s exact screen model and connector type. The 40-pin LVDS interface and bottom-left connector position are critical for compatibility. Handle the panel by its edges and avoid touching the surface to prevent fingerprints or damage. Use an anti-static workspace and disconnect the battery before installation. If you’re unsure about fitment, consult your laptop’s service manual or a professional technician.
