2-power 2P-LTN156AT309-H01 - display - 39,6 cm (15.6") - WXGA

A cracked or dim laptop display can halt productivity and strain your eyes. The 2-POWER 2P-LTN156AT309-H01 replacement panel restores your 15.6-inch notebook to crisp, bright clarity, eliminating the need for an expensive new machine. Engineered as a direct substitute for Samsung LTN156AT309 and equivalent panels, it brings back reliable visuals for everyday computing.

Who is it for

This screen is ideal for students, office workers, and home users who need a cost-effective fix for a damaged laptop display. It suits technicians and DIY upgraders comfortable with opening a laptop and replacing the panel. If your original screen uses a 40-pin LVDS connector and matches the 15.6-inch WXGA format, this panel is a straightforward swap.

Main features

• 15.6-inch TN panel with WXGA HD resolution (1366 x 768) for sharp text and images
• LED backlight with 200 cd/m² typical brightness for comfortable indoor viewing
• Glossy surface finish enhances colour vibrancy and contrast

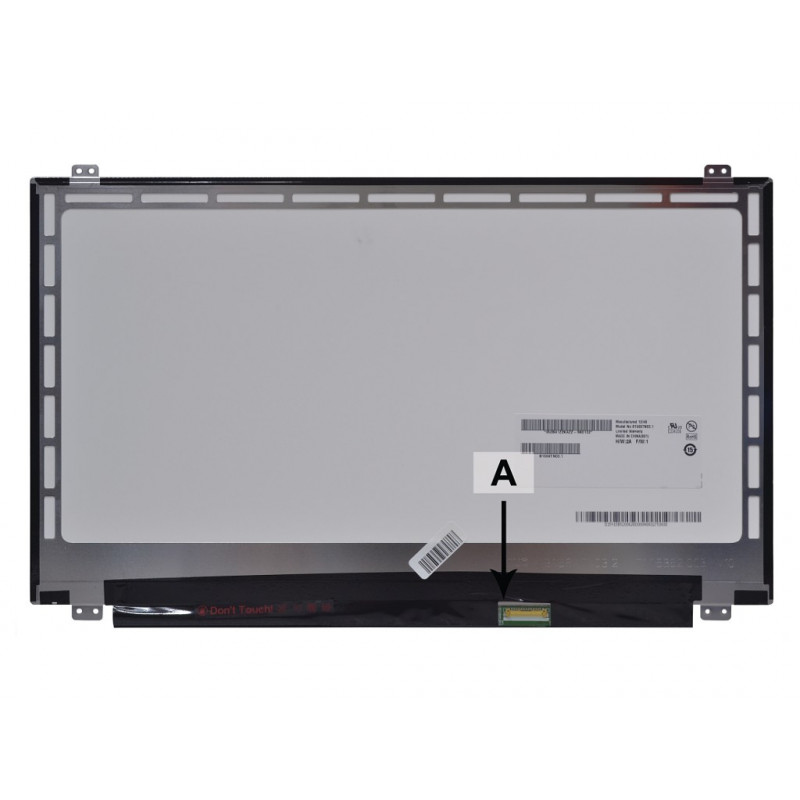

• 40-pin LVDS connector ensures compatibility with many mainstream laptops
• 16:9 aspect ratio matches widescreen video and productivity layouts
• 60 Hz refresh rate and 8 ms response time for smooth motion without ghosting
• 262,144 colours (6-bit) deliver accurate tones for documents, photos, and video

Specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: WXGA HD (1366 x 768)
• Aspect ratio: 16:9
• Backlight type: LED
• Surface finish: Glossy
• Connector type: 40-pin LVDS
• Panel technology: TN (Twisted Nematic)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² (typical)
• Contrast ratio: 500:1 (typical)
• Response time: 8 ms (typical)
• Viewing angles: 90° horizontal / 60° vertical (45/45/20/40 L/R/U/D)
• Colour support: 262,144 colours (6-bit)
• Compatibility: Samsung LTN156AT309 or equivalent panels

Tips

Before ordering, verify your laptop's original panel part number and connector type. Handle the screen by its edges and avoid touching the surface to prevent fingerprints or damage. Work in a static-free environment and disconnect the battery before installation. Test the panel before fully reassembling the laptop to confirm proper function.
