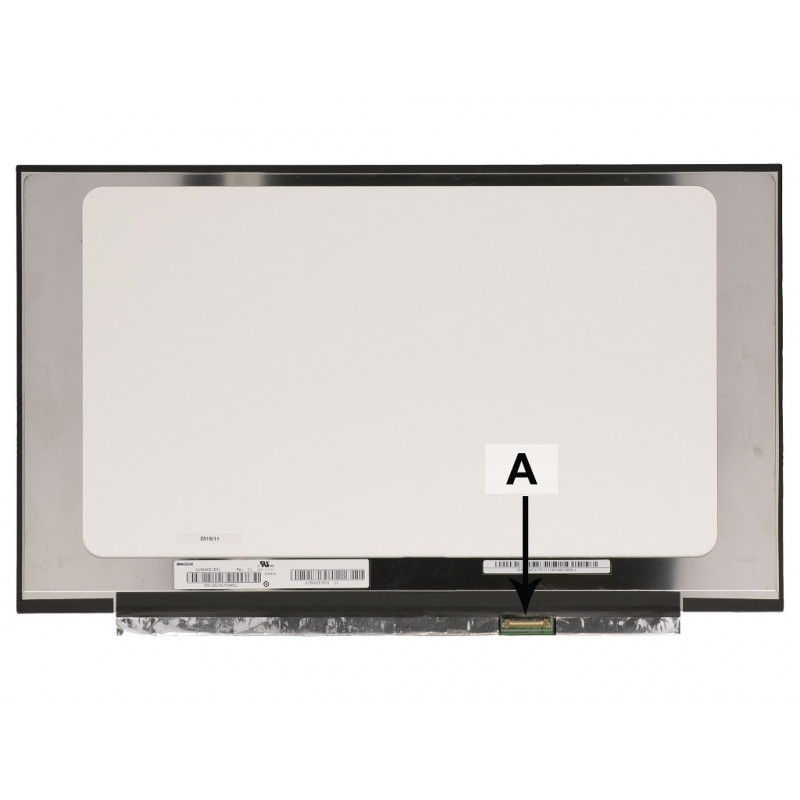

2-power 2P-M156NWF7 R3 - 39,6 cm (15,6")

When a laptop screen cracks or fades, technicians and DIY repairers need a reliable replacement that restores clarity without breaking the bank. The 2-POWER 2P-M156NWF7 R3 is a 15.6-inch Full HD IPS panel built for exactly that job—swapping into compatible notebooks to bring back sharp, vibrant visuals. With a 30-pin eDP connector and LED backlight, it matches many mainstream laptops, making it a practical choice for refurbishers, IT departments, and home users tackling a screen replacement.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching) for wide viewing angles
• Backlight: LED, energy-efficient and long-lasting
• Surface finish: Matte (anti-glare) to reduce reflections
• Aspect ratio: 16:9 widescreen
• Connector: 30-pin eDP (Embedded DisplayPort)
• Refresh rate: 60 Hz
• Brightness: 250 cd/m² typical
• Response time: 30 ms typical
• Viewing angles: 85° horizontal, 85° vertical
• Color gamut: 45% NTSC typical
• Contrast ratio: 700:1 typical
• Display technology: TFT Active Matrix LCD
• Condition: New

Why choose it

This panel delivers the same visual quality as many original screens, with an IPS matrix that keeps colors accurate even from off-center positions. The matte coating cuts down on glare, so it works well in bright offices or near windows. Because it uses a standard 30-pin eDP interface, installation is straightforward for anyone with basic laptop repair skills. And as a brand-new part, you avoid the risk of dead pixels or backlight bleed that often comes with used pulls.

Ideal use cases

• Replacing a broken or dim laptop screen in compatible 15.6" Full HD models
• Upgrading a lower-resolution panel to Full HD for sharper text and video
• Refurbishing used laptops for resale or donation
• Keeping a spare panel on hand for quick repairs in IT support environments

Good to know

Before ordering, verify that your laptop uses a 30-pin eDP connector and supports a 15.6-inch Full HD IPS panel with these dimensions. The panel is sold as a bare screen without mounting brackets or cables—reuse your existing hardware. Handle with care: LCD panels are fragile, especially at the edges and connector. Store in a dry, static-safe environment until installation.
