2-power 2P-NT156FHM-N62 V8.1 - display - 39,6 cm (15,6") - Full HD

A cracked or dim laptop screen can turn a perfectly good machine into a paperweight. The 2-Power 2P-NT156FHM-N62 V8.1 replacement panel restores your 15.6-inch laptop to crisp Full HD clarity, eliminating the frustration of a broken display without the cost of a new device.

Who is it for

This panel is ideal for technicians, IT departments, and DIY repairers who need a reliable, cost-effective screen replacement for laptops that use a 15.6" 30-pin eDP Full HD TN panel. It suits users who value straightforward installation and dependable performance for everyday computing tasks.

Main features

• 15.6-inch (39.6 cm) Full HD (1920 x 1080) resolution for sharp, detailed visuals
• TN panel with WLED backlight delivers bright, energy-efficient performance
• Anti-glare surface reduces reflections for comfortable viewing in varied lighting

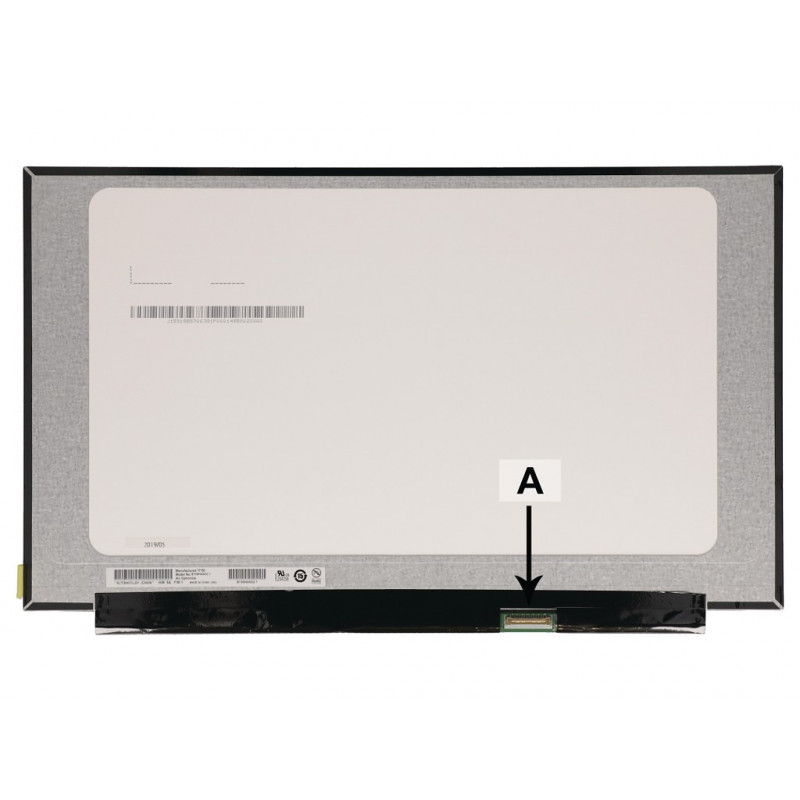

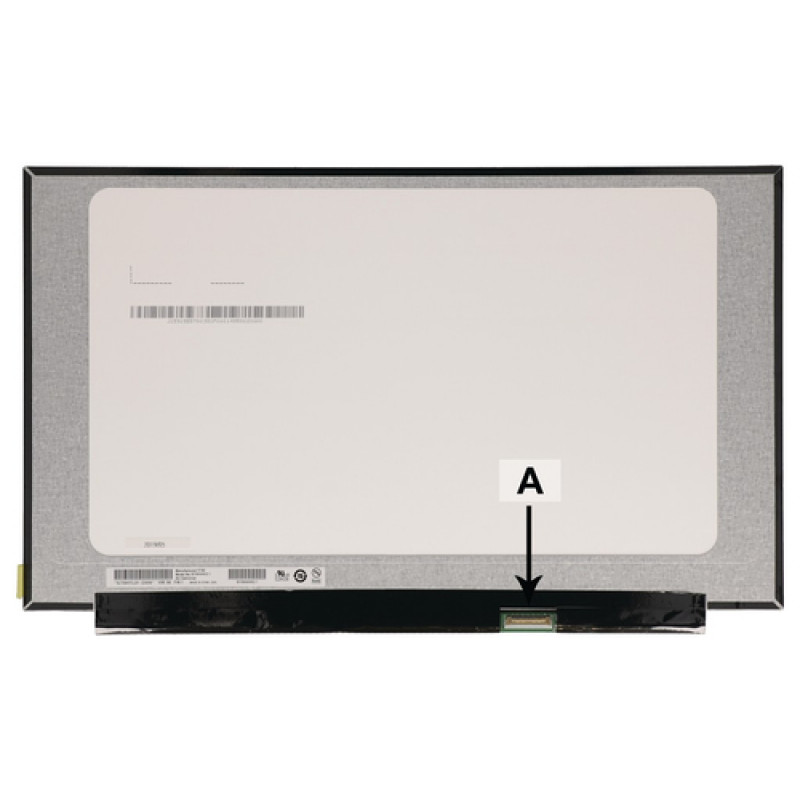

• 30-pin eDP connector positioned bottom right (viewed from back) for easy integration
• 60 Hz refresh rate and 8 ms response time ensure smooth motion for typical use
• Wide compatibility with laptops requiring a standard 15.6" Full HD 30-pin eDP panel

Specifications

• Brand: 2-Power
• Model: 2P-NT156FHM-N62 V8.1
• Panel manufacturer: Innolux (NT156FHM-N62)
• Display size: 15.6 inches (39.6 cm)
• Resolution: Full HD (1920 x 1080)
• Panel type: TN (Twisted Nematic)
• Aspect ratio: 16:9
• Backlight technology: WLED (White LED)
• Surface treatment: Anti-glare
• Data connector: 30-pin eDP (Embedded DisplayPort)
• Connector position: Bottom right (when viewed from the back)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² (Typ.)
• Contrast ratio: 400:1 (Typ.)
• Response time: 8 ms (Typ.)
• Color gamut: 45% NTSC
• Viewing angle (H/V): 90° / 50° (45/45/20/45 L/R/U/D)

Tips

Before ordering, confirm your laptop's original panel part number or connector type to ensure compatibility. Handle the panel by its edges and use proper ESD precautions during installation. Test the screen before final assembly to verify functionality.
